Nissan Murano: Front Seat Belt / Seat Belt Height Adjuster

Nissan Murano (Z52) 2015-2024 Service Manual / Restraints / Seat Belt :: Removal and Installation / Front Seat Belt / Seat Belt Height Adjuster

Removal and Installation

REMOVAL

Remove center pillar upper finisher. Refer to Removal and Installation.

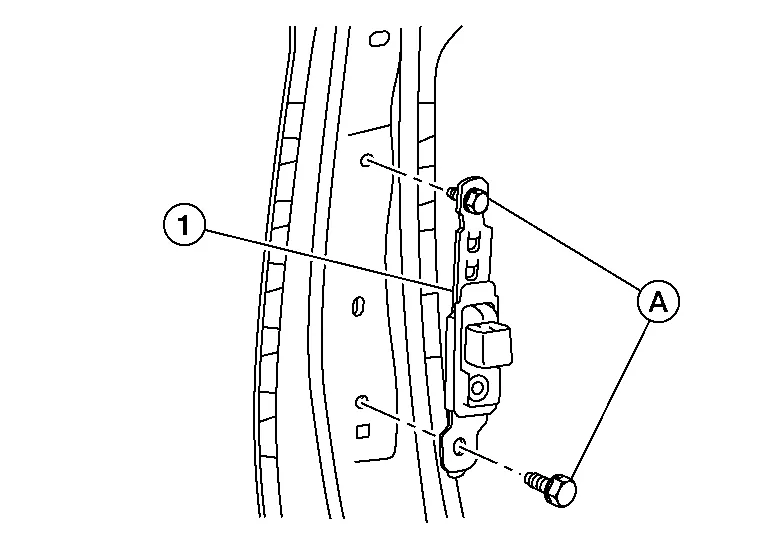

Remove seat belt height adjuster bolts (A) and seat belt height adjuster (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure seat belt height adjuster is locked in lowest position and is aligned with the center pillar upper finisher opening during installation.

Tighten D-ring anchor bolt and seat belt height adjuster bolts to specification. Refer to Exploded View.

Make sure both D-ring anchor and seat belt height adjuster operate freely.

Always perform an inspection after repair to make sure system is functioning within specifications. Refer to Inspection.
