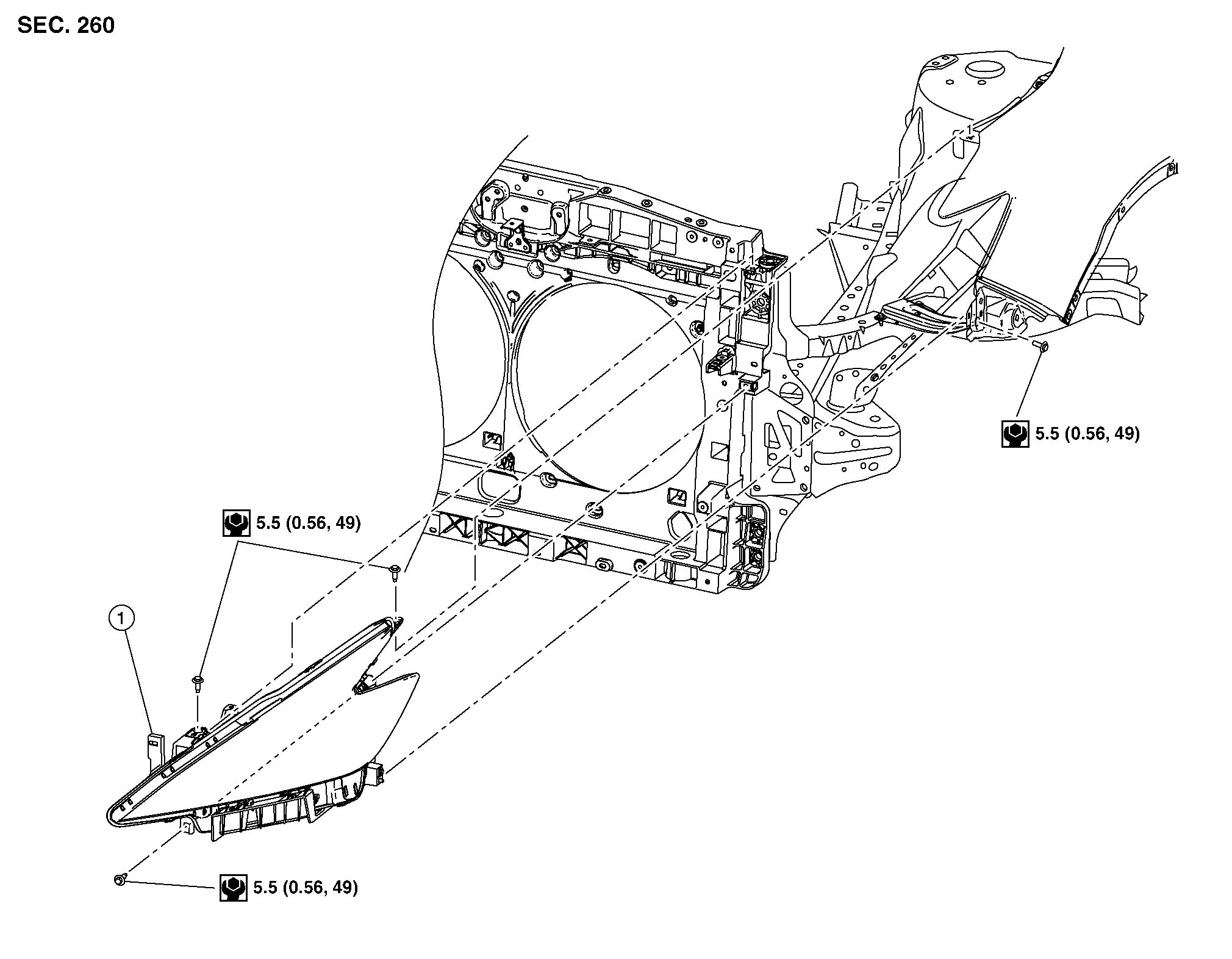

Exploded View

Front combination lamp

Removal and Installation

REMOVAL

Remove front bumper fascia. Refer to Removal and Installation.

Remove front combination lamp bolts.

Pull front combination lamp forward.

Disconnect harness connectors from front combination lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After installation, perform headlamp aiming adjustment. Refer to Inspection.

Bulb Replacement

HEADLAMP BULB

The headlamp bulb is LED and not serviced separately. Refer to Removal and Installation.

SIDE MARKER LAMP BULB

The side marker lamp bulb is LED and not serviced separately. Refer to Removal and Installation.

TURN SIGNAL LAMP BULB

The turn signal lamp bulb is LED and not serviced separately. Refer to Removal and Installation.

Front Fog Lamp
