Nissan Murano: Three-point type seat belt with retractor / Fastening the seat belts

Nissan Murano 2015-2022 Owners Manual / Safety—Seats, seat belts and supplemental restraint system / Seat belts / Three-point type seat belt with retractor / Fastening the seat belts

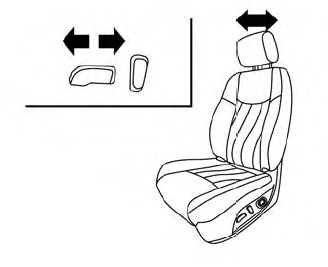

  1. Adjust the seat. For additional information, refer to “Seats” in this section.

    Nissan Murano. Fastening the seat belts

    Nissan Murano. Fastening the seat belts

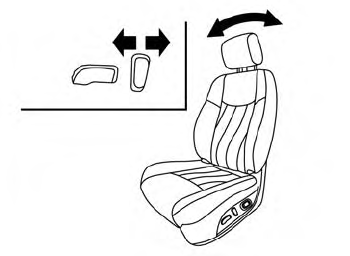

    Power front seat (if so equipped)

  2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle Nissan Murano. Fastening the seat belts until you hear and feel the latch engage.
    • The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the seat belt to move and allows you some freedom of movement in the seat.
    • If the seat belt cannot be pulled from its fully retracted position, firmly pull the belt and release it. Then smoothly pull the belt out of the retractor.

    Nissan Murano. Fastening the seat belts

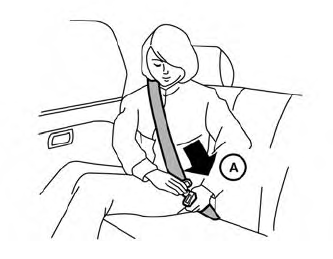

  3. Position the lap belt portion low and snug on the hips Nissan Murano. Fastening the seat belts as shown.

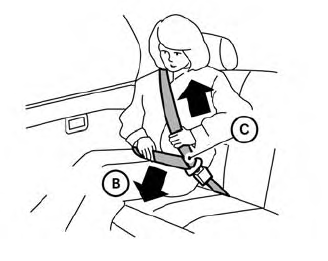

  4. Pull the shoulder belt portion toward the retractor to take up extra slack Nissan Murano. Fastening the seat belts . Be sure the shoulder belt is routed over your shoulder and across your chest.

    Nissan Murano. Fastening the seat belts

The front passenger seat and the rear seating positions’ three-point seat belts have two modes of operation:

  • Emergency Locking Retractor (ELR)
  • Automatic Locking Retractor (ALR)

The ELR mode allows the seat belt to extend and retract to allow the driver and passengers some freedom of movement in the seat. The ELR locks the seat belt when the vehicle slows down rapidly or during certain impacts.

The ALR mode (child restraint mode) locks the seat belt for child restraint installation.

When the ALR mode is activated, the seat belt cannot be extended again until the seat belt tongue is detached from the buckle and fully retracted. The seat belt returns to the ELR mode after the seat belt fully retracts. For additional information, refer to “Child restraints” in this section.

The ALR mode should be used only for child restraint installation. During normal seat belt use by an occupant, the ALR mode should not be activated. If it is activated, itmaycause uncomfortable seat belt tension. It can also change the operation of the front passenger air bag. For additional information, refer to “Front passenger air bag and status light” in this section.

WARNING

When fastening the seat belts, be certain that the seatbacks are completely secured in the latched position. If they are not completely secured,passengers maybe injured in an accident or sudden stop

    Three-point type seat belt with retractor

    WARNING Every person who drives or rides in this vehicle should use a seat belt at all times. Children should be in the rear seats and in an appropriate restraint...

    Unfastening the seat belts. Checking seat belt operation

    Unfastening the seat belts To unfasten the seat belt, press the button on the buckle . The seat belt automatically retracts. Checking seat belt operation Seat belt retractors are designed to lock seat belt movement by two separate methods: When the seat belt is pulled quickly from the retractor When the vehicle slows down rapidly To increase your confidence in the seat belts, check the operation as follows: Grasp the shoulder belt and pull forward quickly...
