Nissan Murano: Removal and Installation / Steering Angle Sensor

Nissan Murano (Z52) 2015-2024 Service Manual / Brakes / Brake Control System :: Vdc/tcs/abs / Removal and Installation / Steering Angle Sensor

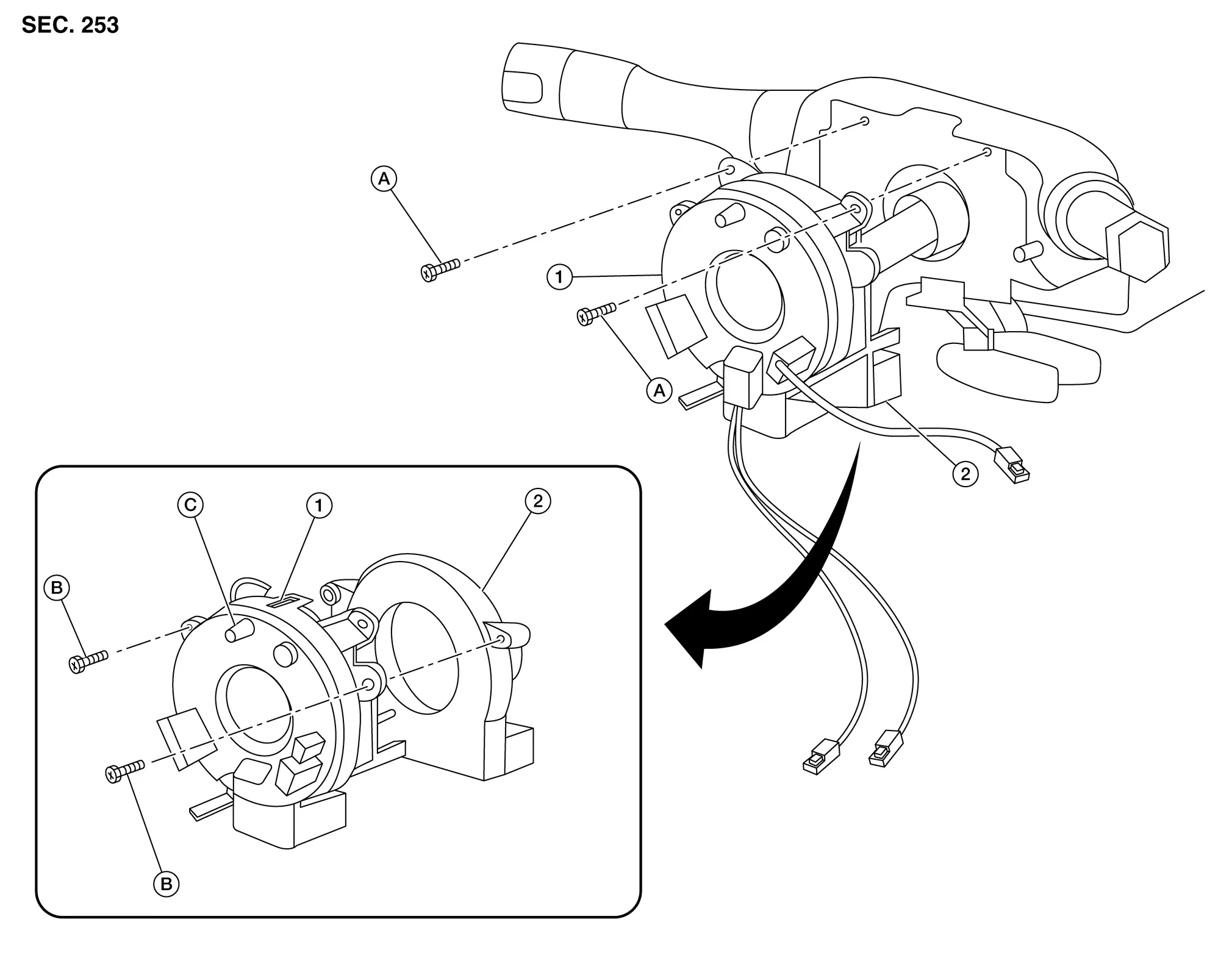

Exploded View

1.	Spiral cable	2.	Steering angle sensor	A.	Spiral cable screws
B.	Steering angle sensor screws	C.	Locating pin

Removal and Installation

To remove and install the steering angle sensor, remove and install the spiral cable. Refer to Removal and Installation.
