Nissan Murano: Exterior :: Removal and Installation / Door Sash Molding

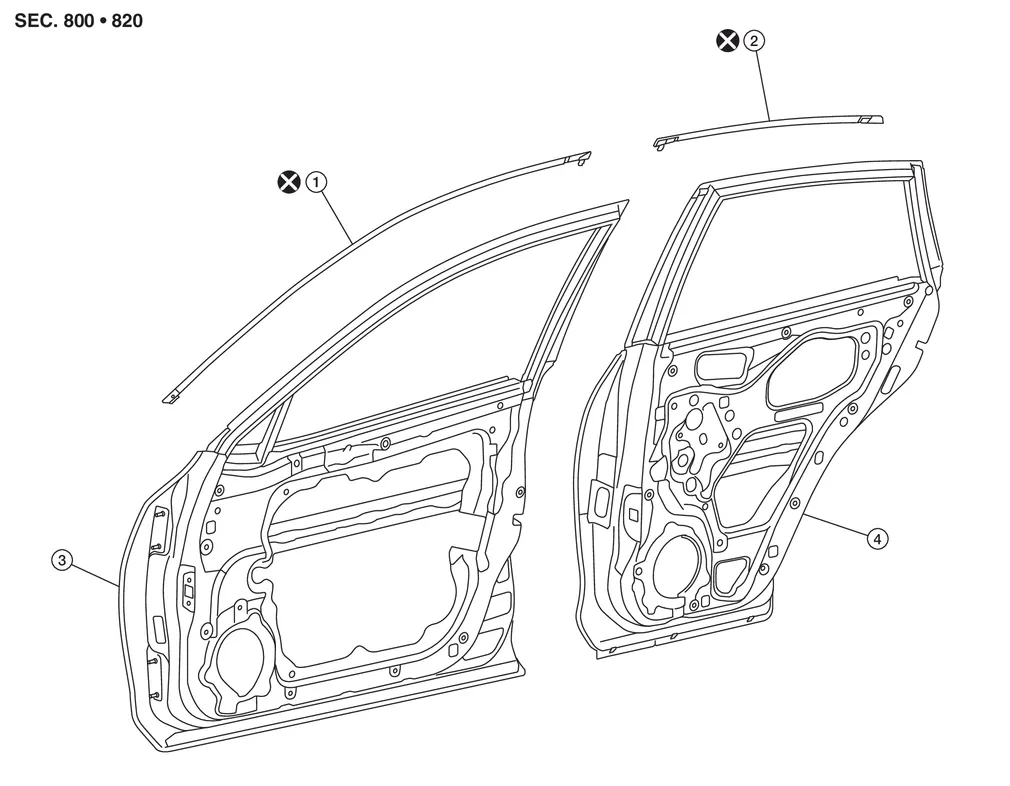

| 1. | Front door sash molding | 2. | Rear door rear sash molding | 3. | Front door panel |
| 4. | Rear door panel |
FRONT DOOR
Removal
Remove door mirror. Refer to Removal and Installation.

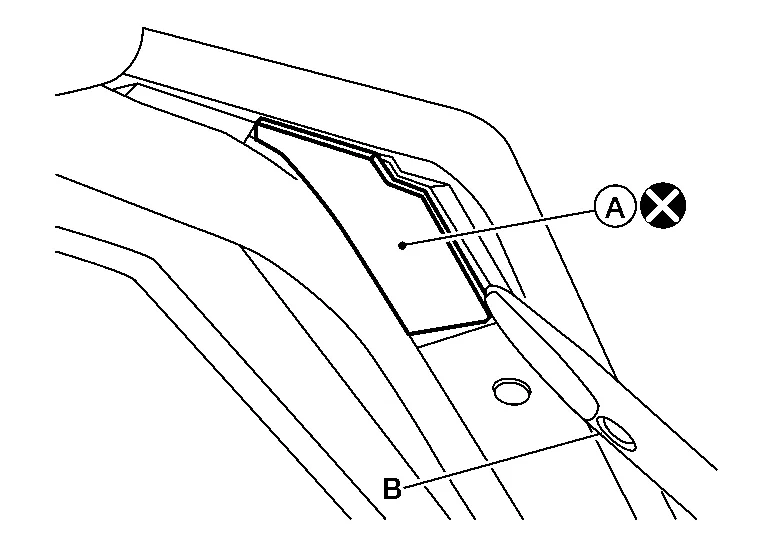

Remove front door sash molding clip (A) using a suitable tool (B).
CAUTION:
Do not reuse the clip (A).
Using a suitable tool (A), release front door sash molding (1) as shown and remove.
CAUTION:
Do not reuse front door sash molding (1).
Installation
Installation is in the reverse order of removal.
REAR DOOR
Removal

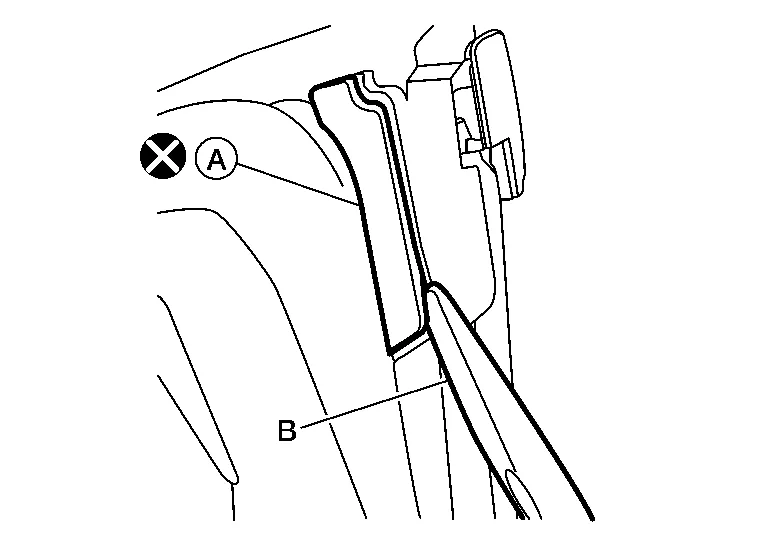

Remove rear door front sash molding clip (A) using a suitable tool (B).
CAUTION:
Do not reuse the clip (A).

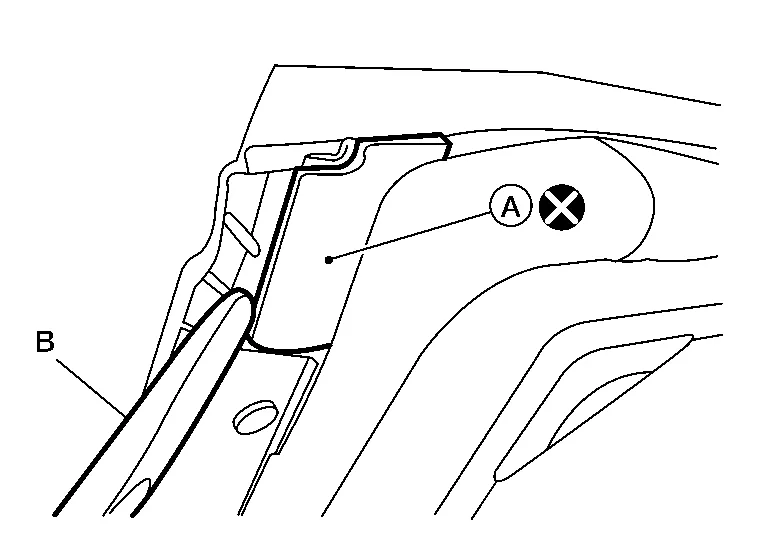

Remove rear door rear sash molding clip (A) using a suitable tool (B).
CAUTION:
Do not reuse the clip (A).

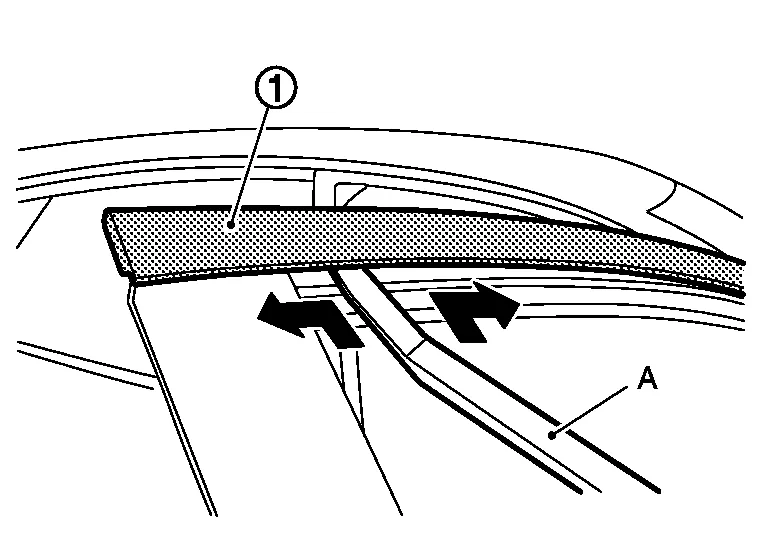

Using a suitable tool (A), release rear door sash molding (1) as shown and remove.
CAUTION:
Do not reuse rear door sash molding (1).
Installation
Installation is in the reverse order of removal.
