Nissan Murano: Exterior :: Removal and Installation / Roof Side Rail

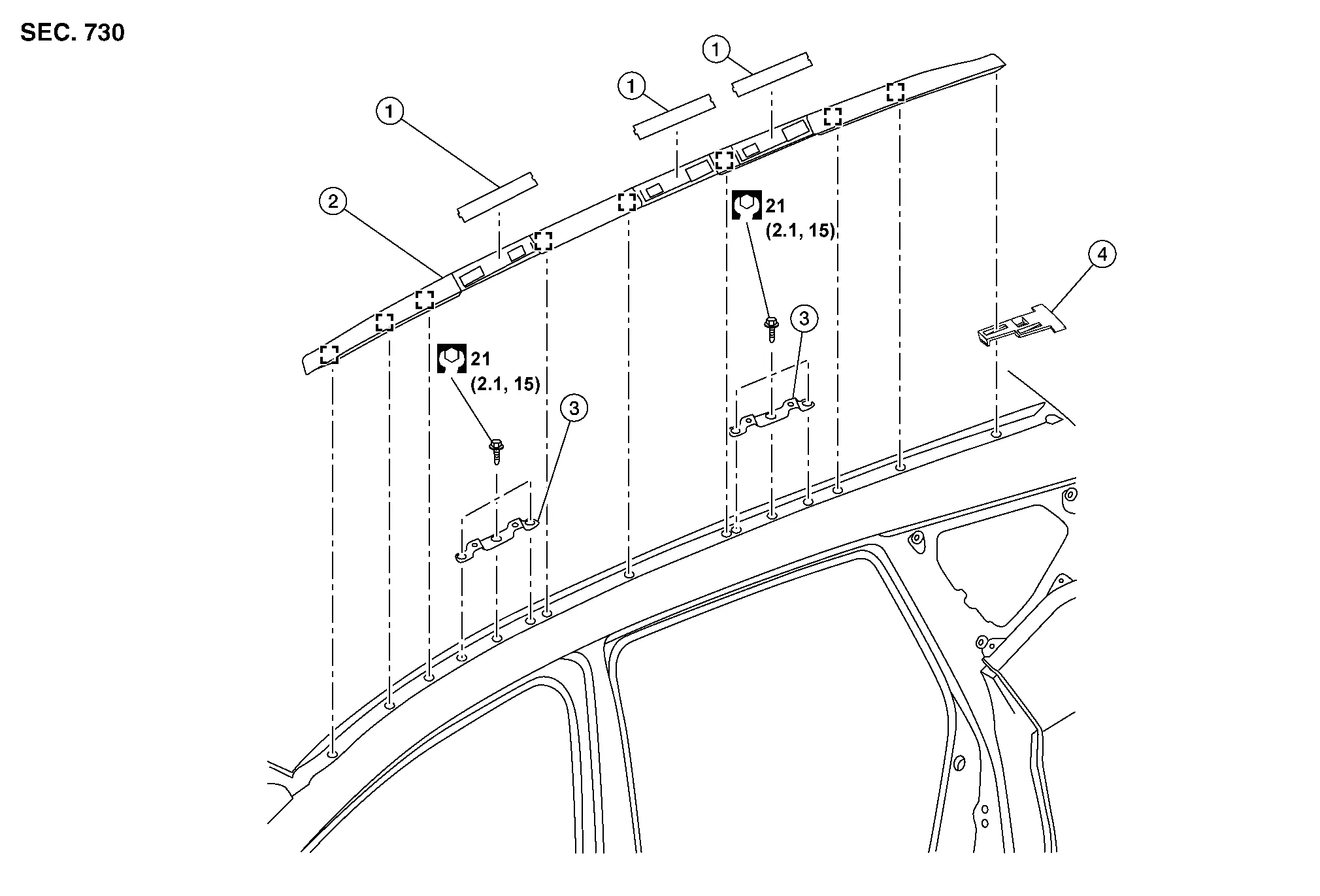

Exploded View

| 1. |
Roof rack bolt cover |
2. |
Roof rack |
3. |
Roof rack bracket |
| 4. |
End cap |
 |
Metal clip |
|
|
Removal and Installation
NOTE:
Begin removal procedure at the front of the Nissan Murano vehicle.
REMOVAL
Release roof rack metal clips using a suitable tool.

: Metal clip
Remove roof rack from Nissan Murano vehicle.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Apply protective tape (B) around the roof rack.
Exploded View
1.
Roof side molding
Metal clips
Removal and Installation
REMOVALBeginning at the front of the vehicle, release roof side molding (1) metal clips using a suitable tool (A) then remove...
Exploded View
1.
Front door sash molding
2.
Rear door rear sash molding
3.
Front door panel
4.
Rear door panel
Removal and Installation
FRONT DOORRemovalRemove door mirror...
