Nissan Murano: Exterior :: Removal and Installation / Cowl Top

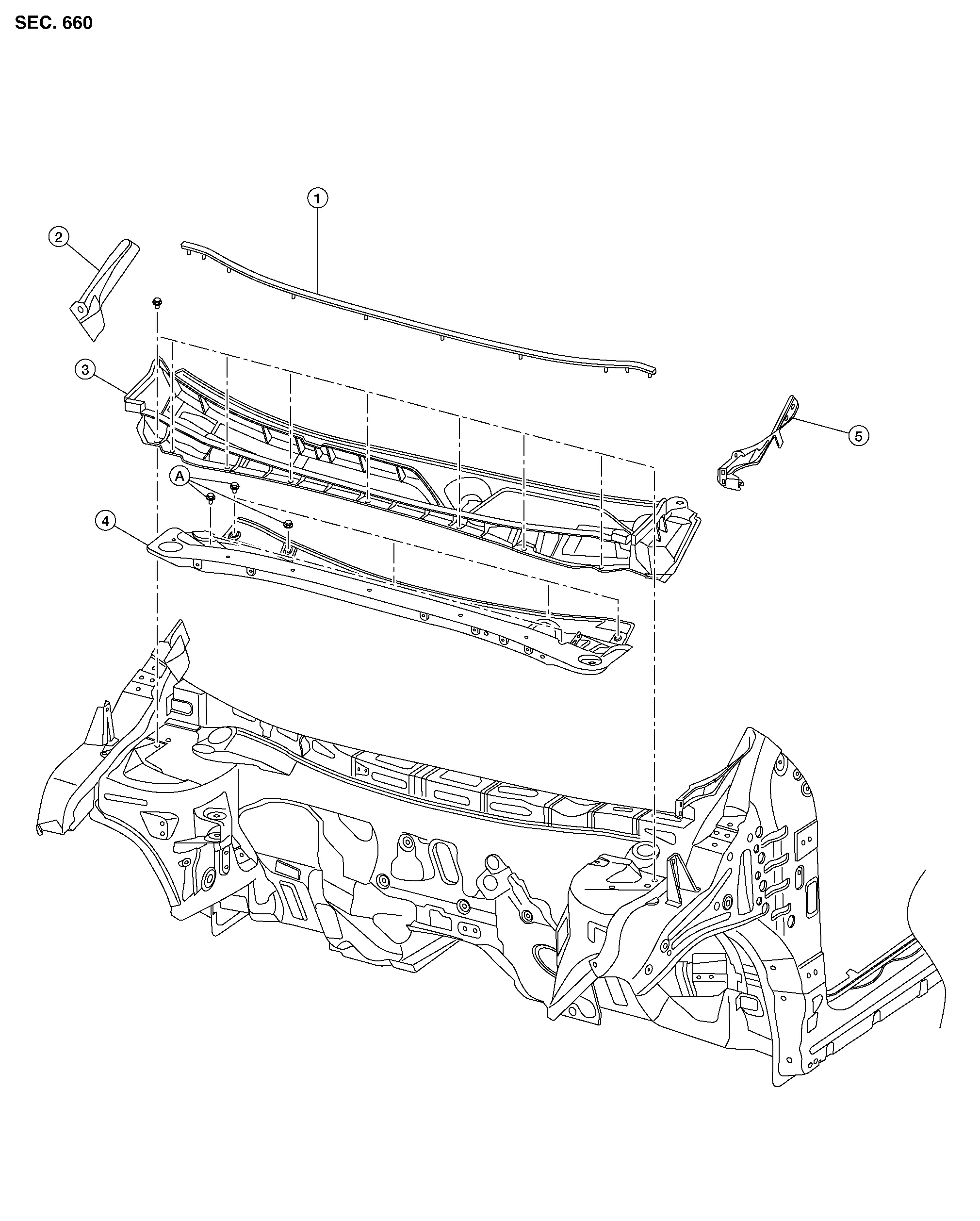

| 1. | Cowl top cover seal | 2. | Cowl top side trim cover (RH) | 3. | Cowl top cover |
| 4. | Cowl top extension | 5. | Cowl top side trim cover (LH) | A. | Refer to Removal and Installation - Cowl Top Extension |
REMOVAL
Remove front wiper arms (LH/RH). Refer to Removal and Installation.
Remove cowl top side trim covers (LH/RH).
Remove cowl top cover clips.

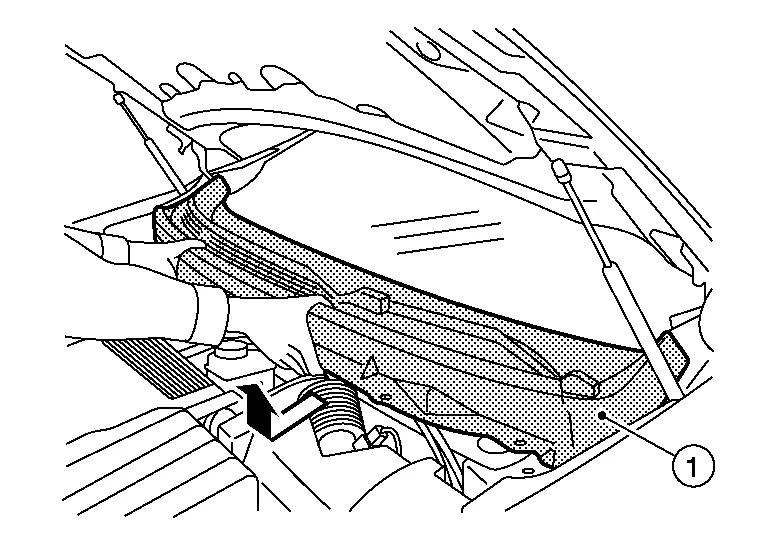

Remove the cowl top cover (1) as shown.
CAUTION:
When performing the procedure after removing cowl top cover, cover the lower end of windshield with urethane, etc, to prevent damage to the windshield.
INSTALLATION
Installation is in the reverse order of removal.
REMOVAL
Remove front wiper drive assembly. Refer to Removal and Installation.
Disconnect brake fluid level sensor harness connector from brake fluid level sensor.
Remove sub tank and sub tank bracket from cowl top extension and set aside. Refer to Exploded View.
Remove cowl top extension bolts and remove.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
When installing the cowl top extension, tighten the bolts to specification in the order shown.
| Cowl top extension bolts | : 32 N·m (3.3 kg-m, 24 ft-lb) |
Front Spoiler
Exploded View
1.
Front bumper fascia
2.
Front spoiler
Removal and Installation
REMOVALRemove clips from front spoiler.
Remove front spoiler...
