Component Parts Location

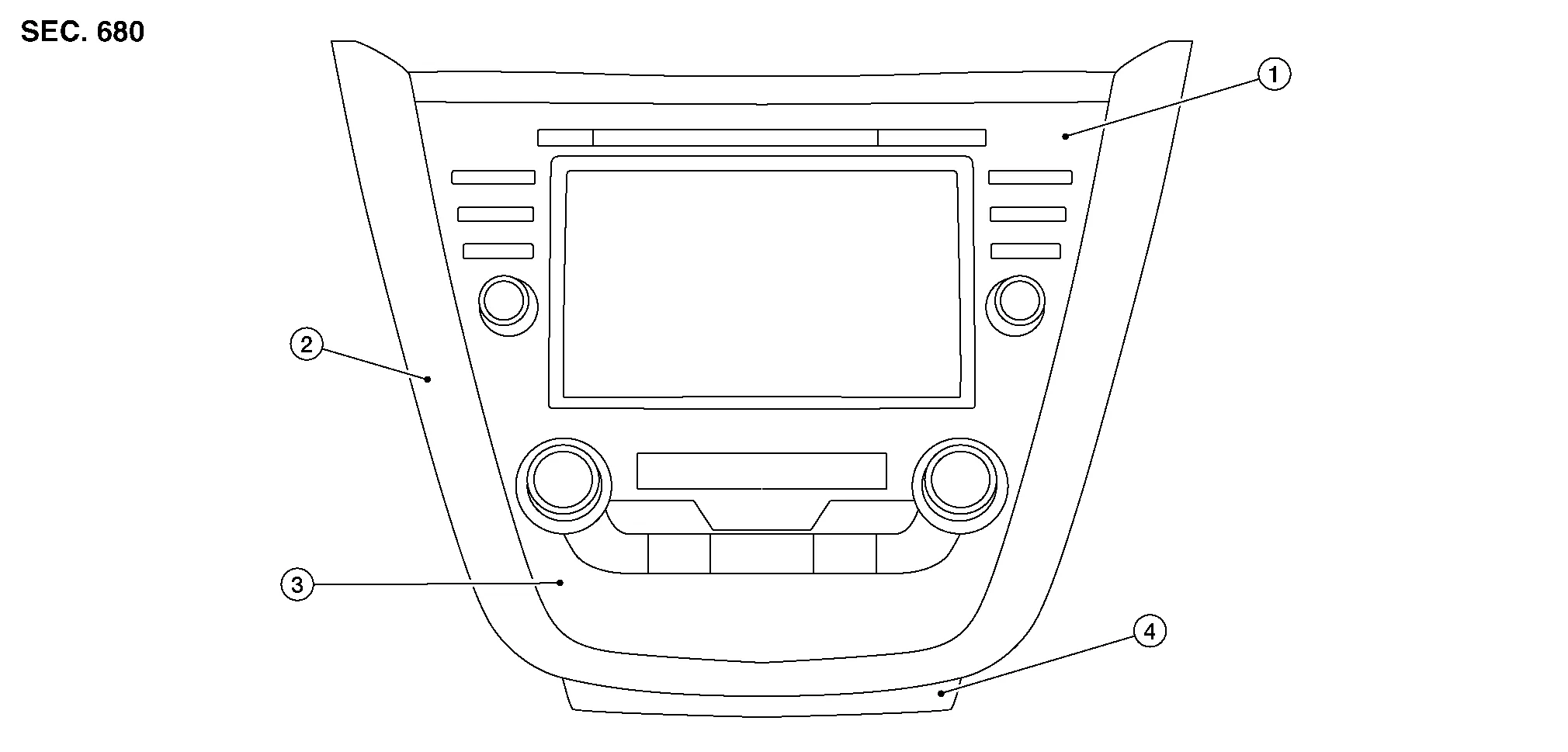

1.	Audio unit or AV control unit	2.	Cluster lid D	3.	A/C switch assembly
4.	Cluster lid C

Removal and Installation

REMOVAL

Apply the parking brake.

CAUTION:

Make sure the vehicle cannot move with the parking brake applied.

Remove shift lock override button cover (1) using suitable tool, and insert suitable tool into opening (A) to depress the shift lock override button. Move shift selector to “N” position while depressing shift lock override button.

Remove the shift selector handle with the following procedure.Slide the shift selector handle cover (1) down.

CAUTION:

Do not damage the knob cover.

Pull out the lock pin (2) from the shift selector handle (3). Pull the shift selector handle and the shift selector handle cover upwards to remove them.

Remove shift selector finisher. Refer to Exploded View.

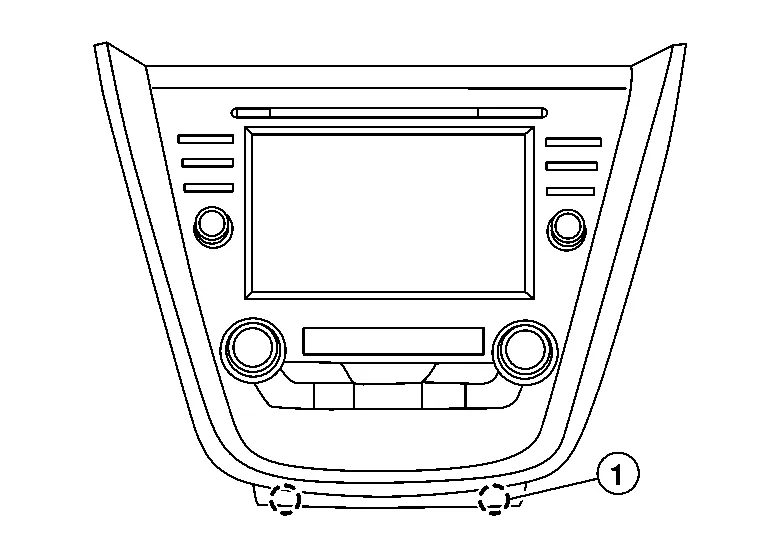

Release pawls using a suitable tool and remove cluster lid C (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

Cluster Lid a

Removal and Installation REMOVALRemove instrument lower panel LH. Refer to Removal and Installation. Using a suitable tool, release pawls and remove gap hider (1) from steering column upper cover (2)...

Cluster Lid D

Removal and Installation REMOVALRemove cluster lid C. Refer to Removal and Installation. Remove screws from cluster lid D. Refer to Exploded View. Release clips using a suitable tool and remove cluster lid D (1)...
