Nissan Murano: Instrument Panel :: Removal and Installation / Cluster Lid D

Nissan Murano (Z52) 2015-2024 Service Manual / Body Interior / Instrument Panel :: Removal and Installation / Cluster Lid D

Removal and Installation

REMOVAL

Remove cluster lid C. Refer to Removal and Installation.

Remove screws from cluster lid D. Refer to Exploded View.

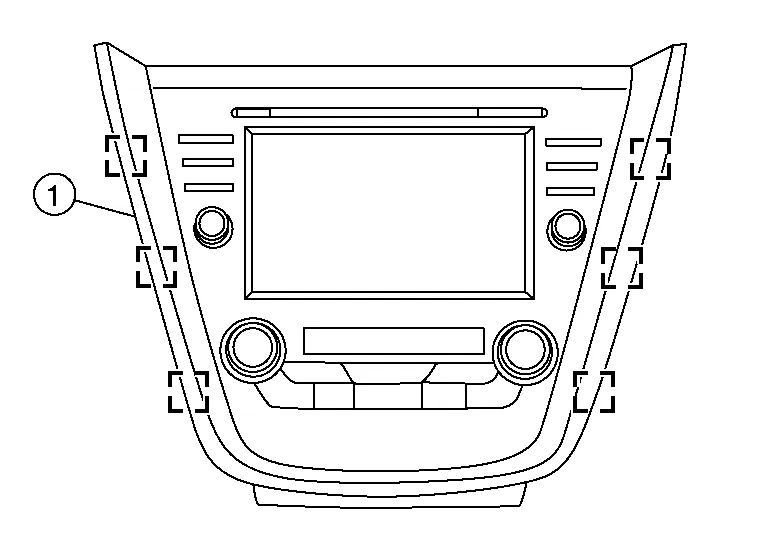

Release clips using a suitable tool and remove cluster lid D (1).

: Metal clip

INSTALLATION

Installation is in the reverse order of removal.
