Nissan Murano. All-Wheel Drive (AWD) models with Continuously Variable Transmission (CVT)

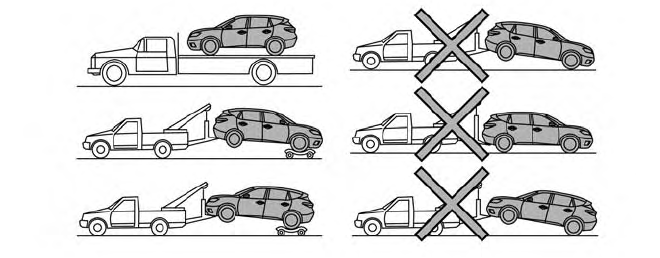

NISSAN recommends that towing dollies be used when towing your vehicle or place the vehicle on a flatbed truck as illustrated.

CAUTION

Never tow All-Wheel Drive (AWD) models equipped with a Continuously Variable Transmission (CVT) with any of the wheels on the ground as thismaycause serious and expensive damage to the transfer case and transmission.
