System Description

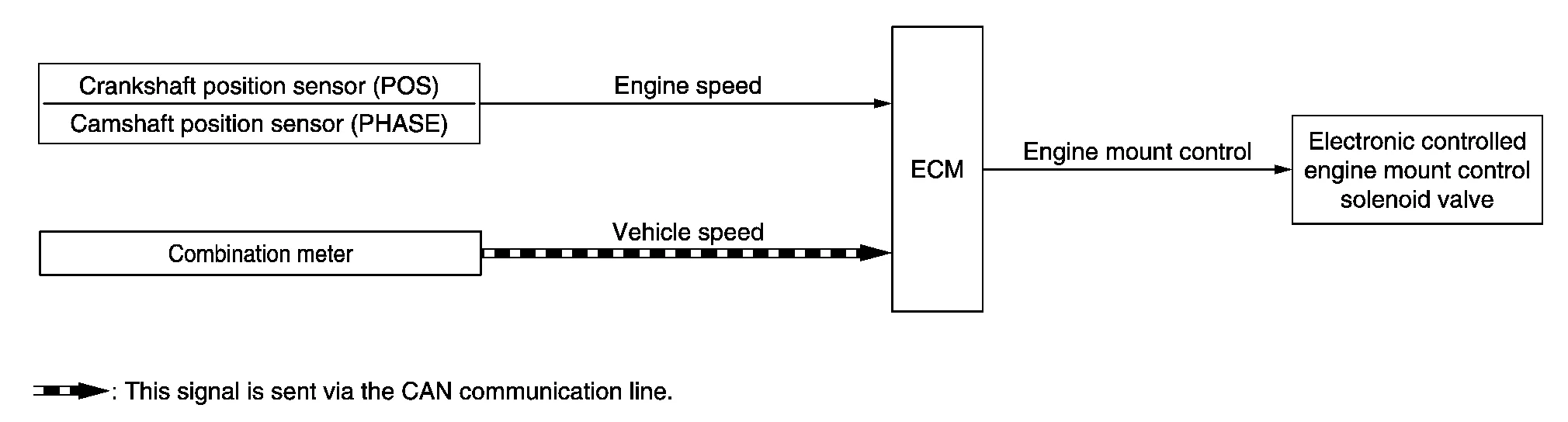

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

The ECM controls the engine mount operation corresponding to the engine speed. The control system has a 2-step control [Soft/Hard]

Vehicle condition	Engine mount control
Engine speed: Below 950 rpm	Soft
Engine speed: Above 950 rpm	Hard

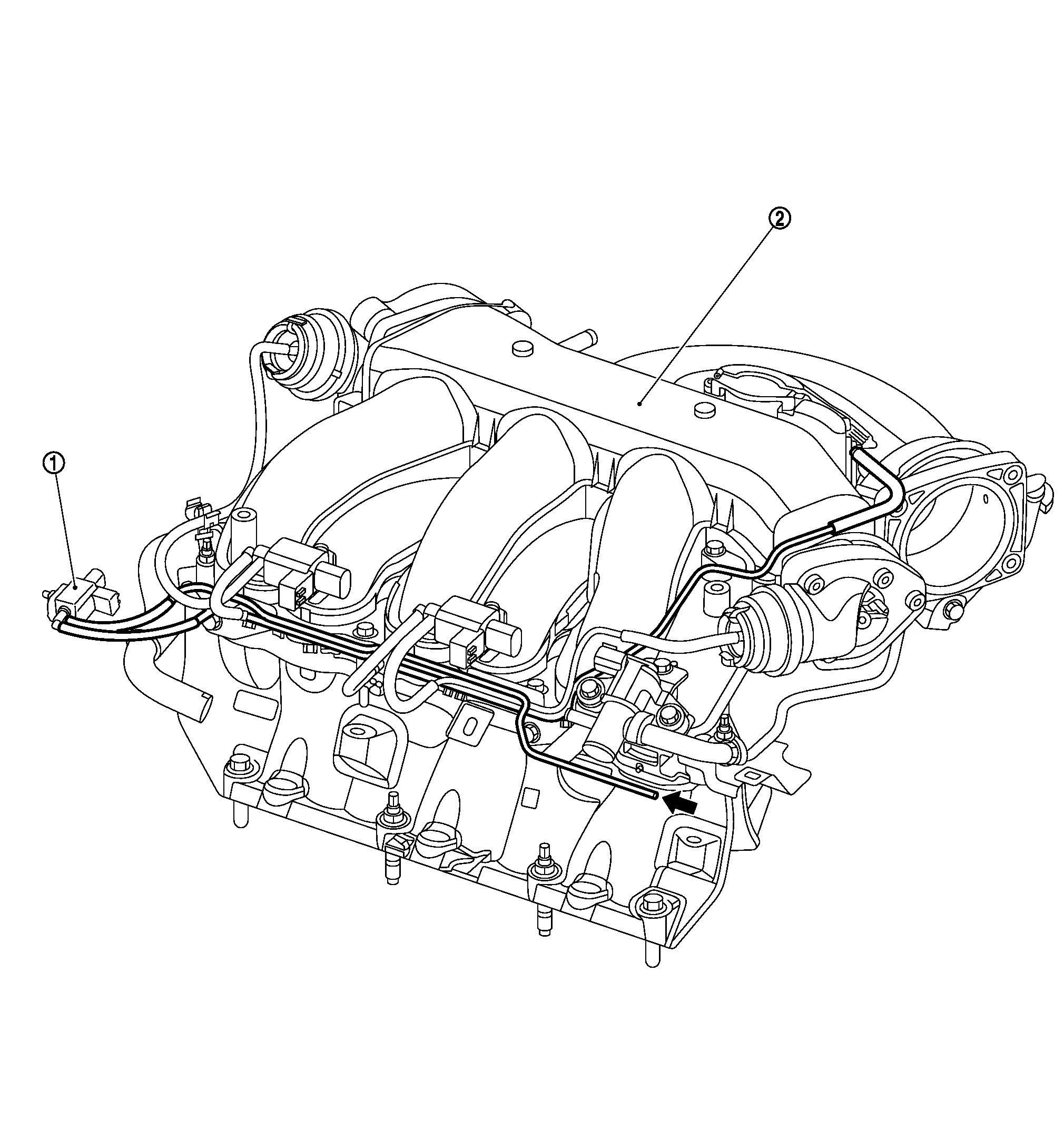

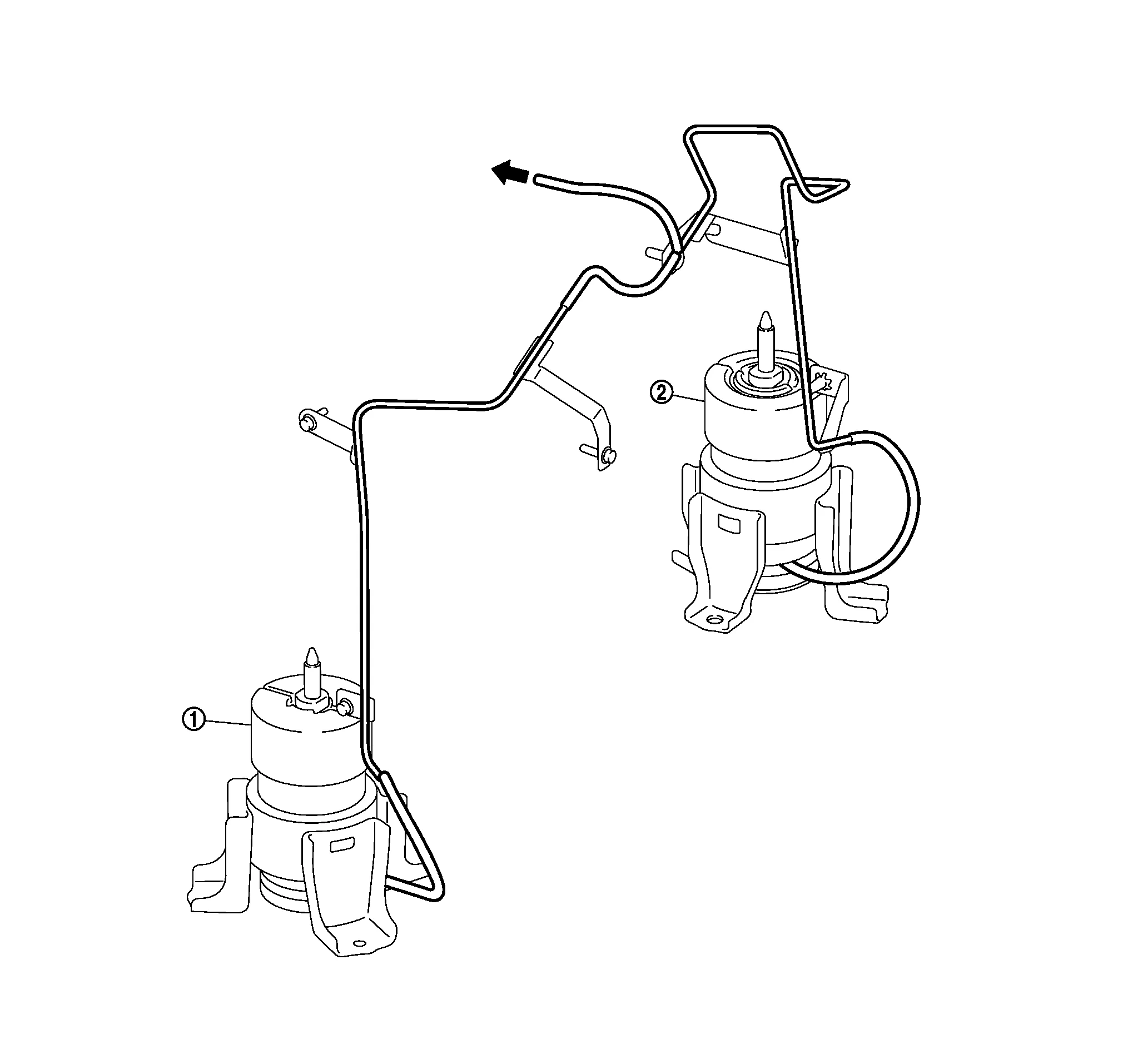

ELECTRONIC CONTROLLED ENGINE MOUNT LINE DRAWING

	Electronic controlled engine mount control solenoid valve		Intake manifold collector
	: From next figure

	Front electronic controlled engine mount		Rear electronic controlled engine mount
	: To previous figure

NOTE:

Do not use soapy water or any type of solvent while installing vacuum hose.
