Nissan Murano: Wiper & Washer :: Dtc/circuit Diagnosis / Washer Switch
-
Washer switch is integrated with the combination switch (wiper and washer switch).
-
Combination switch (wiper and washer switch) switches polarity between front and rear washer operation to supply power and ground to the front and rear washer motor.
CHECK FRONT WASHER SWITCH
-
Ignition switch OFF.
-
Disconnect combination switch (wiper and washer switch).
-
Check continuity between the combination switch (wiper and washer switch) terminals.

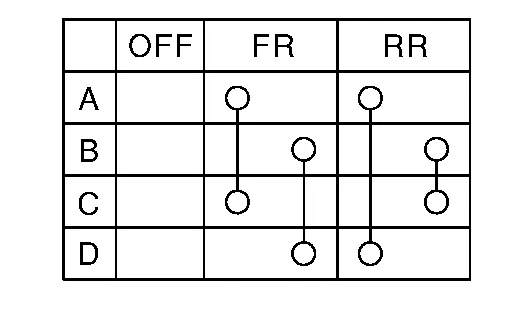

A: Terminal 4
B: Terminal 6 C: Terminal 3 D: Terminal 1
| Combination switch (wiper and washer switch) | Condition | Continuity | |
|---|---|---|---|
| Terminals | |||
| 1 | 6 | Front washer switch ON | Yes |
| 3 | 4 | ||
Is the inspection result normal?
YES>>GO TO 2.
NO>>Replace combination switch (wiper and washer switch). Refer to Removal and Installation.
CHECK REAR WASHER SWITCH
-
Check continuity between the combination switch (wiper and washer switch) terminals.
A: Terminal 4 B: Terminal 6 C: Terminal 3 D: Terminal 1
| Combination switch (wiper and washer switch) | Condition | Continuity | |
|---|---|---|---|
| Terminals | |||
| 1 | 4 | Rear washer switch ON | Yes |
| 6 | 3 | ||
Is the inspection result normal?
YES>>Wiper and washer switch is normal.
NO>>Replace combination switch (wiper and washer switch). Refer to Removal and Installation.
Front and Rear Washer Motor Circuit
Diagnosis Procedure
CHECK FRONT AND REAR WASHER MOTOR FUSE
Ignition switch OFF.
Check that the following fuse is not blown:
Component Location Fuse No...
Rear Wiper Motor Circuit
Component Function Check
CHECK REAR WIPER ON OPERATION
CONSULT
Select “RR WIPER” in “Active Test” mode of “BCM(WIPER)”.
While operating the test item, check rear wiper operation...
Other information:
Nissan Murano (Z52) 2015-2024 Service Manual: P2096 A/f Sensor 1
DTC Description DTC DETECTION LOGIC DTC CONSULT screen terms (Trouble diagnosis content) DTC detection condition P2096 POST CAT FUEL TRIM SYS B1 (Post catalyst fuel trim system too lean bank 1) Diagnosis condition — Signal (terminal) — Threshold The output voltage computed by ECM from the A/F sensor 1 signal is shifts to the lean side for a specified period Diagnosis delay time — P2097 POST CAT FUEL TRIM SYS B1 (Post catalyst fuel trim system too rich bank 1) Diagnosis condition — Signal (terminal) — Threshold The A/F signal computed by ECM from the A/F sensor 1 signal is shifts to the rich side for a specified period Diagnosis delay time — P2098 POST CAT FUEL TRIM SYS B2 (Post catalyst fuel trim system too lean bank 2) Diagnosis condition — Signal (terminal) — Threshold The output voltage computed by ECM from the A/F sensor 1 signal is shifts to the lean side for a specified period Diagnosis delay time — P2099 POST CAT FUEL TRIM SYS B2 (Post catalyst fuel trim system too rich bank 2) Diagnosis condition — Signal (terminal) — Threshold The A/F signal computed by ECM from the A/F sensor 1 signal is shifts to the rich side for a specified period Diagnosis delay time — POSSIBLE CAUSEDTC P2096 A/F sensor 1 (bank 1) A/F sensor 1 heater Heated oxygen sensor 2 (bank 1) Fuel pressure Fuel injector Intake air leaks Exhaust gas leaks DTC P2097 A/F sensor 1 (bank 1) A/F sensor 1 heater Heated oxygen sensor 2 (bank 1) Fuel pressure Fuel injector Intake air leaks Exhaust gas leaks DTC P2098 A/F sensor 1 (bank 2) A/F sensor 1 heater Heated oxygen sensor 2 (bank 2) Fuel pressure Fuel injector Intake air leaks Exhaust gas leaks DTC P2099 A/F sensor 1 (bank 2) A/F sensor 1 heater Heated oxygen sensor 2 (bank 2) Fuel pressure Fuel injector Intake air leaks Exhaust gas leaks FAIL-SAFENot applicable DTC Confirmation Procedure PRECONDITIONING If DTC Confirmation Procedure has been previously conducted, always perform the following before conducting the next test...
Nissan Murano (Z52) 2015-2024 Service Manual: Map Lamp Circuit
Description Controls the lamp (ground side) by PWM signal (duty) when the map lamp main switch is DOOR. Component Function Check CAUTION: Check the following items first: Battery saver output/power supply circuit Front room/map lamp assembly CHECK MAP LAMP CONTROL FUNCTION CONSULT Ignition switch ON...
