Nissan Murano: Automatic Emergency Braking (AEB) with Pedestrian Detection (if so equipped) / Turning the AEB with Pedestrian Detection system on/off

Nissan Murano 2015-2024 Owners Manual / Starting and driving / Automatic Emergency Braking (AEB) with Pedestrian Detection (if so equipped) / Turning the AEB with Pedestrian Detection system on/off

Nissan Murano. Turning the AEB with Pedestrian Detection system on/off

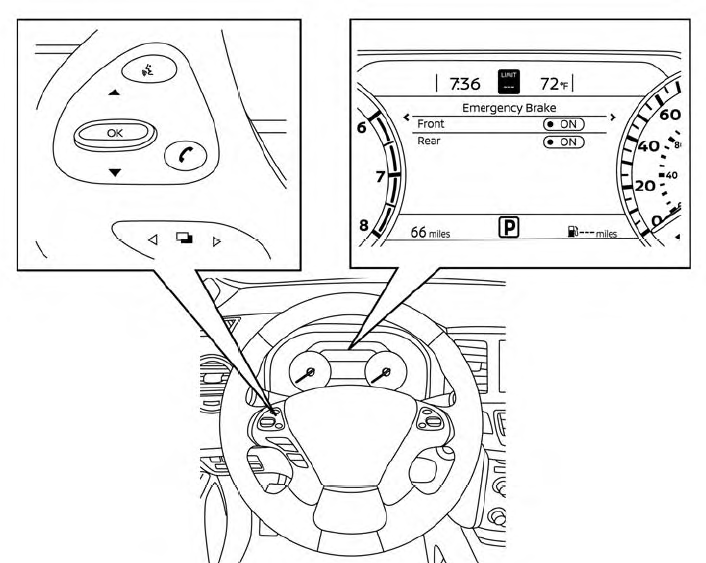

Perform the following steps to enable or disable the AEB with Pedestrian Detection system.

  1. Press the Nissan Murano. Turning the AEB with Pedestrian Detection system on/off button until “Settings” displays in the vehicle information display and then press the OK button. Use the Nissan Murano. Turning the AEB with Pedestrian Detection system on/off button to select “Driver Assistance.” Then press the OK button.
  2. Select “Emergency Brake” and press the OK button.
  3. Select “Front” and press the OK button to turn the system on or off.

When the AEB with Pedestrian Detection system is turned off, the AEB with Pedestrian Detection system warning light illuminates.

NOTE:

  • The AEB with Pedestrian Detection system will be automatically turned on when the engine is restarted.
  • The I-FCW system is integrated into the AEB with Pedestrian Detection system. There is not a separate selection in the vehicle information display for the I-FCW system. When the AEB system is turned off, the I-FCW system is also turned off.

    AEB with Pedestrian Detection system operation

    Vehicle ahead detection indicator AEB with Pedestrian Detection emergency warning indicator AEB with Pedestrian Detection system warning light The AEB system operates at speeds above approximately 3 mph (5 km/h)...

    AEB with Pedestrian Detection system limitations

    WARNING Listed below are the system limitations for the AEB with Pedestrian Detection system. Failure to operate the vehicle in accordance with these system limitations could result in serious injury or death...
