Nissan Murano: System / Srs Air Bag Control System

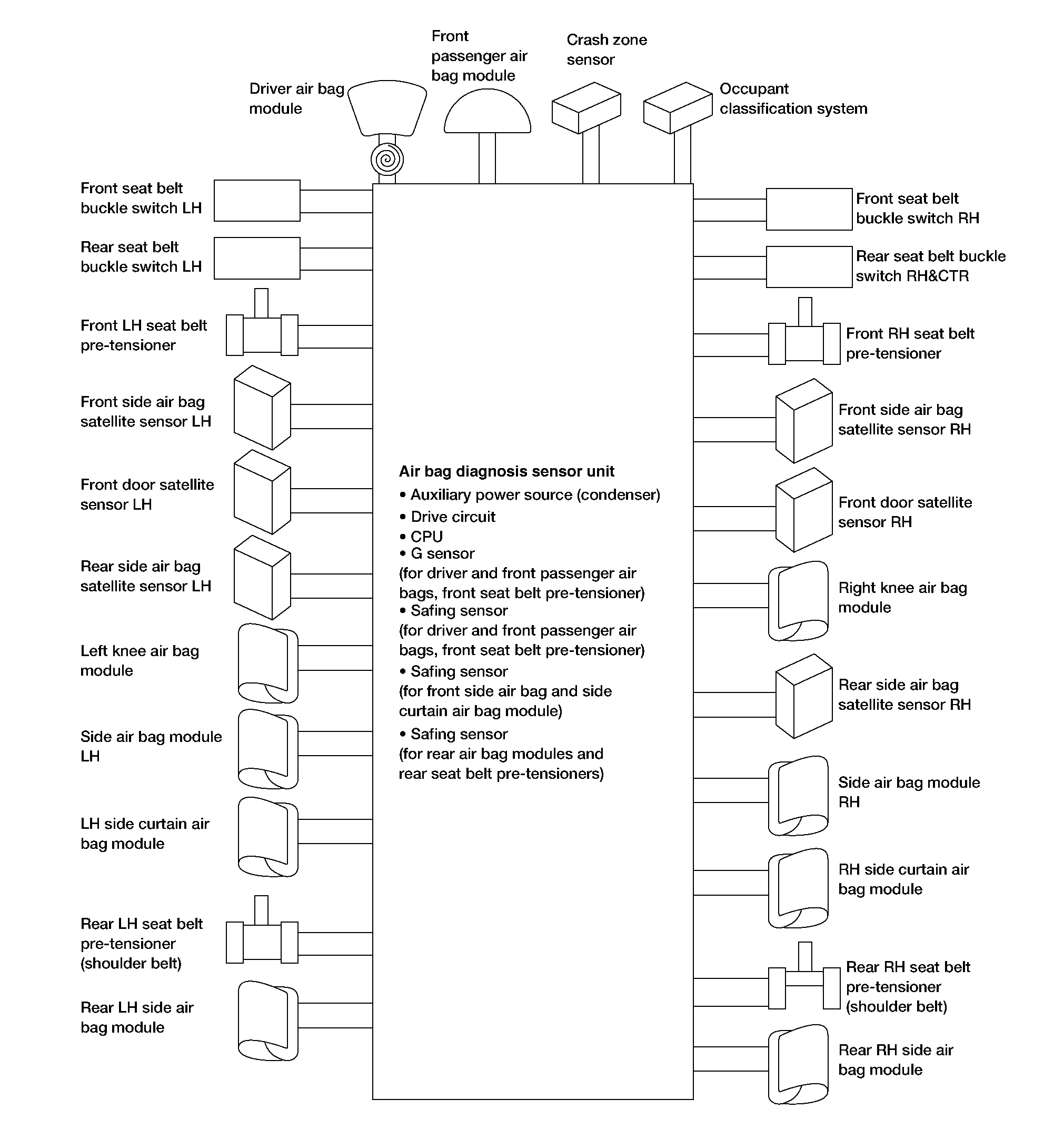

SYSTEM DIAGRAM
System Description
-
The air bag deploys if the air bag diagnosis sensor unit is activated while the ignition switch is in ON or START.
-
The collision modes for which supplemental restraint systems are activated are different among the SRS systems. For example, the driver air bag module, front passenger air bag module, left knee air bag module and front seat belt pre-tensioner are activated in a frontal collision but not in a side collision.
SRS Collision Modes
| SRS configuration | Frontal collision | Left side collision | Right side collision | Rollover |
|---|---|---|---|---|
| Driver air bag module | x | — | — | — |
| Front passenger air bag module | x | — | — | — |
| Left knee air bag module | x | — | — | — |
| Right knee air bag module | x | — | — | — |
| Front LH seat belt pre-tensioner | x | — | — | x |
| Front RH seat belt pre-tensioner | x | — | — | x |
| Rear LH seat belt pre-tensioner | x | — | — | x |
| Rear RH seat belt pre-tensioner | x | — | — | x |
| Side air bag module LH | — | x | — | — |
| Side air bag module RH | — | — | x | — |
| LH side curtain air bag module | — | x | — | x |
| RH side curtain air bag module | — | — | x | x |
| Rear side air bag module LH | — | x | — | x |
| Rear side air bag module RH | — | — | x | x |
System
..
Occupant Classification System
System Description
SYSTEM DIAGRAMSystem DescriptionThe occupant classification system (OCS) identifies different size occupants, out of position occupants, and detects if a child seat is present in the front passenger seat...
