Nissan Murano: Front Door Lock / Outside Handle

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Door & Lock :: Removal and Installation / Front Door Lock / Outside Handle

Removal and Installation

REMOVAL

Fully close front door glass.

Remove front door finisher. Refer to Removal and Installation.

Remove front door vapor barrier.

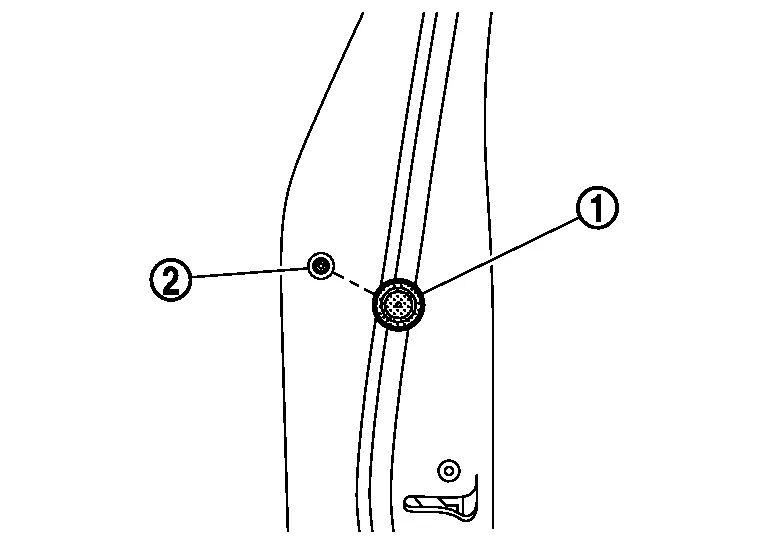

Remove door side grommet (1), and remove bolt from grommet hole (2).

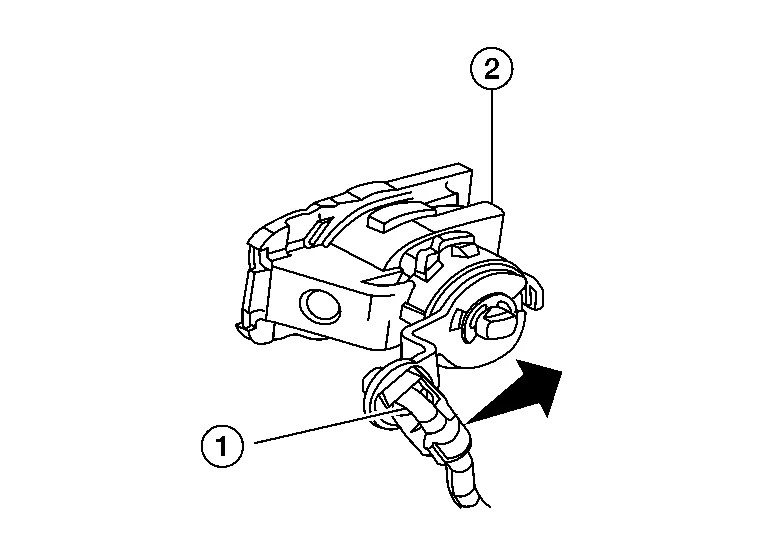

Separate door key cylinder rod (LH only) (1) from door key cylinder assembly (LH only) (2).

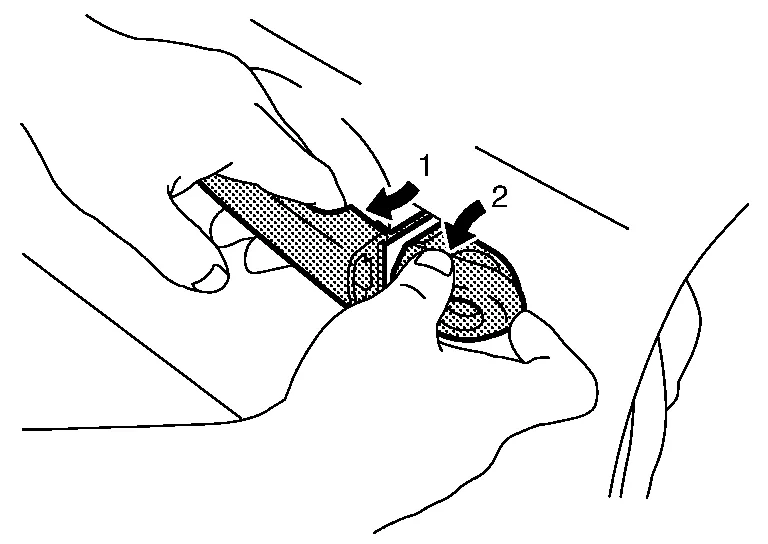

While pulling (1) outside handle, remove (2) door key cylinder assembly (LH side) or outside handle escutcheon (RH side).

While pulling outside handle (1), slide toward rear of Nissan Murano vehicle to remove outside handle.

Remove front gasket and rear gasket.

Slide outside handle bracket toward rear of Nissan Murano vehicle to remove.

Disconnect outside handle cable from outside handle bracket and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing door key cylinder rod (LH only), be sure to rotate door key cylinder rod holder until a click is felt.

After installation, check that door lock cable is properly engaged to outside handle bracket.

After installation, check door open/close and lock/unlock operation.
