Nissan Murano: Body Repair :: Repair Information / Service Data and Specifications (sds). Body Alignment
Factory marks exist on certain parts of the body to indicate the vehicle center. When repairing the Nissan Murano vehicle frame (members, pillars, etc.) damaged in an accident the most accurate and effective repair will be achieved by using these marks together with body alignment specifications.
 |

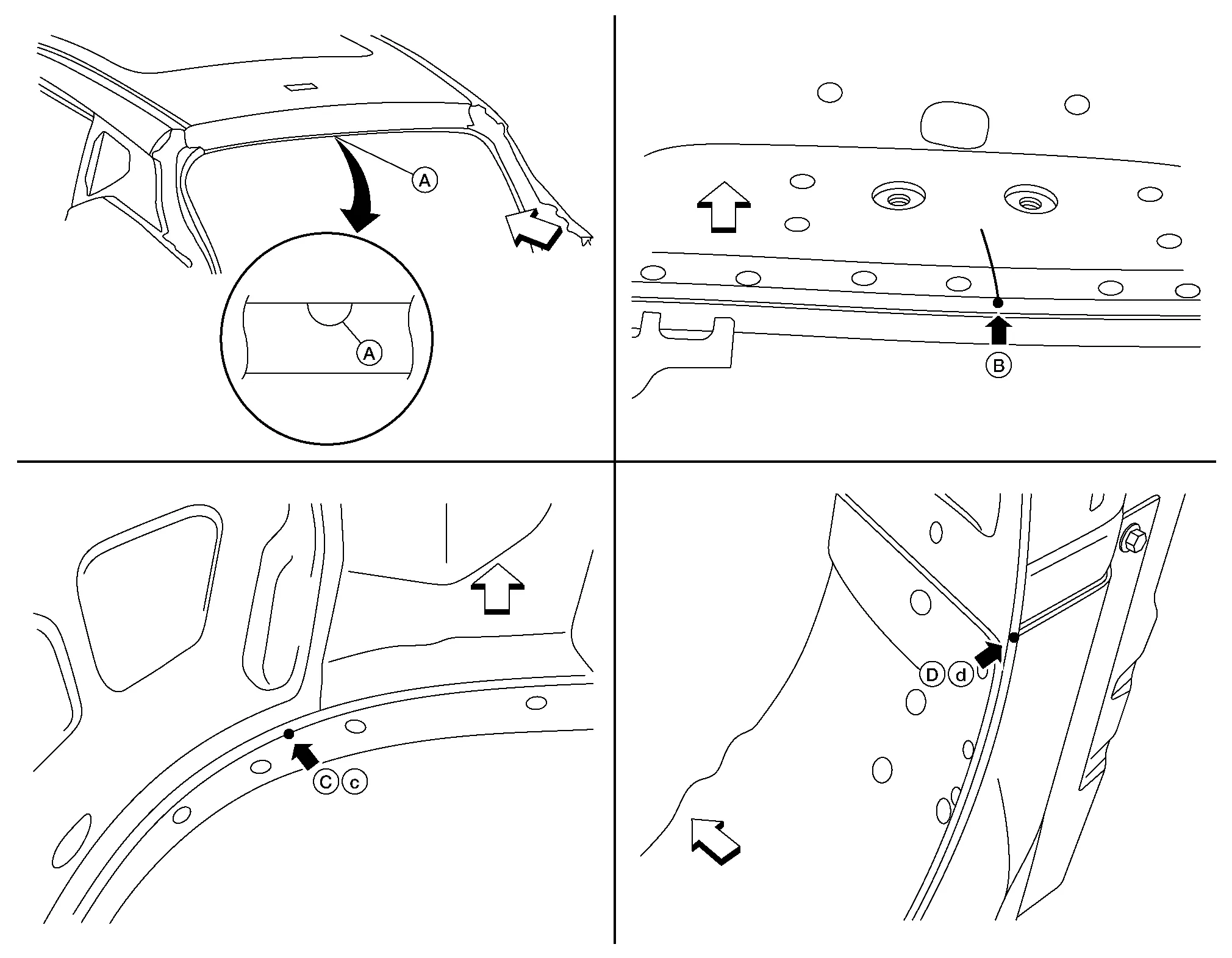

Front |
| Points | Portion | Marks |
|---|---|---|
| A | Front roof | Embossment |
| B | Center cowl top | Hole |
| C | Body side | Notch |
| D | Rear roof | Notch |
-
All dimensions indicated in the figures are actual.
-
When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
-
When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
-
Measurements should be taken at the center of the mounting holes.
-
An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side is symmetrically the same value.
-
The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″ and ″Z″.
-
″Z″: Imaginary base line [200 mm (7.87 in) below datum line (″0Z″ at design plan)]
| 1. | Nissan Murano Vehicle center | 2. | Front axle center | 3. | Imaginary base line |
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the RH and LH sides of the Nissan Murano vehicle.
Unit: mm (in)
MEASUREMENT POINTS
Unit: mm (in)
| Points | Coordinates | Remarks | ||
|---|---|---|---|---|
| X | Y | Z | ||
| A, a | ±566.60 (±22.31)) |
-478.00 (-18.82) 501.0 19.72 |
175.50 (12.99) | Hole 18 (0.71) |
| B, b | ±301.00 (±12.20) | ±305.00 (12.01) | 77.77 (3.06) | Hole 29.5 (1.16) |
| C, c | ±660.00 (±25.98) | ±410.00 (±16.14) | -9.63 (-0.38) | Hole 14.0 (0.55) |
| D, d | ±1270.00 (±20.23) | ±410.00 (±16.14) | -10.80 (0.43) | Hole 12.0 (0.47) |
| E, e | ±2501.0 (±98.46) | ±330.0 (±12.99) | 234.00 (9.21) | Hole 29.5 (1.16) |
| F, f | ±2897.2 (±114.06) | ±525.5 (±20.69) | 235.0 (9.25) | Hole 20.0 (0.79) |
| G, g | ±3248.0 (±127.87) |
-551.0 (-21.69) 523.5 (20.61) |
233.8 (9.20) | Hole 16.0x14.0 (0.63x0.55) |
|
Front |
Unit: mm (in)
| Point | Description |
|---|---|
| A, a | Hood hinge rear hole 8.0 (0.31) |
| B, b | Hood hinge front hole 8.0 (0.31) |
| C, c | Front strut housing hole 8.0 (0.31) |
| D, d | Hoodledge locator hole 10.0 (0.36) |
| E, e | Upper radiator support top hole 8.0 (0.31) |
| F, f | Upper radiator support front hole 8.0 (0.31) |
| G, g | Bumper reinforcement lower hole 8.0 (0.31) |
| H, h | Lower radiator support hole 8.0 (0.31) |
MEASUREMENT
The following figure shows a bottom view and a side view of the vehicle.
Unit: mm (in).
|
Front |  Left Side of Nissan Murano Vehicle |
|
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the RH and LH sides of the Nissan Murano vehicle.
MEASUREMENT POINTS
|
Front |
Unit: mm (in)
| Points | Coordinates | Remarks | ||
|---|---|---|---|---|
| X | Y | Z | ||
| A, a | ±566.60 (±22.31)) |
-478.00 (-18.82) 501.0 19.72 |
175.50 (12.99) | Hole 18 (0.71) |
| B, b | ±301.00 (±12.20) | ±305.00 (12.01) | 77.77 (3.06) | Hole 29.5 (1.16) |
| C, c | ±660.00 (±25.98) | ±410.00 (±16.14) | -9.63 (-0.38) | Hole 14.0 (0.55) |
| D, d | ±1270.00 (±20.23) | ±410.00 (±16.14) | -10.80 (0.43) | Hole 12.0 (0.47) |
| E, e | ±2501.0 (±98.46) | ±330.0 (±12.99) | 234.00 (9.21) | Hole 29.5 (1.16) |
| F, f | ±2897.2 (±114.06) | ±525.5 (±20.69) | 235.0 (9.25) | Hole 20.0 (0.79) |
| G, g | ±3248.0 (±127.87) |
-551.0 (-21.69) 523.5 (20.61) |
233.8 (9.20) | Hole 16.0x14.0 (0.63x0.55) |
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the LH and RH side of the Nissan Murano vehicle.
Unit: mm (in)
| Coordinates | Measurement | Coordinates | Measurement | |
|---|---|---|---|---|
| A-D | 943.64(37.15) | A-C* | 1037.90 (40.86) | |
| C-b* | 1544.04 (60.79) | E-M* | 846.53 (33.33) | |
| F-M* | 970.77 (38.22) | G-S* | 1047.83 (41.25) | |
| H-N* | 935.61 (36.83) | J-P* | 1255.09 (49.41) | |
| K-T* | 1121.60 (44.16) | R-W* | 696.45 (27.42) | |
| U-Y* | 1072.95 (42.24) | Q-X* | 790.61 (31.13) | |
| V-Z* | 1117.28 (43.99) |
MEASUREMENT POINTS
|
Front |
| Point | Description | Point | Description |
|---|---|---|---|
| A | Roof flange end of center positioning mark | E,e F,f, G,g H,h J,j | Front pillar indent |
| B, b | Outer side body joggle | M,m, N,n P,p Q,q R,r | Center pillar indent |
| C, c | Outer side body indent | K,k T,t S,s | Door hinge installing hole center |
| D | Center of center cowl top hole | V,v W,w X,x Y,y Z,z | Rear fender indent |
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the LH and RH side of the Nissan Murano vehicle.
Unit: mm (in)
|
Front |
MEASUREMENT POINTS
|
Front |
| Point | Description | Point | Description |
|---|---|---|---|
| A | Roof flange end of center positioning mark | B | Edge of rear panel between back door striker installing holes |
| C, c | Back pillar main joggle | D, d | Upper rear panel joggle |
MEASUREMENT
Dimensions marked with ″*″ indicate symmetrically identical dimensions on both the LH and RH side of the Nissan Murano vehicle.
Unit: mm (in)
|
Front |
Replacement Operations
Precautions for Body Repair
WARNING:
The repair information in this section is intended for trained body repair technicians who have attained a high level of skill and experience (e...
