Nissan Murano: Second Row Seat Belt / Seat Belt Retractor

Removal and Installation

SEAT BELT RETRACTOR - (LH/RH)

Removal

WARNING:

• Before servicing the SRS, turn the ignition switch OFF, disconnect both battery terminals then wait at least three minutes.

• Do not drop the seat belt retractor. Always handle it with care.

• Always point pre-tensioner cylinder away from body when handling.

Remove luggage side lower finisher. Refer to Removal and Installation.

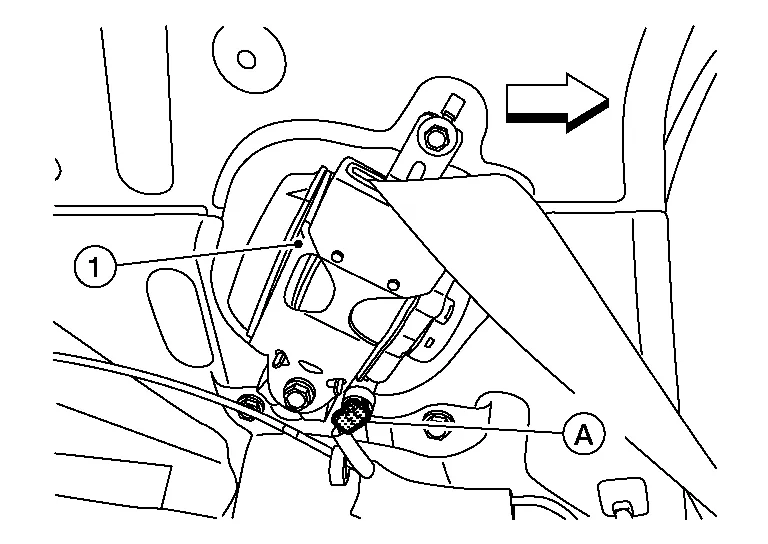

Disconnect harness connector (A) from the seat belt retractor (1).

: Front

NOTE:

LH side shown, RH side similar.

CAUTION:

• For removing/installing the shoulder belt pre-tensioner harness connector, insert a thin screwdriver wrapped in tape into the notch, then lift the lock and remove the harness connector as shown.



• Install the harness connector with the lock raised, and push the lock into the harness connector as shown.

• After installing the harness connector, check that the lock is pushed in securely.

Remove seat belt retractor bolts (A) and (B), then remove seat belt retractor (1) from Nissan Murano vehicle.

: Front

NOTE:

LH side shown, RH side similar.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten D-ring anchor bolt, seat belt retractor bolt, and lower D-ring anchor bolt to specification. Refer to Exploded View.

• Make sure D-ring anchor operates freely.

• Always perform an inspection after repair to make sure system is functioning within specifications. Refer to Inspection.

SEAT BELT RETRACTOR - (CENTER)

Removal

Remove headlining. Refer to Removal and Installation.

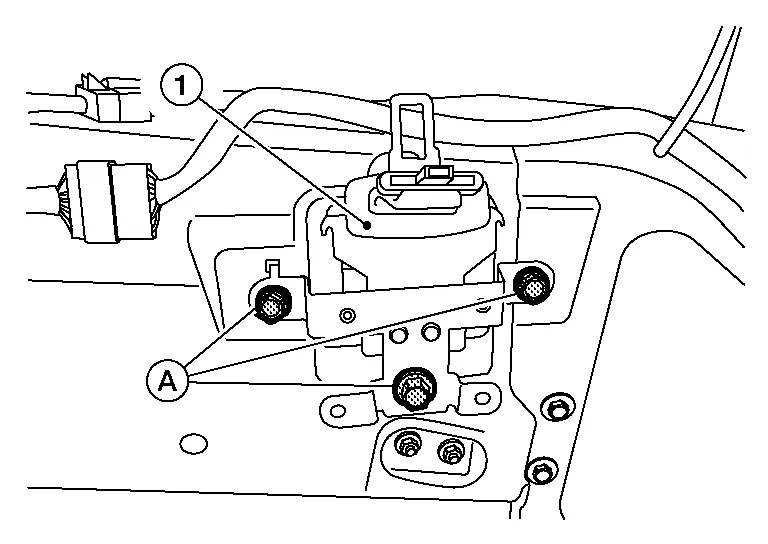

Remove bolts (A) and rear seat belt center retractor (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten seat belt retractor bolts to specification. Refer to Exploded View.

• Make sure seat belt retractor operates freely.

• Always perform an inspection after repair to make sure system is functioning within specifications. Refer to Inspection.
