Special Service Tool

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name
Description

KV48103500

(J-26357)

Pressure gauge

Measuring power steering oil pump relief pressure

KV48102500

(J-33914)

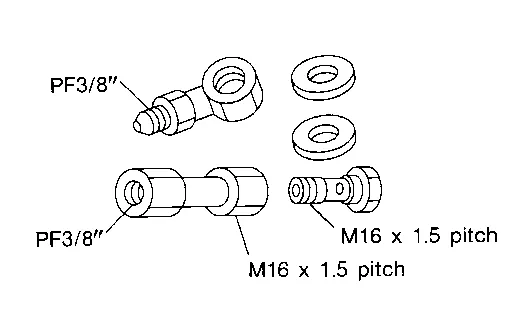

Pressure gauge adapter

Measuring power steering oil pump relief pressure

KV40107300

(J-51751)

Boot clamp crimping tool

Installing boot clamps

 — 

(J-44372)

Pull gauge

Measuring steering wheel turning force, rack sliding force and ball joint swinging force
Commercial Service Tool
Tool name Description

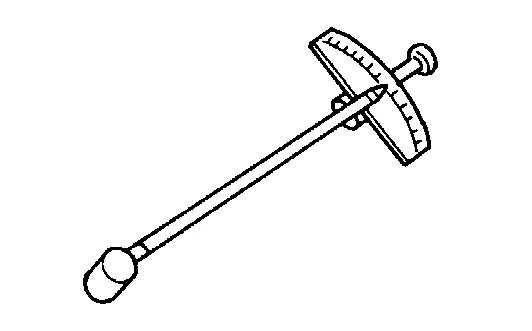

Preload gauge

Inspecting steering column rotating torque, pinion rotating torque and ball joint rotating torque

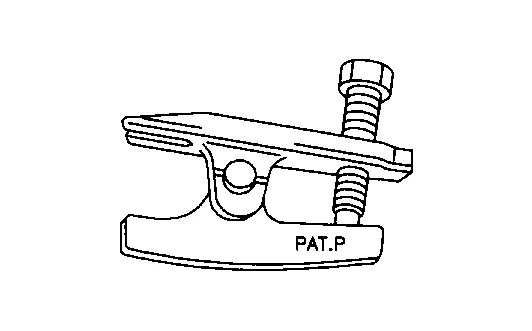

Ball joint remover

Remove steering outer socket

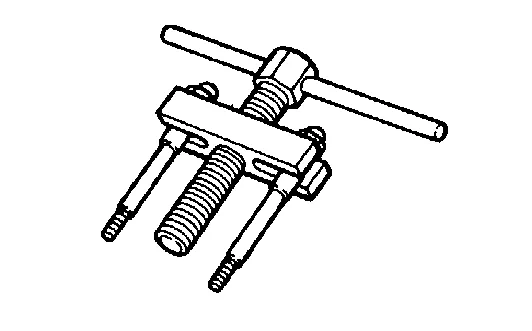

Steering wheel puller

Removing steering wheel
Power tool

Loosening nuts, screws and bolts

    Steering System :: Precaution. Precautions

    Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...
