Nissan Murano: Seat Belt :: Removal and Installation / Second Row Seat Belt

Nissan Murano (Z52) 2015-2024 Service Manual / Restraints / Seat Belt :: Removal and Installation / Second Row Seat Belt

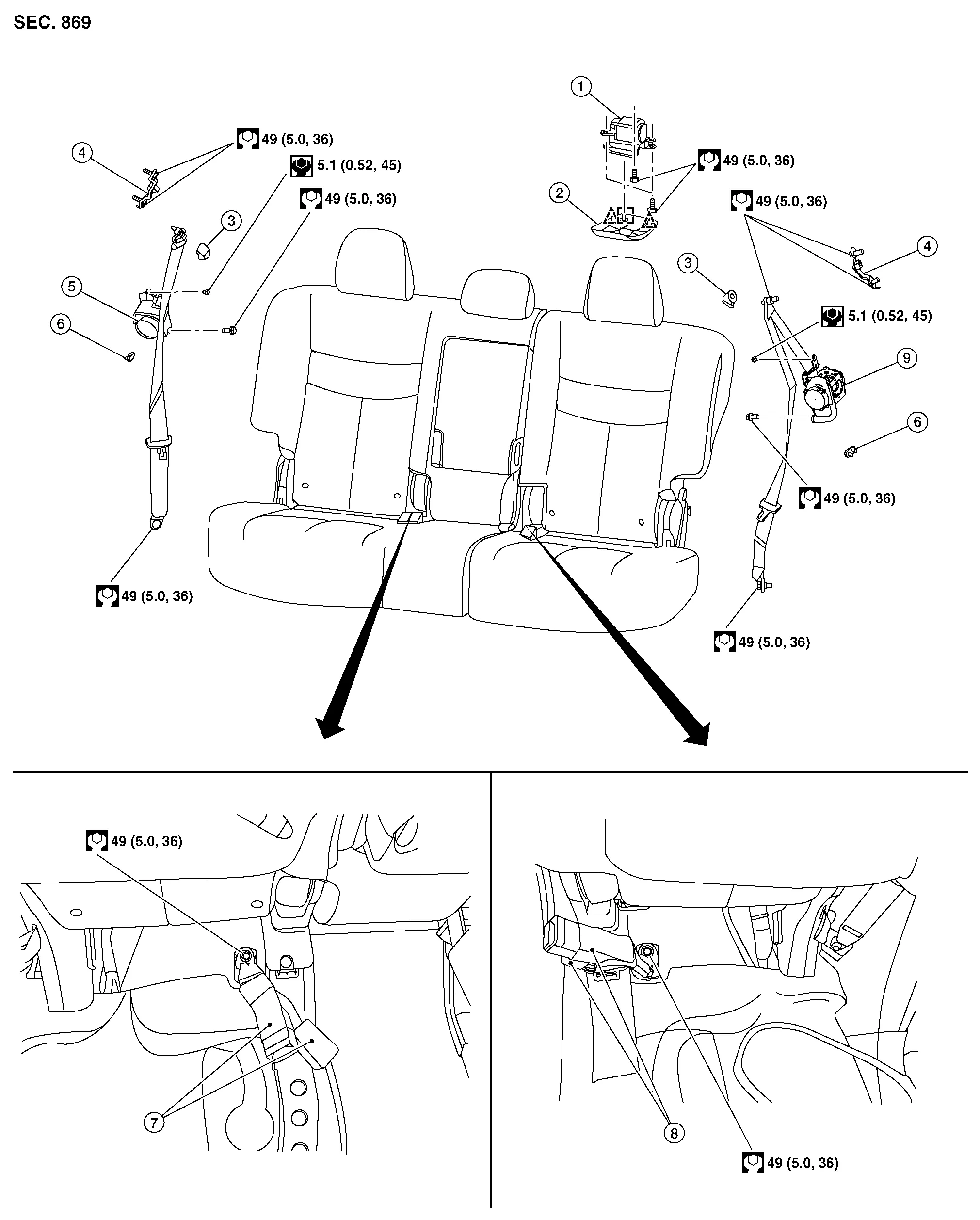

Exploded View

1.	Seat belt center retractor	2.	Seat belt center retractor finisher	3.	Seat belt D-ring bolt cover (LH/RH)
4.	Seat belt D-ring bracket (LH/RH)	5.	Seat belt retractor (RH)	6.	Seat belt hook (LH/RH)
7.	Seat belt buckle (RH/center)	8.	Seat belt buckle (LH/connector)	9.	Seat belt retractor (LH)
	Clip		Metal clip
