Nissan Murano: Driver Information & Multimedia / Warning Chime System :: Basic Inspection. Diagnosis and Repair Workflow

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Information & Multimedia / Warning Chime System :: Basic Inspection. Diagnosis and Repair Workflow

Work Flow

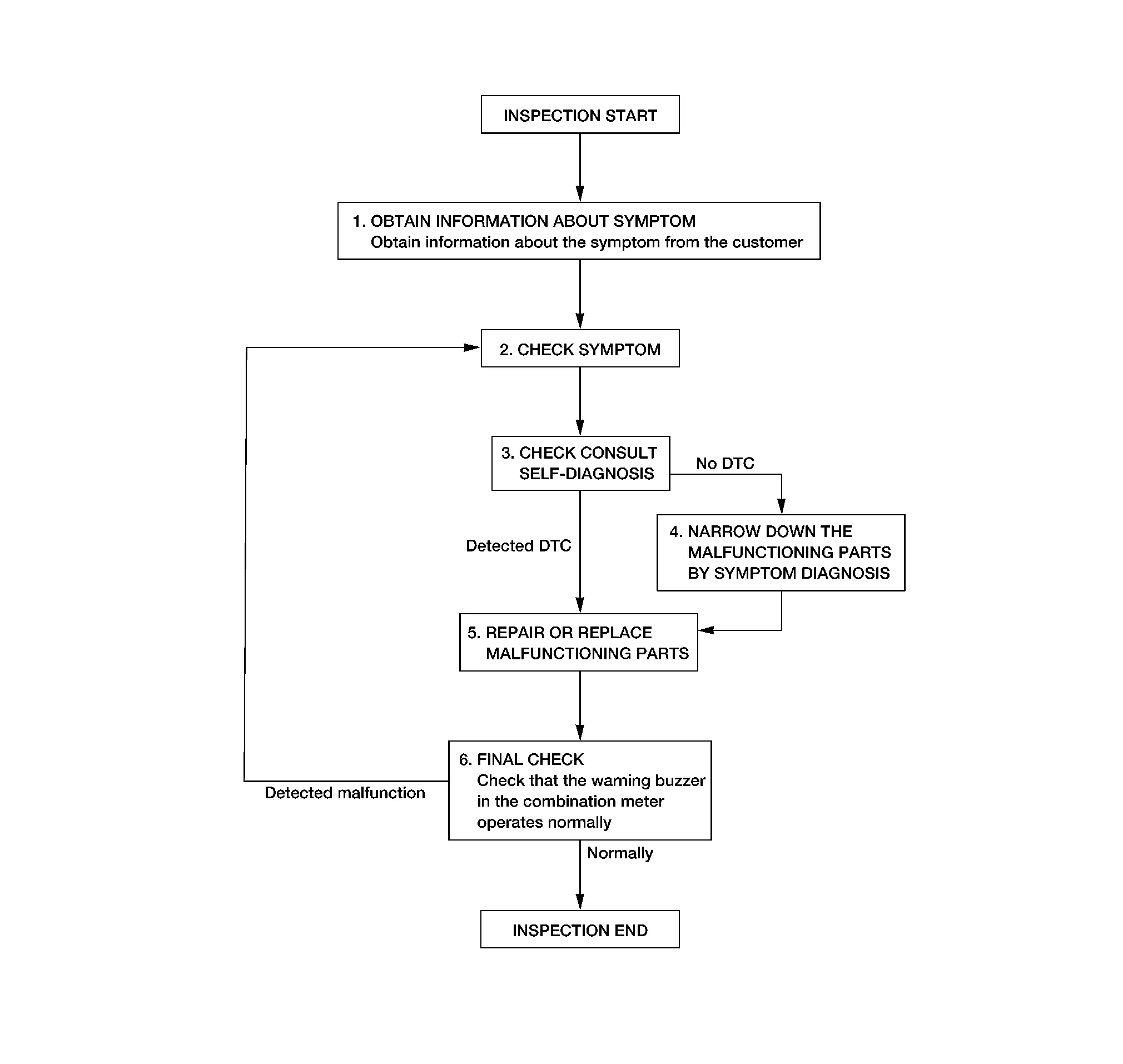

OVERALL SEQUENCE

DETAILED FLOW

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under which the malfunction occurred.

GO TO 2.

CHECK SYMPTOM

Check the symptom based on the information obtained from the customer.
Check if any other malfunctions are present.

GO TO 3.

CHECK CONSULT SELF DIAGNOSIS RESULT

CONSULT

Select "Self Diagnostic Result" mode of "METER/M&A". Refer to DTC Index.

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

GO TO 5.

NARROW DOWN MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS

Perform symptom diagnosis. Refer to Symptom Table.

GO TO 5.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace malfunctioning parts.

NOTE:

If DTC is displayed, erase DTC after repairing or replacing malfunctioning parts.

GO TO 6.

FINAL CHECK

Check that the warning buzzer in the combination meter operates normally.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

GO TO 2.
