Removal and Installation

REMOVAL

Lower headlining (rear). Refer to Exploded View.

Disconnect the harness connectors from the antenna feeder.

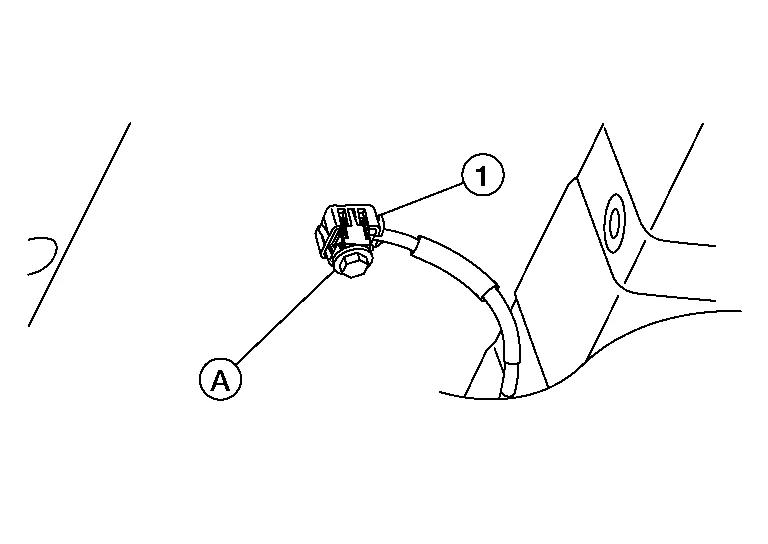

Loosen bolt (A) and remove roof antenna (1).

INSTALLATION

Installation is in the reverse order of removal.

Roof antenna nut

: 8 N·m (0.82 kg-m, 71 in-lb)

CAUTION:

If the roof antenna bolt is not tightened to the specified torque, lower sensitivity of the antenna may be experienced. If the bolt is tightened tighter than the specified torque, this will deform the roof panel.

Disassembly and Assembly

DISASSEMBLY

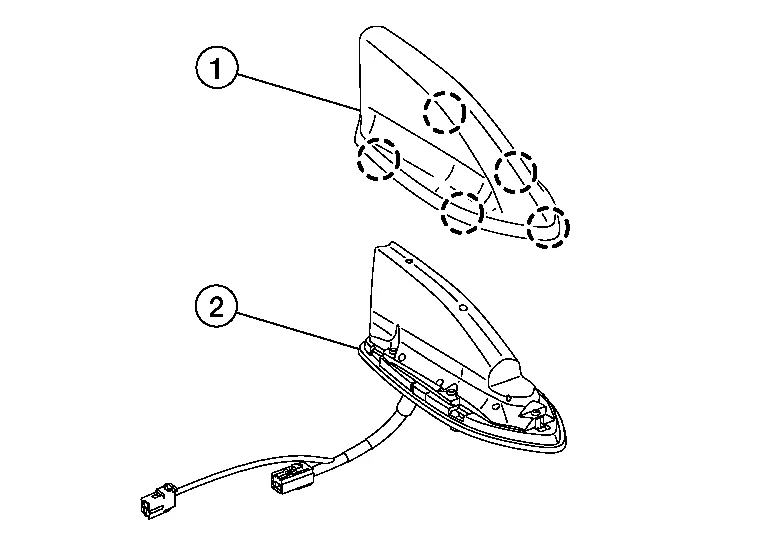

Using a suitable tool, release pawls between roof antenna (2) and the cover (1).

: Pawl

Remove the cover from roof antenna.

ASSEMBLY

Assembly is in the reverse order of disassembly.
