Nissan Murano: Wiper & Washer :: Removal and Installation / Rear Wiper Arm

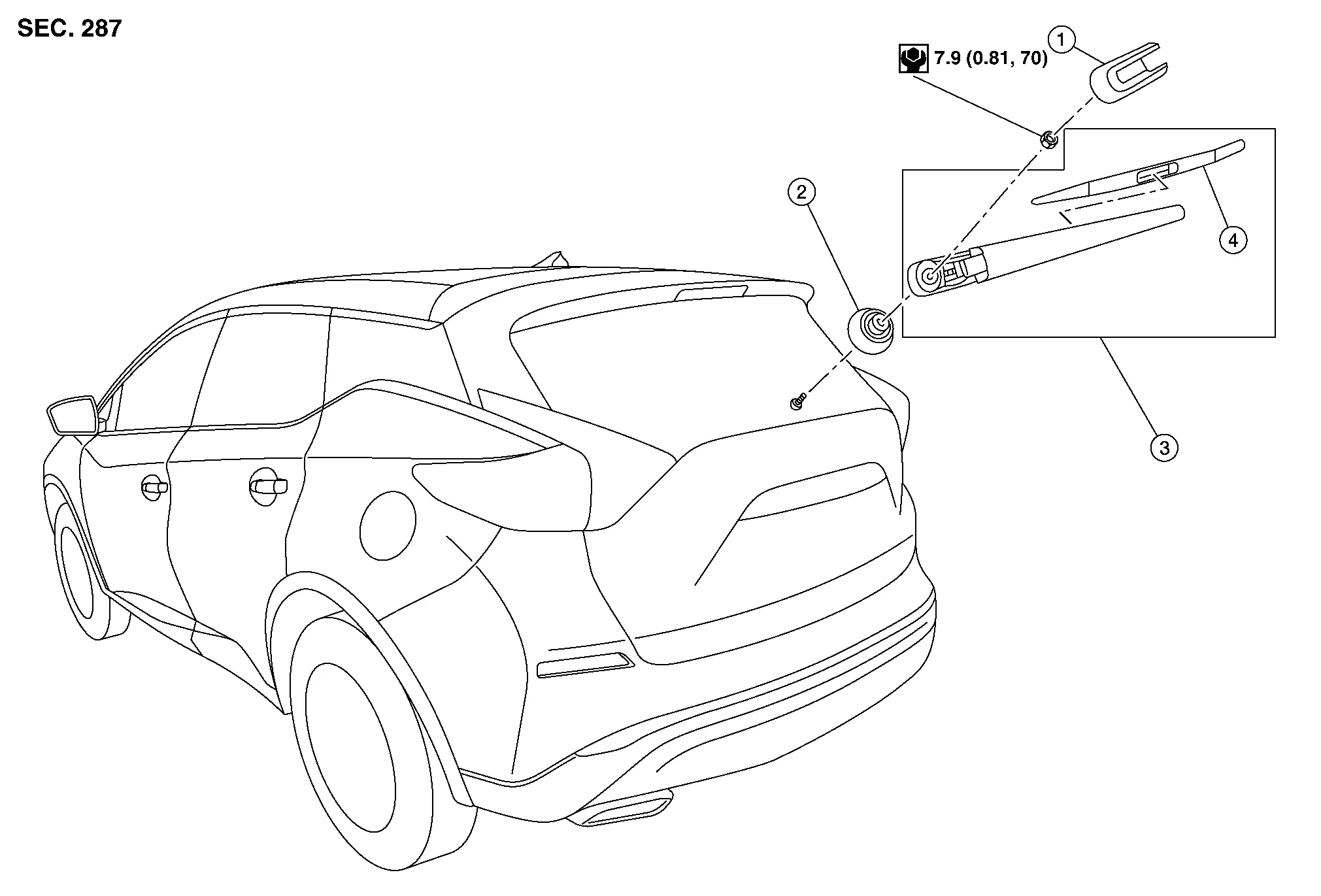

| 1. | Rear wiper arm cover | 2. | Seal | 3. | Rear wiper arm assembly |
| 4. | Rear wiper blade |
REMOVAL
Operate the rear wiper arm into the auto stop position.
Remove the rear wiper arm cover.
Remove the rear wiper arm nut.
Remove the rear wiper arm assembly.
INSTALLATION

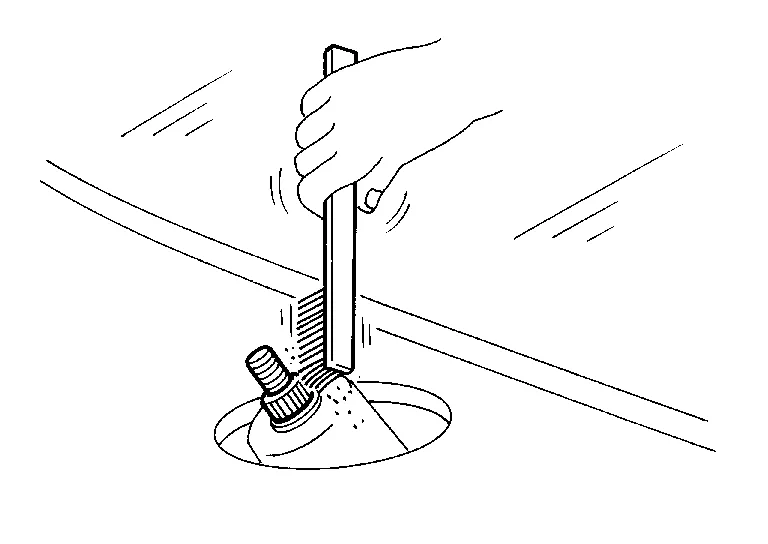

Clean the rear wiper arm mount as shown.
NOTE:
This will reduce the possibility of wiper arm looseness.
Operate the rear wiper motor to move it to the auto stop position.
Install the rear wiper arm by positioning the rear wiper blade in alignment with rear window defogger wire then tighten the rear wiper arm nut to specification. Refer to Inspection.
Install the rear wiper arm cover.
Check that the rear wiper blade stops at the specified position. Refer to Inspection.

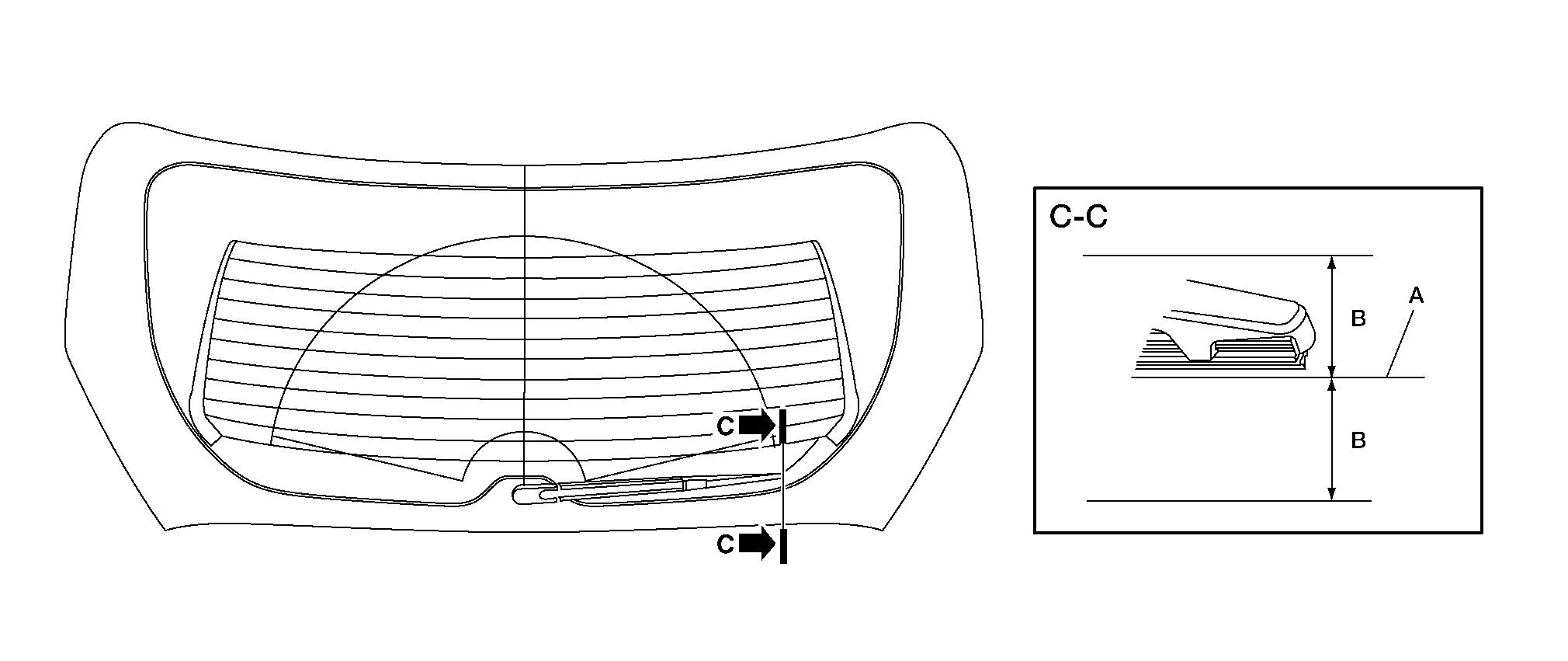

| A. | Rear window defogger wire | B. | 49.7 ± 7.5 mm (1.96 ± 0.30 in) |
Wiper and Washer Switch
Removal and Installation
The wiper and washer switch are serviced as an assembly with the combination switch assembly. Refer to Removal and Installation...
Rear Wiper Motor
Exploded View
1.
Seal
2.
Rear wiper motor
A.
Refer to Installation.
Removal and Installation
REMOVALRemove the rear wiper arm. Refer to Removal and Installation...
