Nissan Murano: Wheel Sensor / Rear Wheel Sensor
RH Side

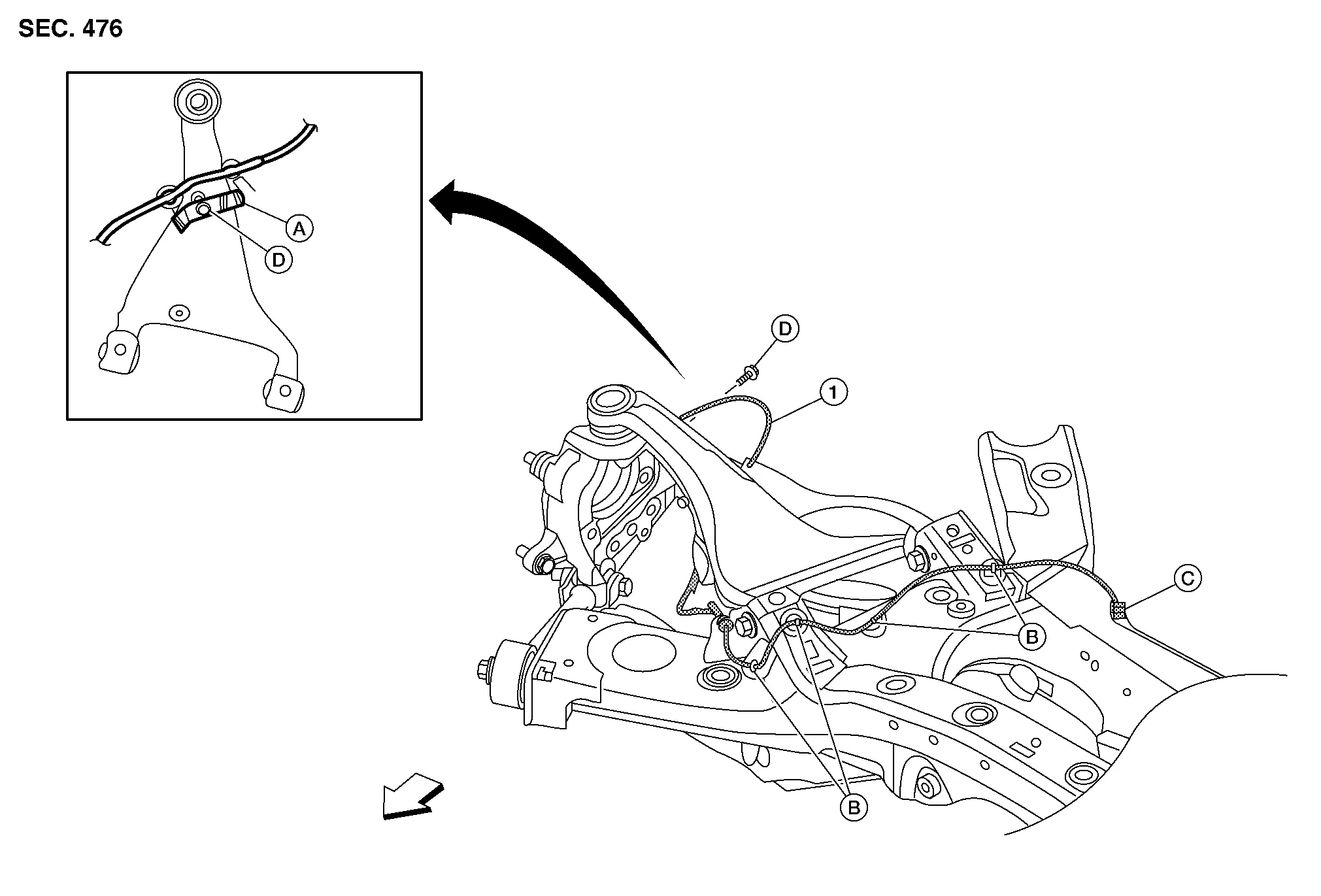

| 1. | Rear wheel sensor | A. | Rear wheel sensor bracket | B. | Clip |
| C. | Harness connector | D. | Refer to Removal and Installation. |  |
Front |
LH Side

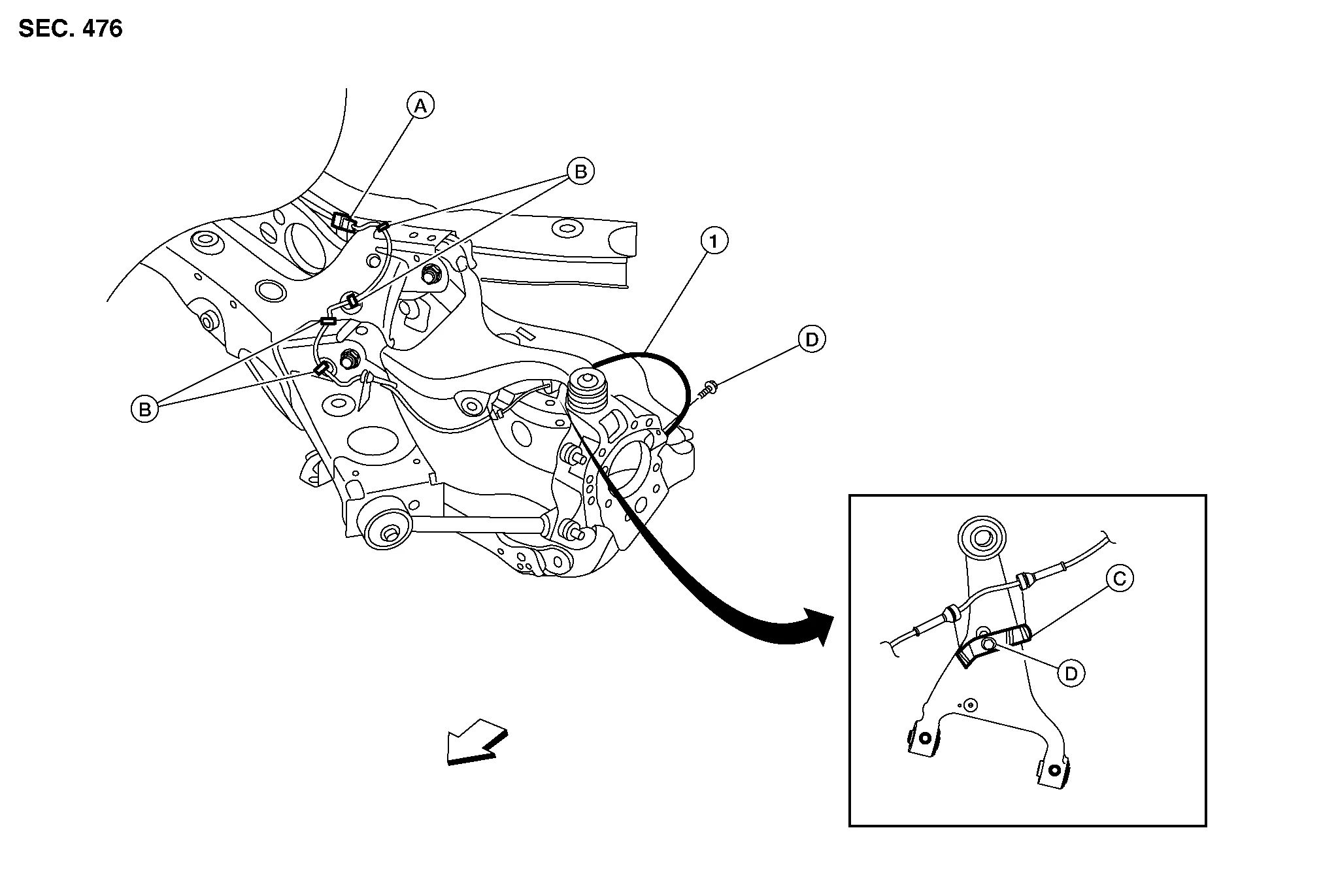

| 1. | Rear wheel sensor | A. | Harness connector | B. | Clip |
| C. | Rear wheel sensor bracket | D. | Refer to Removal and Installation. | |
Front |
CAUTION:
Do not damage rear wheel sensor or sensor rotor.
REMOVAL
Remove rear under cover. Refer to Removal and Installation.
Remove rear wheel and tire using power tool. Refer to Removal and Installation.
Remove rear wheel sensor bolt (1).
Disconnect harness connector from rear wheel sensor.
Remove rear wheel sensor from rear wheel sensor brackets.
Remove rear wheel sensor from rear knuckle.
CAUTION:
Pull out the rear wheel sensor being careful to turn it as little as possible. Do not pull on the rear wheel sensor harness.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
-
Before installing, make sure there is no foreign material, such as iron fragments, adhered to the pick-up part of the rear wheel sensor.
-
When installing, make sure there is no foreign material, such as iron fragments, on and in the hole in the rear knuckle for the rear wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove any foreign material and clean the mount.
-
Do not twist rear wheel sensor harness when installing rear wheel sensor. Check that grommet (2) is fully inserted to bracket (1). Check that rear wheel sensor harness is not twisted after installation.
-

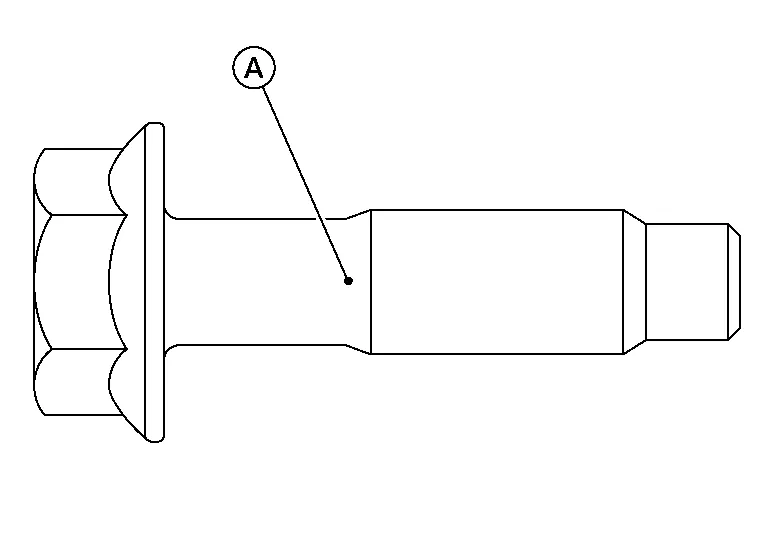

For tapered bolt (A) on rear knuckle, tighten bolt to specification.
Tightening torque : 8.0 N·m (0.82 kg-m, 71 in-lb) -
Except for tapered bolt (A) on rear knuckle, tighten bolt to specification.
Tightening torque : 10.0 N·m (1.0 kg-m, 89 in-lb) -
For tapered bolt (A) on rear suspension arm, tighten bolt to specification.
Tightening torque : 8.0 N·m (0.82 kg-m, 71 in-lb) -
Except for tapered bolt (A) on rear suspension arm, tighten bolt to specification.
Tightening torque : 10.0 N·m (1.0 kg-m, 89 in-lb)
Front Wheel Sensor
Exploded View
1.
Front wheel sensor
A.
Color line (slant line)
B.
Harness connector
C.
Refer to Removal and Installation.
Front
Removal and Installation
CAUTION:
Do not damage the front wheel sensor or sensor rotor...
