Nissan Murano: HomeLink® Universal Transceiver (if so equipped) / Programming HomeLink®

Nissan Murano 2015-2022 Owners Manual / Instruments and controls / HomeLink® Universal Transceiver (if so equipped) / Programming HomeLink®

If you have any questions or are having difficulty programming your HomeLink® buttons, refer to the HomeLink®website at: www.homelink.com or call 1-800-355-3515.

NOTE:

Place the ignition switch in the ACC position (if so equipped) when programming HomeLink®. It is also recommended that anewbattery be placed in the hand-held transmitter of the device being programmed to HomeLink® for quicker programming and accurate transmission of the radio frequency.

  1. Position the end of your hand-held transmitter 1–3 in (2–8 cm) away from the HomeLink® surface, keeping the HomeLink® indicator light Nissan Murano. Programming HomeLink® in view.

    Nissan Murano. Programming HomeLink®

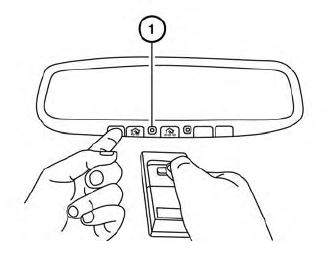

  2. Using both hands, simultaneously press and hold the desired HomeLink® button and hand-held transmitter button. DO NOT release until the HomeLink® indicator light Nissan Murano. Programming HomeLink® flashes slowly and then rapidly. When the indicator light flashes rapidly, both buttons may be released. (The rapid flashing indicates successful programming.)

    Nissan Murano. Programming HomeLink®

    NOTE:

    Somedevicesmayrequire you to replace Step 2 with the cycling procedure noted in “Programming HomeLink® for Canadian customersandgate openers” in this section.

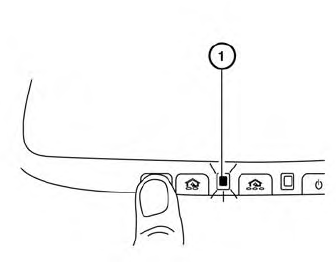

  3. Press and hold the programmed HomeLink® button and observe the indicator light.
    • If the indicator light Nissan Murano. Programming HomeLink® is solid/continuous, programming is complete and your device should activate when the HomeLink® button is pressed and released.
    • If the indicator light Nissan Murano. Programming HomeLink® blinks rapidly for 2 seconds and then turns to a solid/continuous light, continue with Steps 4-6 for a rolling code device. A second person may make the following steps easier. Use a ladder or other device. Do not stand on your vehicle to perform the next steps.
  4. At the receiver located on the garage door opener motor in the garage, locate the “learn” or “smart” button (the name and color of the button may vary by manufacturer but it is usually located near where the hanging antenna wire is attached to the unit). If there is difficulty locating the button, reference the garage door opener’s manual.
  5. Press and release the “learn” or “smart” button.
  6. Return to the vehicle and firmly press and hold the trained HomeLink® button for 2 seconds and release. Repeat the “press/hold/release” sequence up to three times to complete the training process. HomeLink® should now activate your rolling code equipped device.
  7. If you have any questions or are having difficulty programming your HomeLink® buttons, refer to the HomeLink® web site at:www.homelink.comor call 1-800- 355-3515.

    HomeLink® Universal Transceiver (if so equipped)

    The HomeLink® Universal Transceiver provides a convenient way to consolidate the functions of up to three individual handheld transmitters into one built-in device...

    Programming HomeLink® for Canadian customers and gate openers

    Canadian radio-frequency laws require transmitter signals to “time-out” (or quit) after several seconds of transmission – which may not be long enough for HomeLink® to pick up the signal during training...
