Nissan Murano: Engine / Exhaust System :: Removal and Installation. Exhaust System

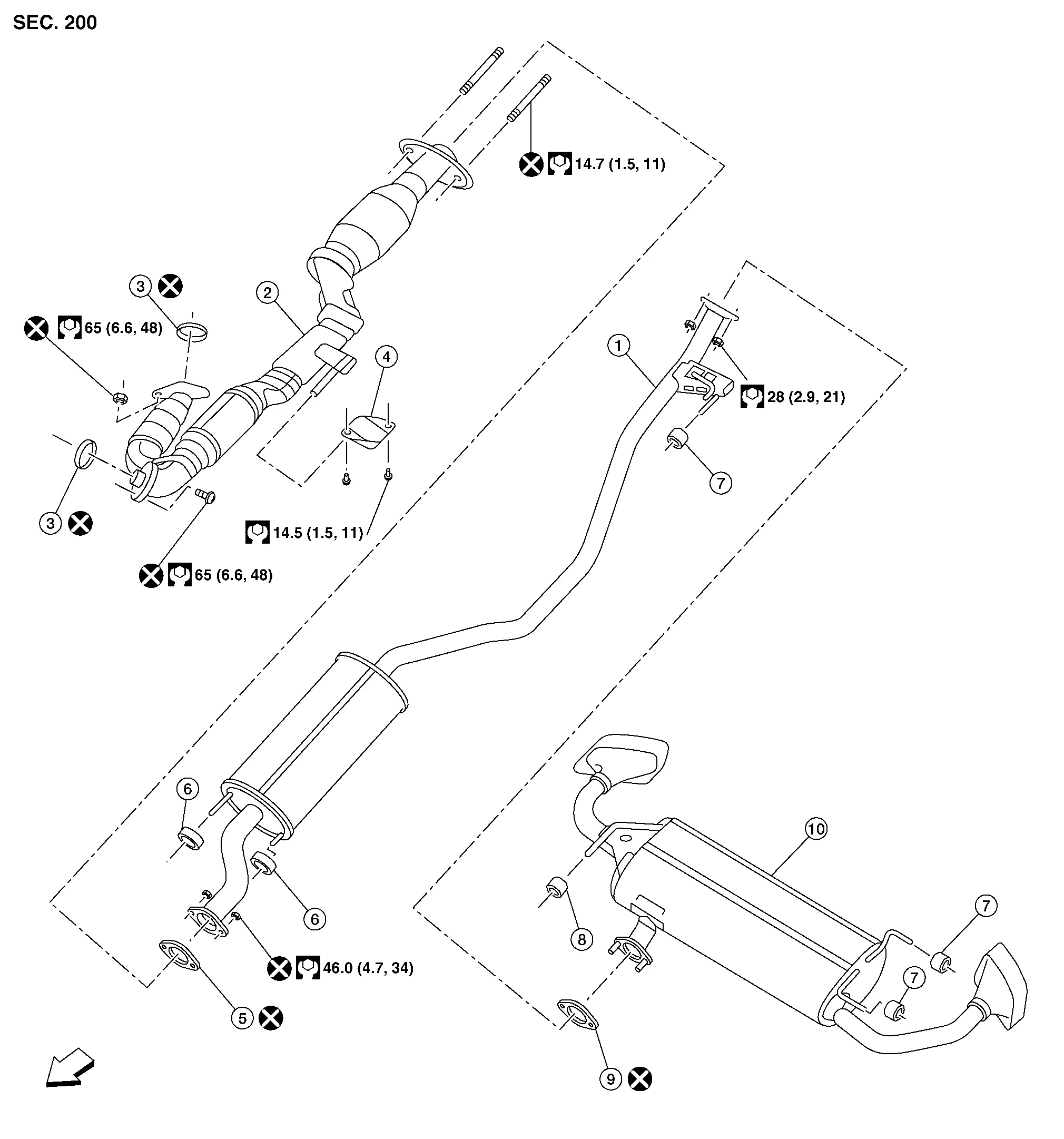

Exploded View

1.	Center exhaust tube	2.	Front exhaust tube	3.	Ring gasket
4.	Front exhaust tube bracket	5.	Gasket	6.	Mounting rubber
7.	Mounting rubber	8.	Mounting rubber	9.	Gasket
10.	Muffler		Front

WARNING:

• Perform the procedure with the exhaust system fully cooled down because the system will be hot just after the engine is turned off.

• Be careful not to cut your hand on the insulator edges.

CAUTION:

• Use Genuine NISSAN exhaust system parts or equivalent, which are specifically designed for heat resistance, corrosion resistance, and shape.

REMOVAL

Remove exhaust system components using a power tool.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse exhaust gaskets.

• Do not reuse ring gaskets.

• Do not reuse nuts.

• Do not allow anti-corrosive wax to contact exhaust system components.

• Ensure flexible exhaust tube is free from deformation.

• If any mounting insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the mounting insulator, clean and inspect it.

• When installing the insulator, avoid large gaps or interference between the insulator and each exhaust pipe.

• Remove deposits from the sealing surface of each connection. Connect them securely to avoid exhaust gas leaks.

• Temporarily tighten the exhaust manifold side nuts and the Nissan Murano vehicle side bolts. Check each part for any interference, and then tighten the nuts and bolts to specification.

• When installing each mounting rubber, avoid twisting or excessive extension in up/down and right/left directions.

• Tighten the bolts without causing interference with the flange.
