Nissan Murano: Audio, Visual & Navigation System :: Display Audio System - With 8" Color Display / Preparation. Preparation

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Information & Multimedia / Audio, Visual & Navigation System :: Display Audio System - With 8" Color Display / Preparation. Preparation

Special Service Tool

The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name		Description
— (J-46534) Trim Tool Set		Removing trim components

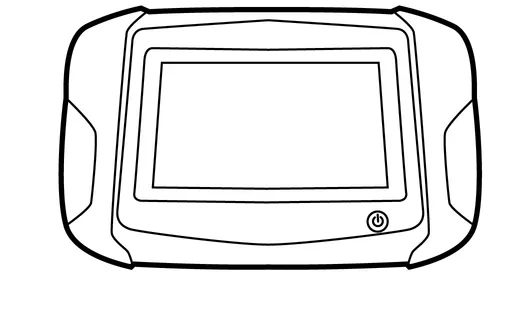

— (J-51922) Enhanced Multi-Media Interface Tester (EMMIT)		Tests the functionality of the following features: Bluetooth Pairing/Connecting Phonebook Access Profile Hands Free Profile (for calls) Bluetooth Audio test Message Access Profile (for text messages, if equipped) USB Tests USB music playback Tests USB music browsing capability AUX Tests AUX Jack playback

Commercial Service Tools

Tool name		Description
Power tool		Loosening nuts, screws and bolts

Precaution. Precautions

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...

System Description
