Nissan Murano: Rear Disc Brake / Disc Brake Rotor

Nissan Murano (Z52) 2015-2024 Service Manual / Brakes / Brake System :: Removal and Installation / Rear Disc Brake / Disc Brake Rotor

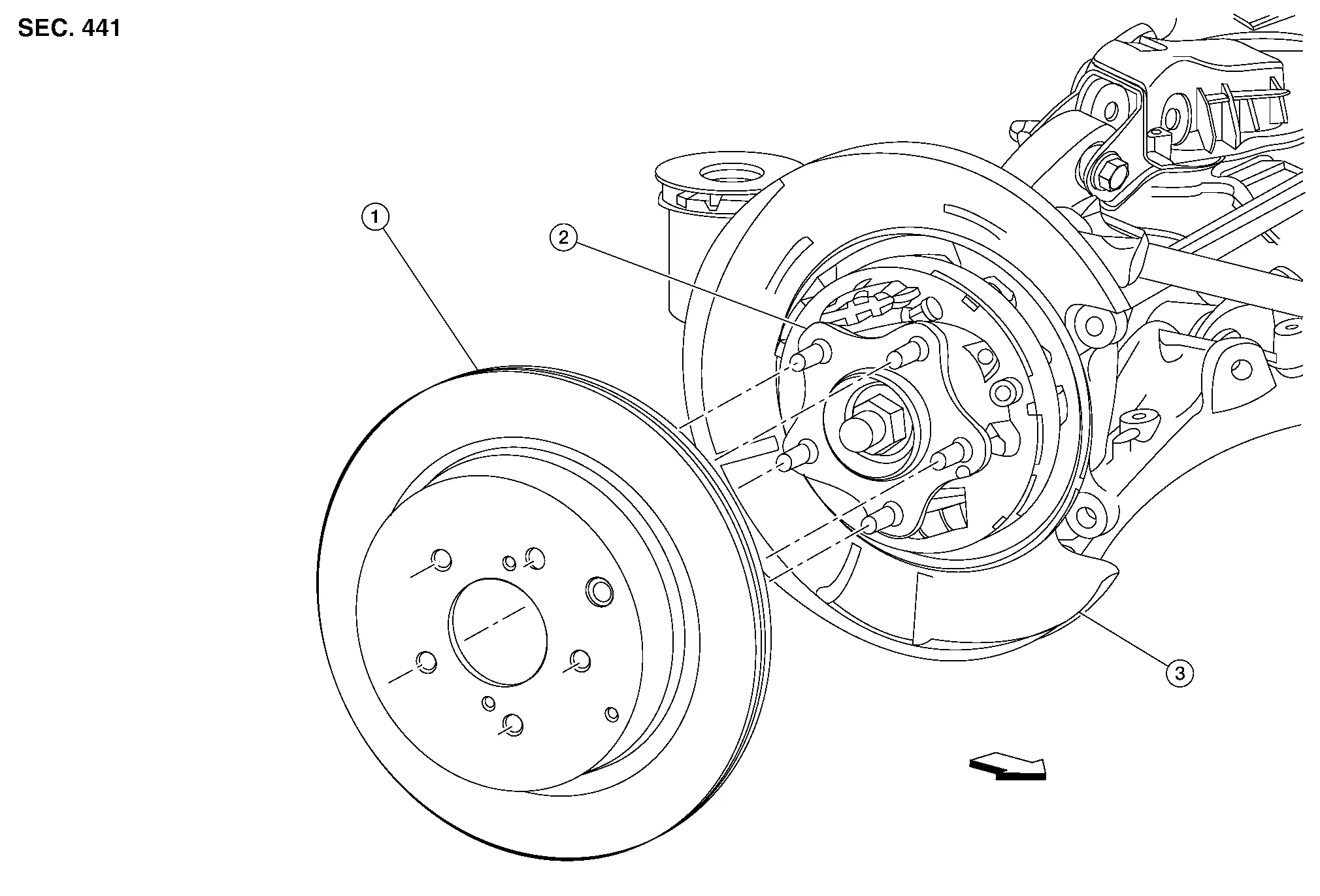

Exploded View

1.	Rear disc brake rotor	2.	Rear wheel hub and bearing	3.	Splash guard
	Front

Removal and Installation

REMOVAL

Remove rear wheels and tires using power tool. Refer to Removal and Installation.

Remove rear brake caliper torque member bolts. Leaving brake hose attached, reposition brake caliper aside with wire. Refer to Exploded View.

Place alignment marks (A) on rear disc brake rotor and wheel hub and bearing, then remove rear disc brake rotor.

CAUTION:

Do not drop the disc brake rotor.

INSTALLATION

Installation is in the reverse order of removal.
