Nissan Murano: Component Parts / Power Door Lock System

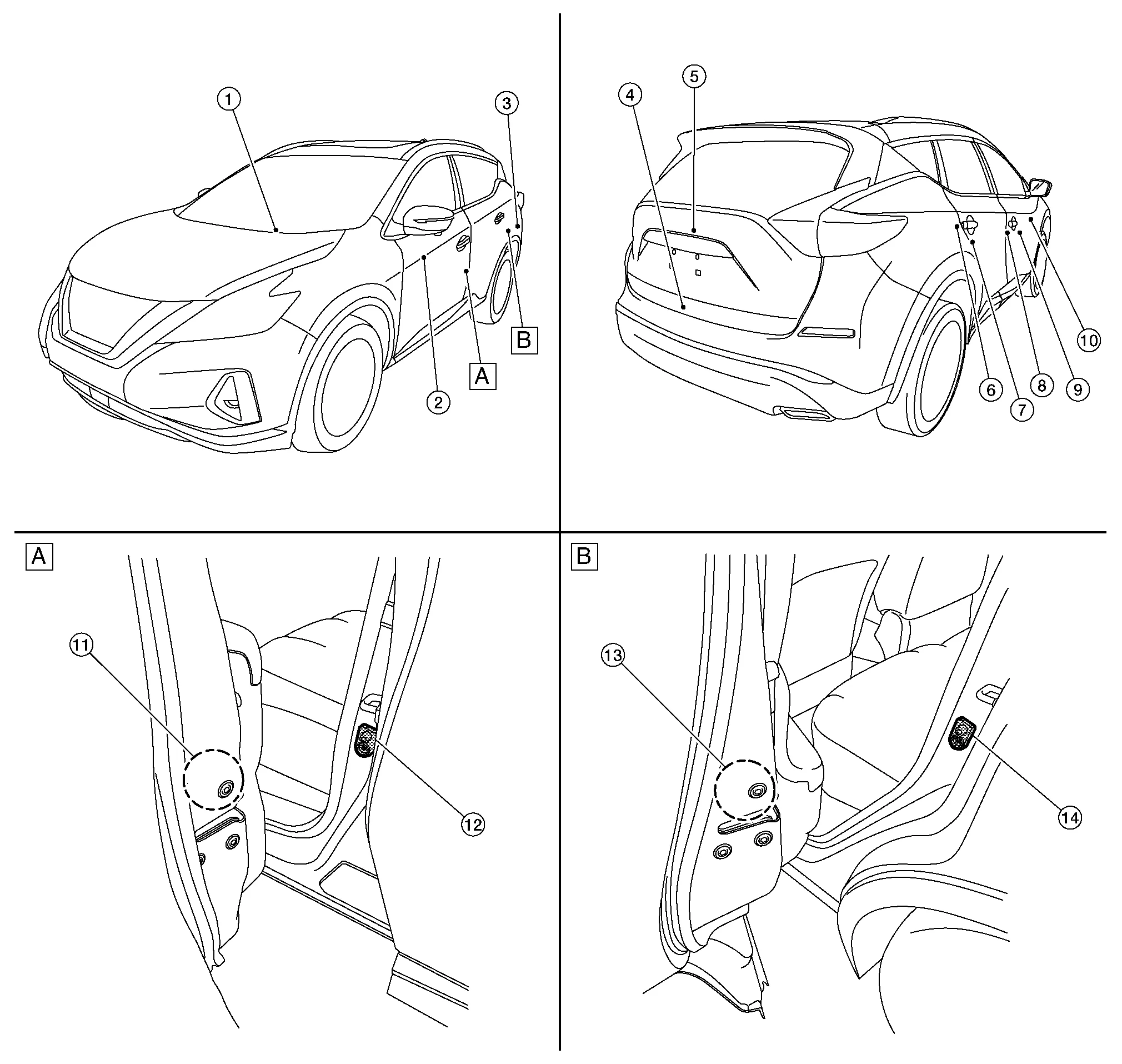

| A. | View of left front door | B. | View of left rear door |
| No. | Component | Function |
|---|---|---|
| 1. |
BCM (Body Control Module) |
BCM controls the door lock system. Refer to Component Parts Location for detailed component location. |
| 2. | Main power window and door lock/unlock switch | Refer to Door Lock and Unlock Switch (Driver Side). |
| 3. | Automatic back door control module (if equipped) | Refer to Automatic Back Door Control Module. |
| 4. | Back door lock assembly | Refer to Back Door Lock Assembly. |
| 5. | Back door opener switch | Refer to Back Door Opener Switch. |
| 6. | Rear door switch RH | Refer to Rear Door Switch. |
| 7. | Rear door lock actuator RH | Rear door lock actuator locks/unlocks the rear door latch assembly. |
| 8. | Front door switch RH | Refer to Front Door Switch. |
| 9. | Front door lock actuator RH | Front door lock actuator locks/unlocks the front door latch assembly. |
| 10. | Power window and door lock/unlock switch RH | Refer to Door Lock and Unlock Switch (Passenger Side). |
| 11. | Front door lock assembly LH | Refer to Front Door Lock Assembly LH. |
| 12. | Front door switch LH | Refer to Front Door Switch. |
| 13. | Rear door lock actuator LH | Rear door lock actuator locks/unlocks the rear door latch assembly. |
| 14. | Rear door switch LH | Refer to Rear Door Switch . |
