Removal and Installation

REMOVAL

Remove the headlining. Refer to Removal and Installation.

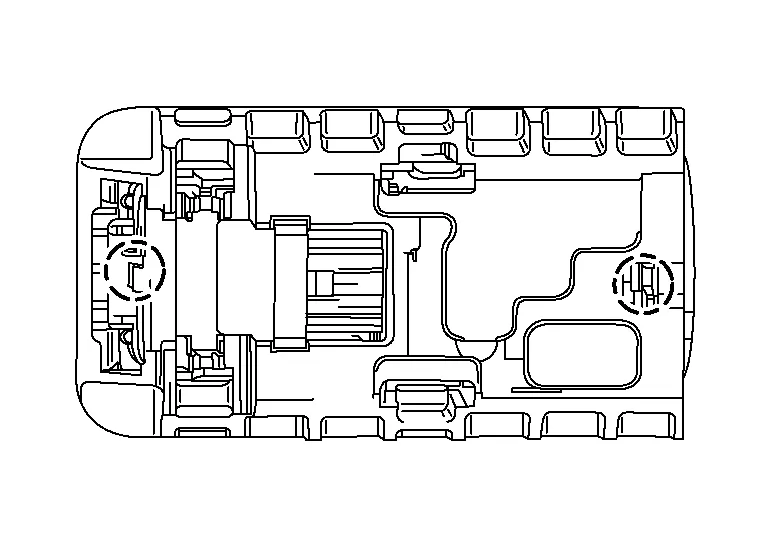

Release pawls using a suitable tool and remove personal lamp 2nd row.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

The personal lamp 2nd row bulb is an LED and is serviced with the personal lamp 2nd row. Refer to Removal and Installation.
