Nissan Murano: Interior Lighting System :: Removal and Installation / Glove Box Lamp
Removal and Installation
WARNING:
Do not touch bulb while it is lit or right after being turned OFF. Burning may result.
CAUTION:
Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to bulb.
REMOVAL

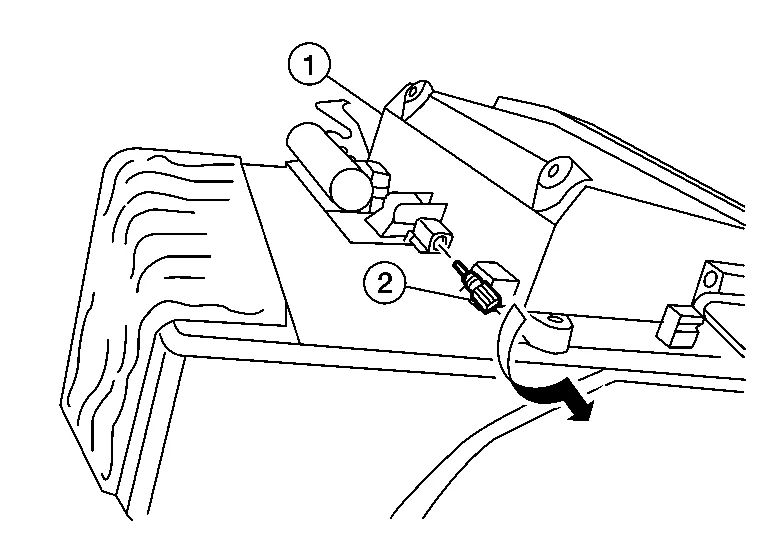

Remove the glove box assembly (1). Refer to Removal and Installation.

Rotate the glove box lamp socket assembly (2) counterclockwise and remove.
INSTALLATION
Installation is in the reverse order of removal.
Bulb Replacement
The glove box lamp bulb is serviced as part of the glove box lamp socket. Refer to Removal and Installation.
