Nissan Murano: Roof :: Removal and Installation / Moonroof Switch

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Roof :: Removal and Installation / Moonroof Switch

Removal and Installation

REMOVAL

Remove map lamp assembly. Refer to Removal and Installation.

Remove center pillar upper finisher. Refer to Removal and Installation.

Remove sun visor (LH). Refer to Exploded View.

Partially lower front of headlining. Refer to Exploded View.

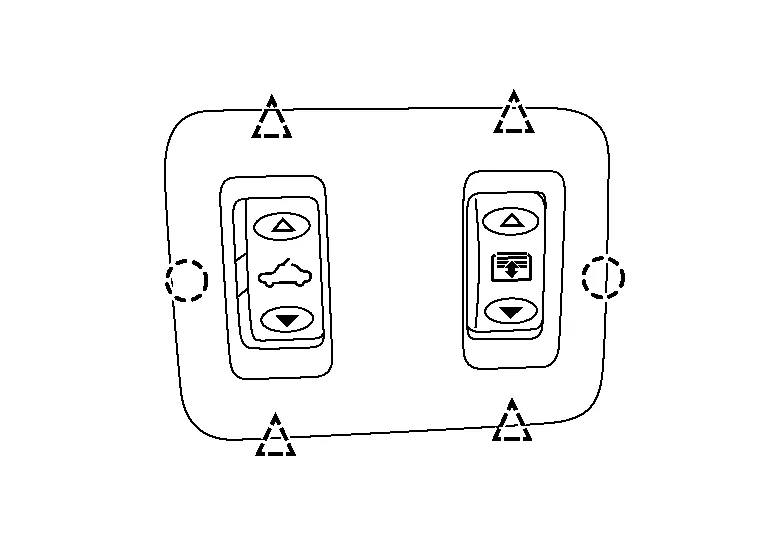

Using a suitable tool, release clips and pawls.

	: Clip
	: Pawl

Disconnect harness connectors and remove moonroof switch.

INSTALLATION

Installation is in the reverse order of removal.
