Remove front room\map lamp assembly. Refer to Removal and Installation.

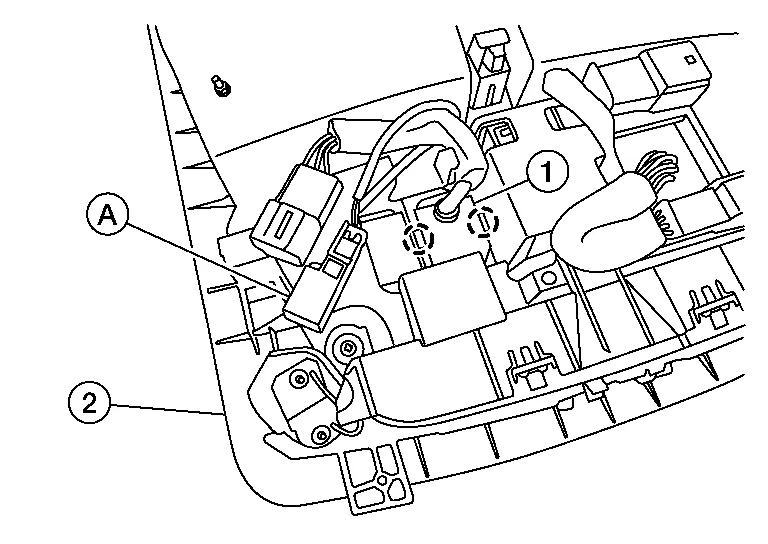

Disconnect the harness connector (A) from front room\map lamp assembly (2).
Release pawls and remove microphone (1).
Installation is in the reverse order of removal.
