Nissan Murano: Meter, Warning Lamp & Indicator :: Removal and Installation / Combination Meter

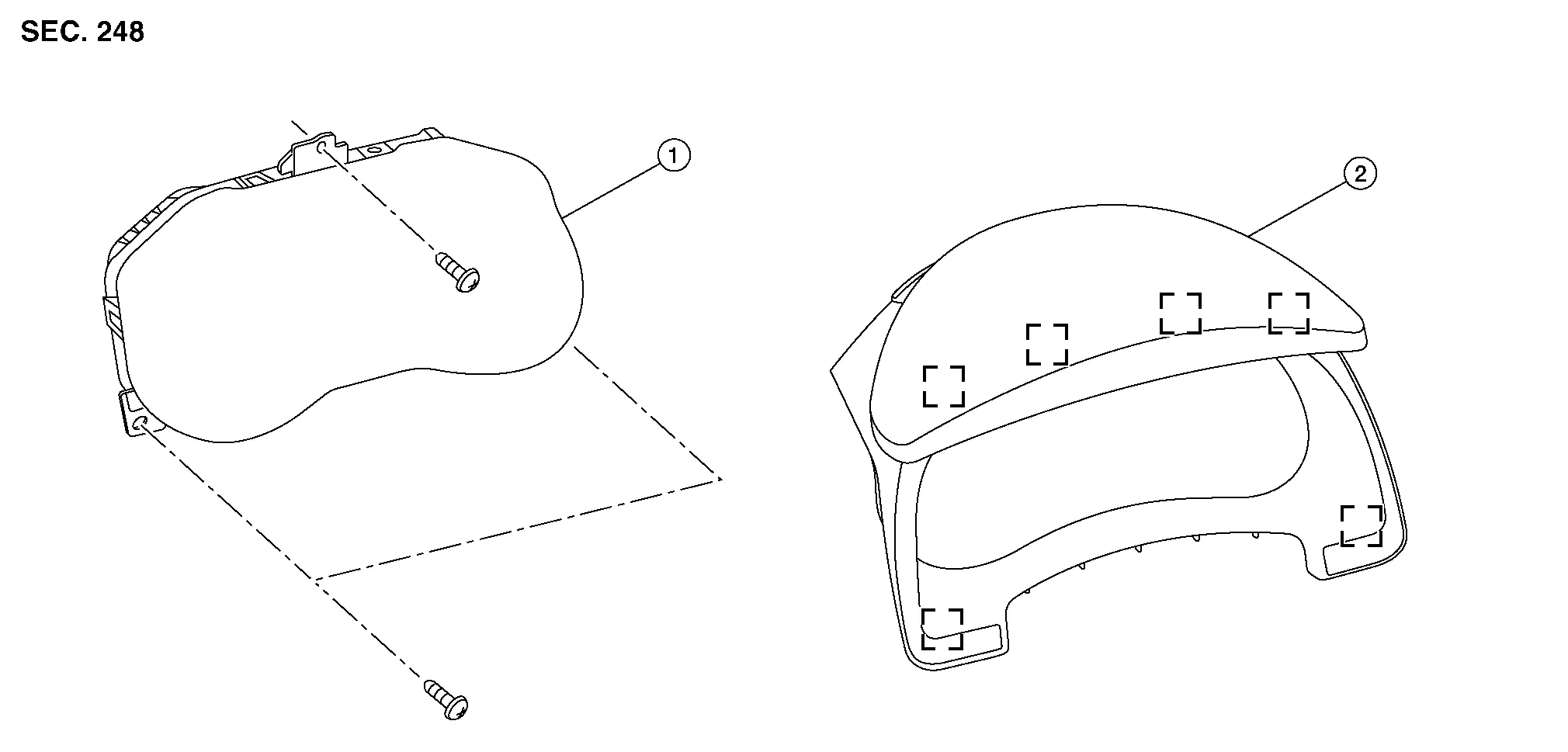

| 1. | Combination meter | 2. | Cluster lid A |  |
Metal clip |
REMOVAL
CAUTION:
Never install a combination meter from an Advanced Driver Assistance System (ADAS) equipped Murano Nissan Murano vehicle into a non-ADAS equipped vehicle, or vice versa. If this occurs, the Automatic Emergency Braking (AEB) warning lamp will illuminate and will stay on. The combination meter will need to be replaced.
NOTE:
Do not swap combination meter modules between Nissan Murano vehicles for any reason.
Remove cluster lid A. Refer to Removal and Installation.
Remove combination meter screws.
Remove combination meter then disconnect harness connector.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Do not swap combination meter modules between Nissan Murano vehicles for any reason.
Meter Control Switch
Removal and Installation
REMOVALNOTE:
The illumination control switch and trip reset switch are serviced as an assembly.
Remove instrument lower panel LH (1)...
