Nissan Murano: Component Parts / Lumbar Support System

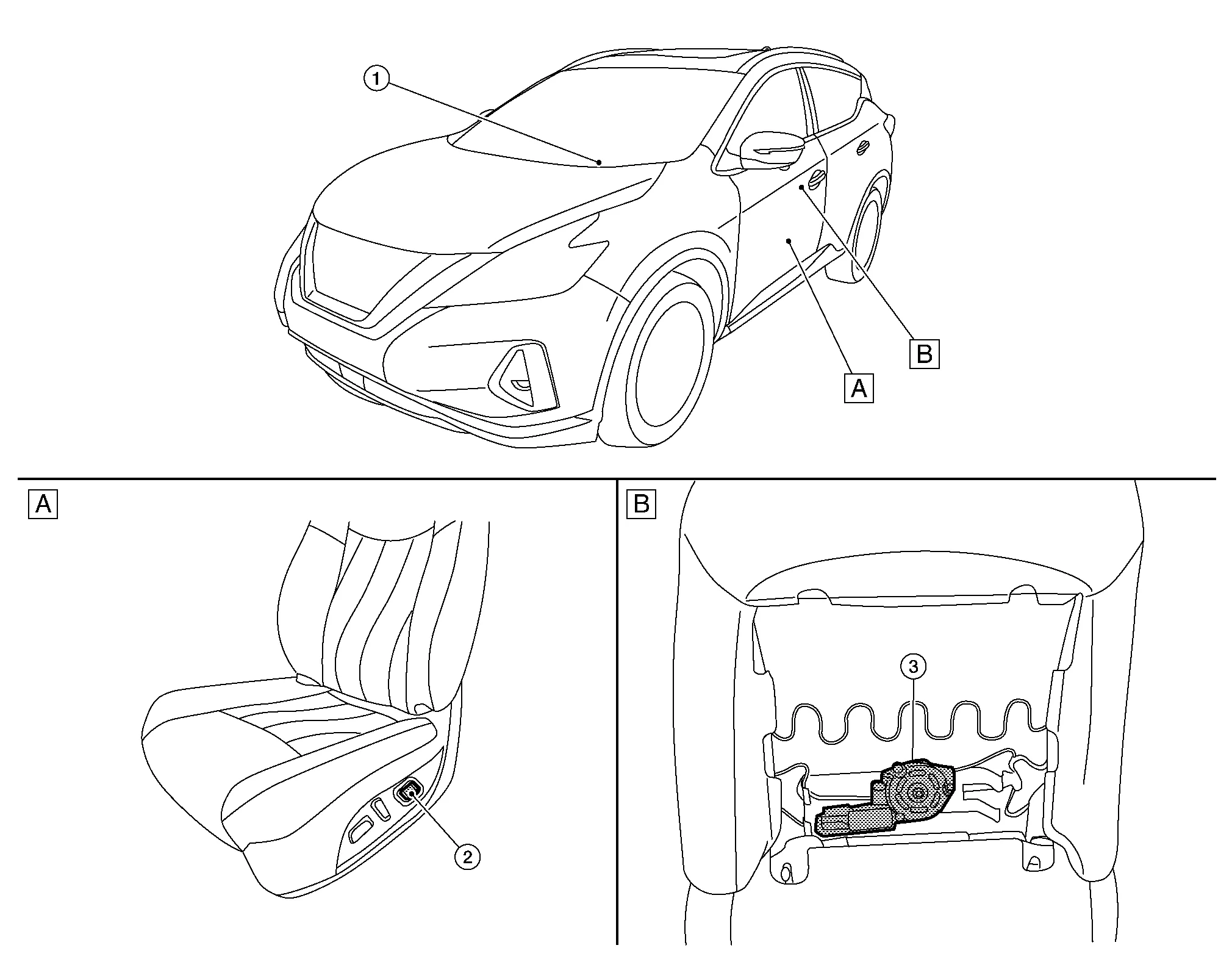

| A. | LH side of front seat LH (view with seat removed) | B. | Back side of front seat LH (view with finisher removed) |
| No. | Component | Function |
|---|---|---|
| 1. |
BCM (Body Control Module) |
Supplies power from battery to lumbar support switch. |
| 2. | Lumbar support switch | Refer to Lumbar Support Switch. |
| 3. | Lumbar support motor | Refer to Lumbar Support Motor . |
-

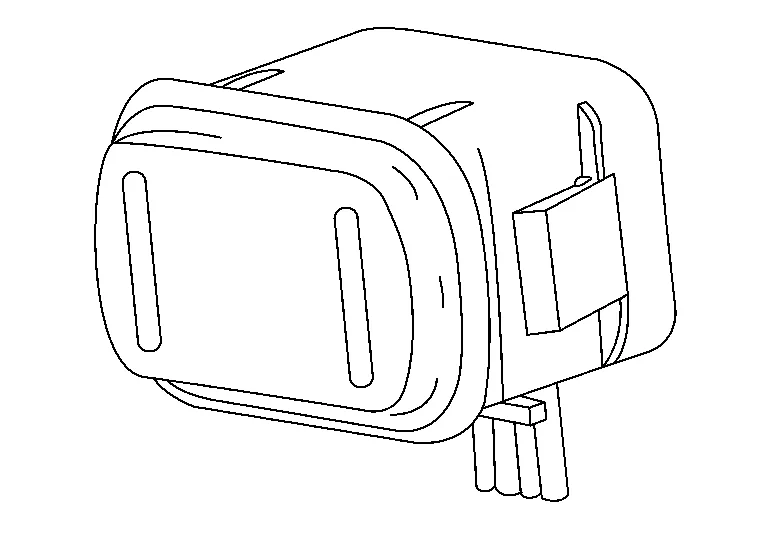

Installed on seat cushion outer finisher LH.
-
Controls the power supplied to lumbar support motor.
-

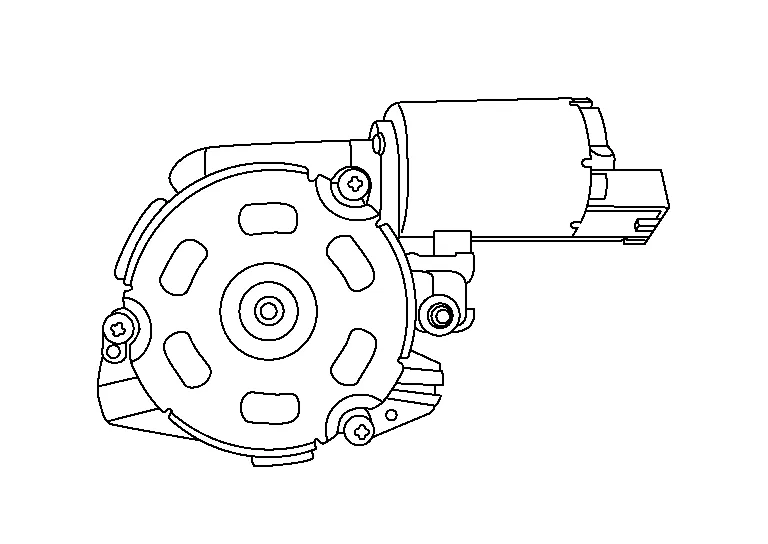

Lumbar support motor is installed in the seat back frame assembly.
-
With power supplied to lumbar support switch, the lumbar support motor operates the forward and backward movement of seat back support.
