Nissan Murano: Component Parts / Power Seat System

Nissan Murano (Z52) 2015-2024 Service Manual / Body Interior / Seat :: System Description / Component Parts / Power Seat System

Component Parts Location

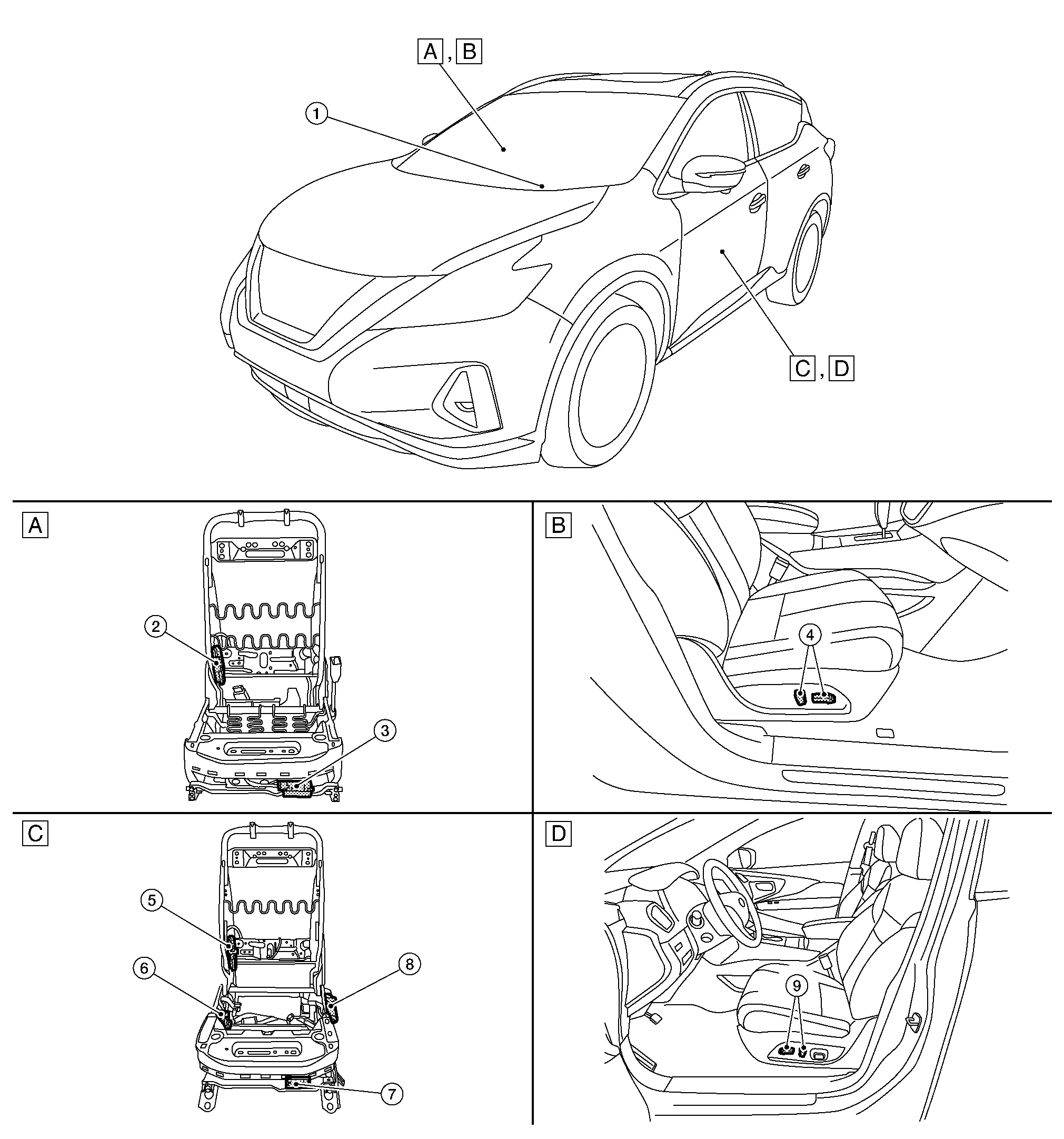

A.	Front seat RH (view with cushions removed)	B.	RH side of front seat RH	C.	Front seat LH (view with cushions removed)
D.	LH side of front seat LH

No.	Component	Function
1.	BCM (Body Control Module)	Supplies the power received from battery to power seat switch.
2.	Reclining motor RH	Refer to Reclining Motor .
3.	Sliding motor RH	Refer to Sliding Motor.
4.	Power seat switch RH	Refer to Power Seat Switch.
5.	Reclining motor LH	Refer to Reclining Motor .
6.	Lifting motor LH (front)	Refer to Lifting Motor .
7.	Sliding motor LH	Refer to Sliding Motor.
8.	Lifting motor LH (rear)	Refer to Lifting Motor .
9.	Power seat switch LH	Refer to Power Seat Switch.

Power Seat Switch

Installed on seat cushion outer finisher. (LH shown, RH similar)
Built-in reclining switch, sliding switch and lifting switch, controls the power supplied to each motor.

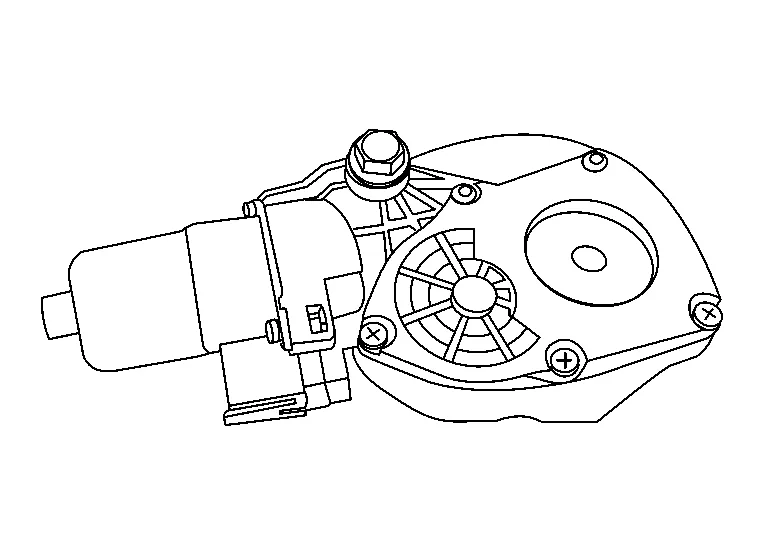

Sliding Motor

Sliding motor is installed to the seat frame assembly.
Slides the seat forward/backward by changing the rotation direction of sliding motor.

Lifting Motor

Lifting motor is installed to seat frame assembly [Only front seat LH is equipped with a lifting motor (front) and a lifting motor (rear)].
Seat frame assembly is moved upward/downward by changing the rotation direction of lifting motor.

Reclining Motor

Reclining motor is installed to seat frame assembly.
Seat back is reclined forward/backward by changing the rotation direction of reclining motor.
