Nissan Murano: Component Parts / Heated Seat System

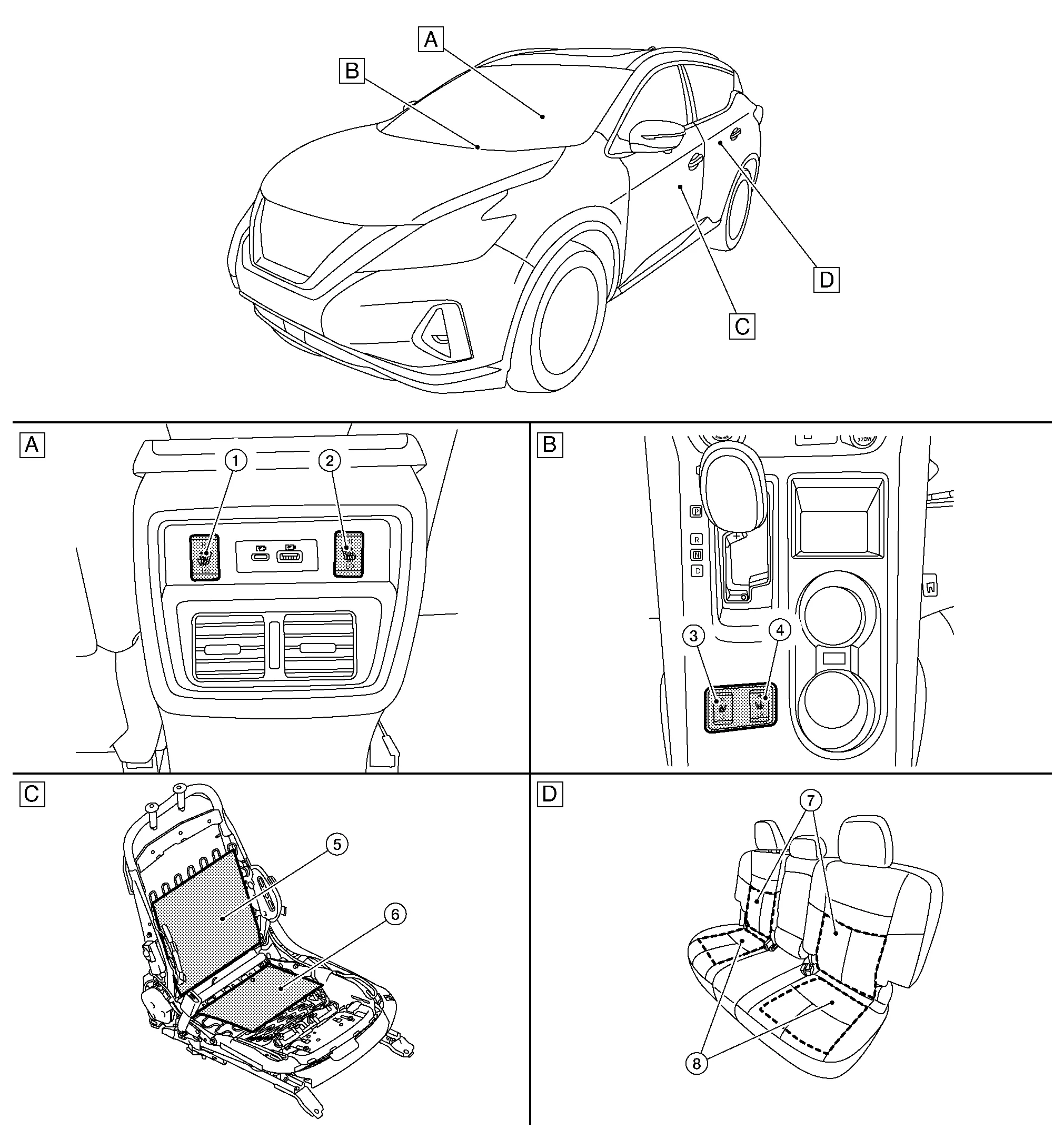

| A. | Rear of center console | B. | Front of center console | C. | Front seat LH (RH similar) (view with seat and cushions removed) |
| D. | 2nd row seats | ||||
| No. | Component | Function |
|---|---|---|
| 1. | 2nd row heated seat switch LH | Refer to Second Row Heated Seat Switch. |
| 2. | 2nd row heated seat switch RH | |
| 3. | Front heated seat switch LH | Refer to Front Heated Seat Switch. |
| 4. | Front heated seat switch RH | |
| 5. | Seat heater (back) LH (RH similar) | Refer to Front Seat Heater. |
| 6. | Seat heater (cushion) LH (RH similar) | |
| 7. | 2nd row seat heater (back) | Refer to Second Row Seat Heater. |
| 8. | 2nd row seat heater (cushion) |
-
Front heated seat switches are installed in the console.
-
Front heated seat switch changes ON/OFF operation and HIGH/LOW operation, and supplies power source to front heated seats.
-
Second row heated seat switches are installed in the rear side of console.
-
Second row heated seat switch changes ON/OFF operation and HIGH/LOW operation, and supplies power source to second row heated seats.
-

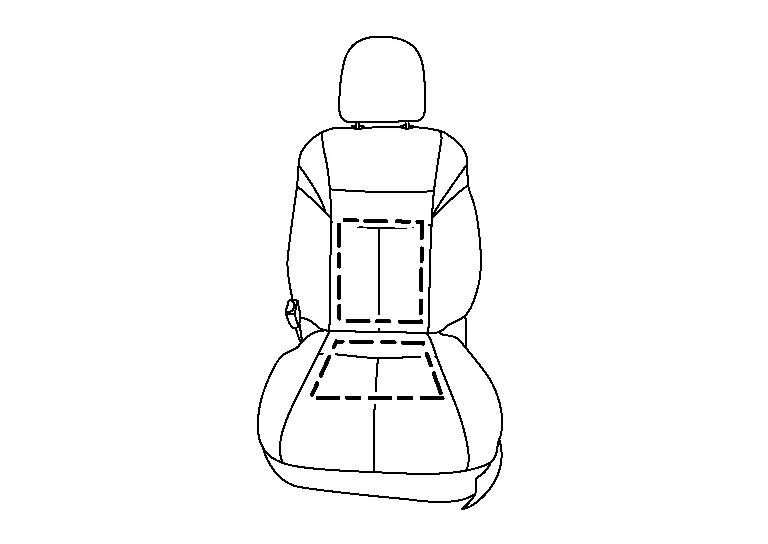

Front seat heater is located inside of front heated seat cushion and seat back.
-
Front seat heater operates with power source provided via front heated seat switch.
-

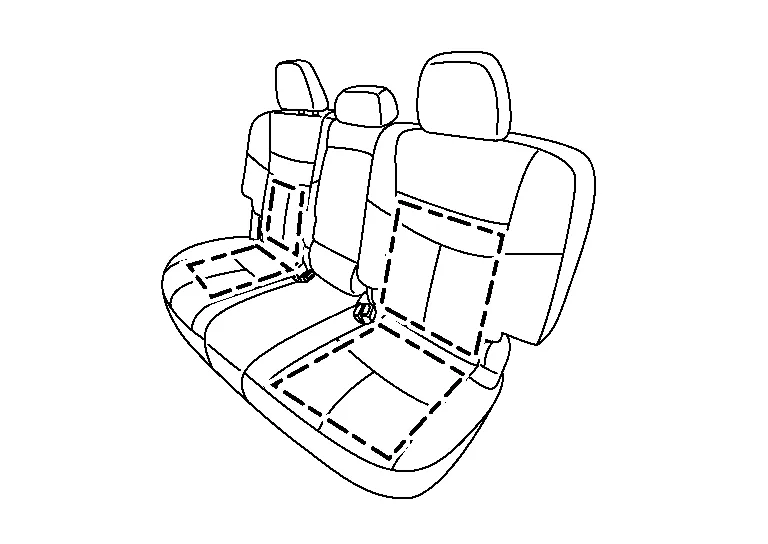

Second row seat heater is located inside of rear seat cushion and seat back.
-
Second row seat heater operates with power source provided via second row heated seat switch.
Lumbar Support System
Component Parts Location
A.
LH side of front seat LH (view with seat removed)
B.
Back side of front seat LH (view with finisher removed)
No. Component Function
1...
System
..
