Nissan Murano: Road Wheels & Tires :: Symptom Diagnosis / Low Tire Pressure Warning Lamp Blinks

Nissan Murano (Z52) 2015-2024 Service Manual / Suspension / Road Wheels & Tires :: Symptom Diagnosis / Low Tire Pressure Warning Lamp Blinks

Diagnosis Procedure

When the ignition switch is placed ON, the low tire pressure warning lamp blinks. And then 1 minute later, low tire pressure warning lamp turns ON.

NOTE:

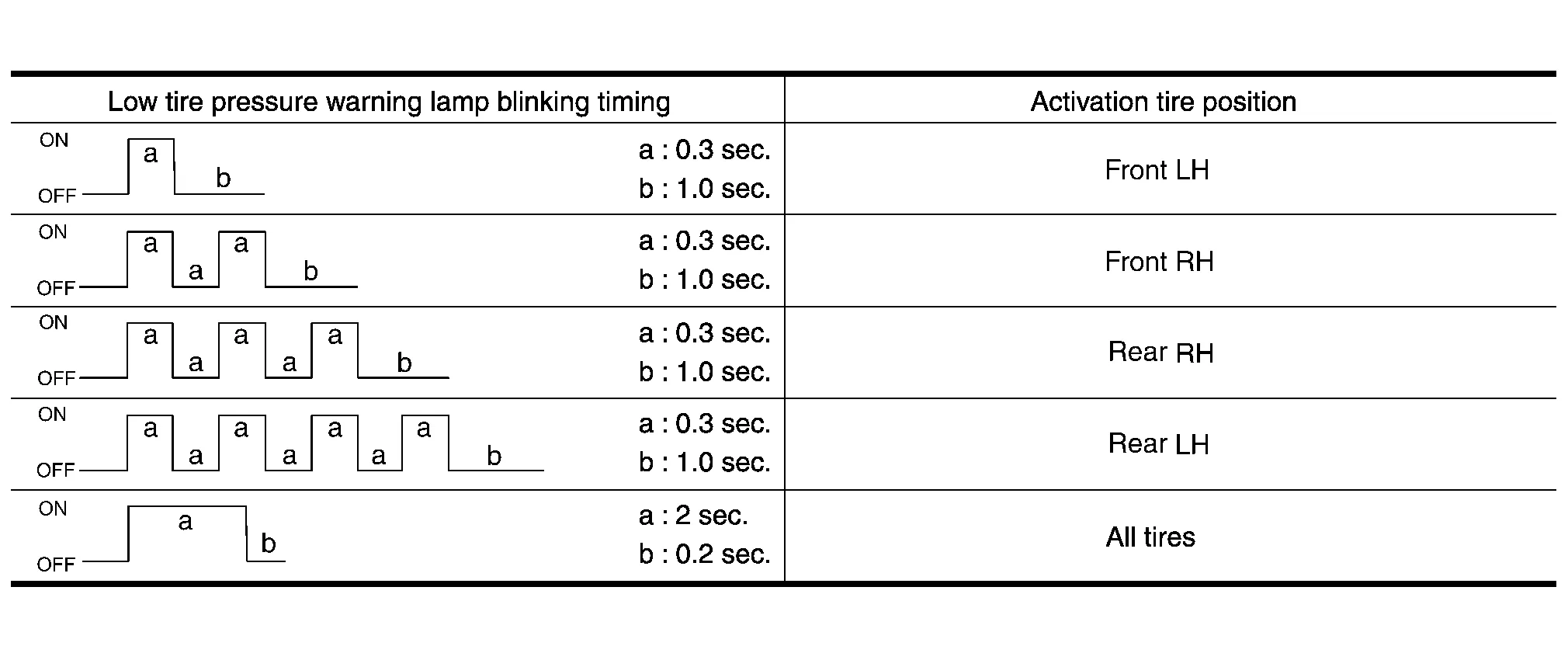

The position of an inactive tire pressure sensor can be identified by checking the blinking timing of the low tire pressure warning lamp.

TIRE PRESSURE SENSOR ID REGISTRATION

Perform tire pressure sensor ID registration. Refer to Work Procedure.

Is tire pressure sensor ID registration completed?

YES>>

Inspection End.

NO>>

Select “Self Diagnostic Result” mode of "BCM(AIR PRESSURE MONITOR)". Refer to DTC Index.
