Nissan Murano: Removal and Installation / License Plate Lamp

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Controls / Exterior Lighting System :: Led Headlamp / Removal and Installation / License Plate Lamp

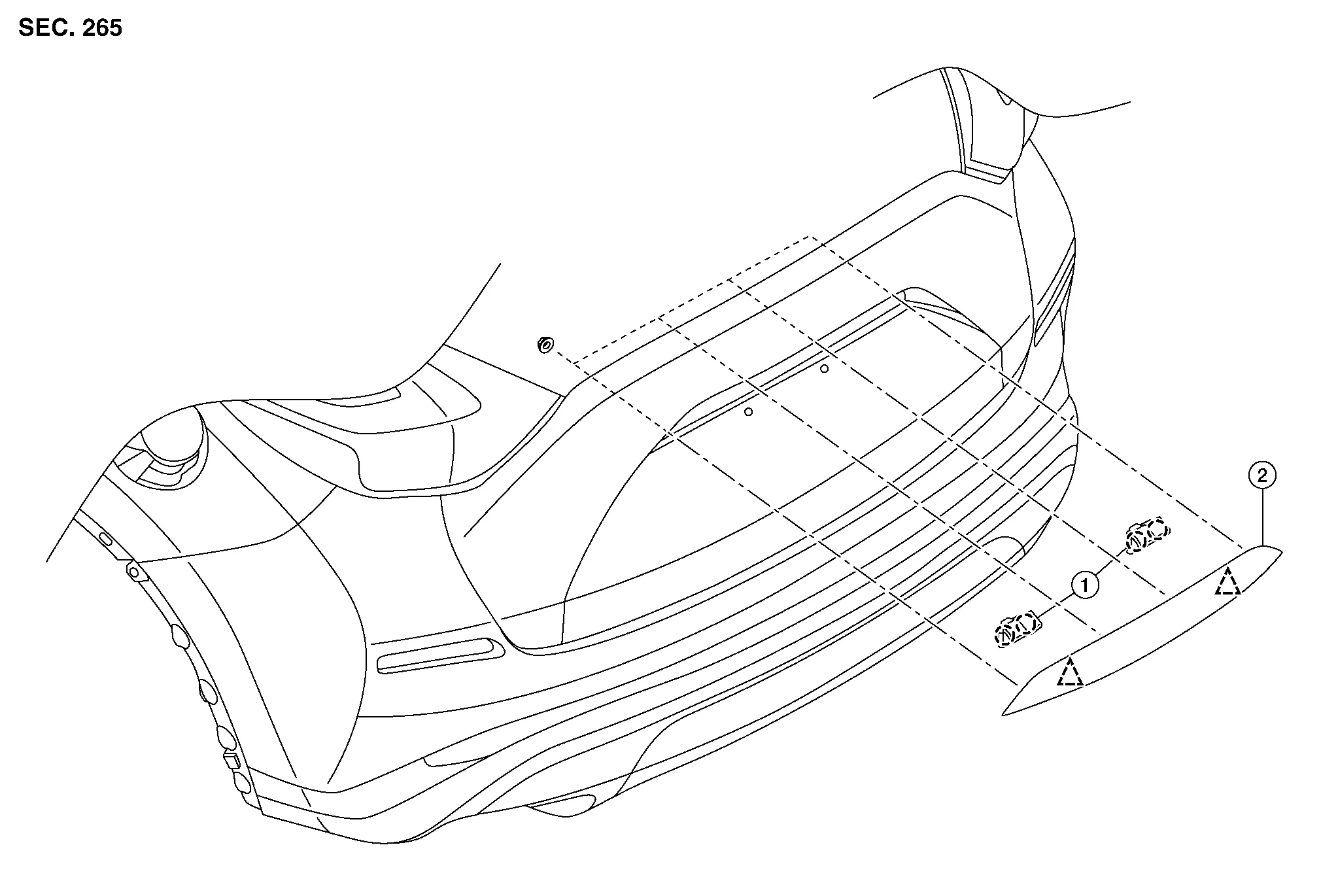

Exploded View

1.	License plate lamp	2.	Back door outer finisher		Clip
	Pawl

Removal and Installation

REMOVAL

Remove back door outer finisher. Refer to Removal and Installation.

Disconnect harness connector from license plate lamp.

Release pawls and push license plate lamp forward.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

WARNING:

Do not touch bulb with your hand while it is on or right after being turned off. Burning may result.

CAUTION:

Do not touch glass surface of bulb with bare hands or allow oil or grease to get on it to prevent damage to bulb.

Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect performance of lamp. When replacing bulb, be sure to replace it with new one.

REMOVAL

Remove back door lower finisher. Refer to Removal and Installation.

Rotate license plate lamp bulb socket counterclockwise and remove.

Remove license plate lamp bulb from bulb socket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installing bulb, install bulb socket securely for watertightness.

High-Mounted Stop Lamp

Exploded View 1. Rear spoiler 2. High-mounted stop lamp A. Harness connector Removal and Installation REMOVALRemove rear spoiler. Refer to Removal and Installation...

Rear Combination Lamp (back Door Side)

Exploded View 1. Rear combination lamp (back door side) A. Harness connector Metal stud Clip Removal and Installation REMOVALRemove back door lower finisher...
