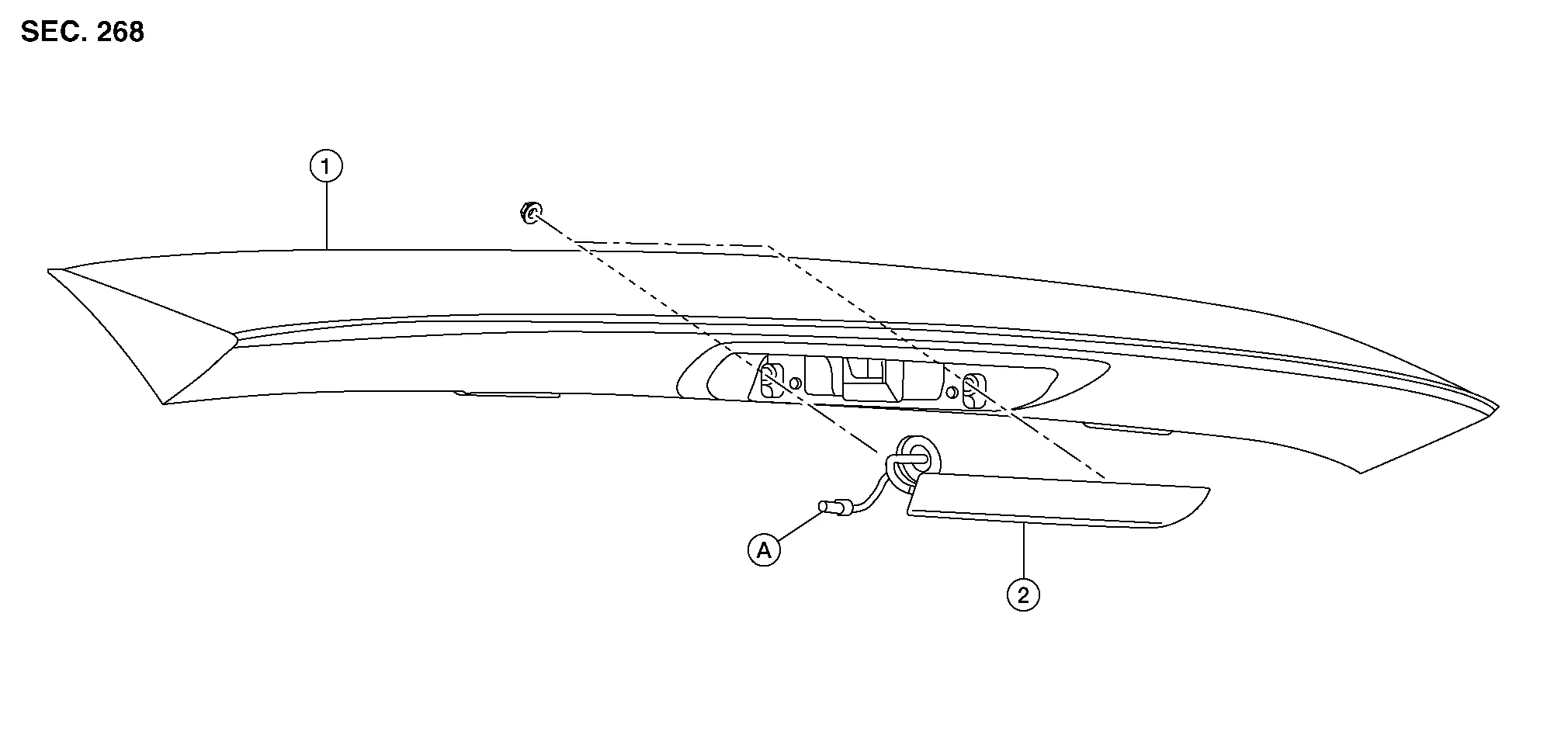

Exploded View

Rear spoiler

High-mounted stop lamp

Harness connector

Removal and Installation

REMOVAL

Remove rear spoiler. Refer to Removal and Installation.

Remove nuts and remove high-mounted stop lamp.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

HIGH-MOUNTED STOP LAMP BULB

The high-mounted stop lamp bulb is LED and not serviced separately. Refer to Removal and Installation.
