Fundamentals of Body Repair

There are many kinds of damage caused by collisions.Therefore, the appropriate repair method for the damage should be selected. This section outlines repair methods of major damage and how to use the main tools.

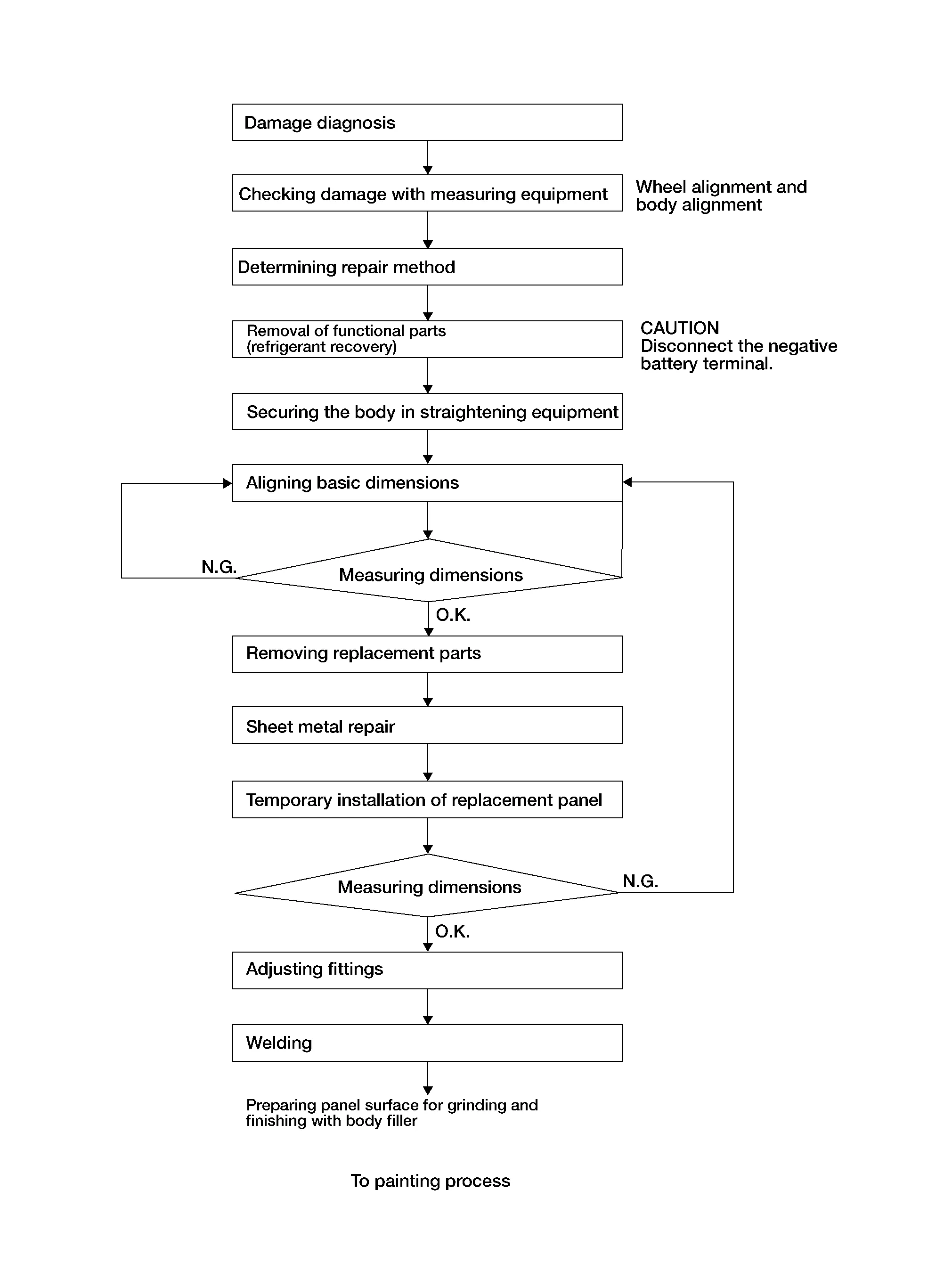

BODY REPAIR FLOWCHART

Repairing Procedures and Precautions

Damage Diagnosis

Damage Diagnosis: Fundamental What is forceForce causes the shape of objects and state of motion to change. Equation that expresses force [F] F= m + a [m: mass in kg, a: rate of acceleration in m/s2] The equation explains the factors that affect the force strength in a collision...
