Nissan Murano: Front Disc Brake / Disc Brake Rotor

Nissan Murano (Z52) 2015-2024 Service Manual / Brakes / Brake System :: Removal and Installation / Front Disc Brake / Disc Brake Rotor

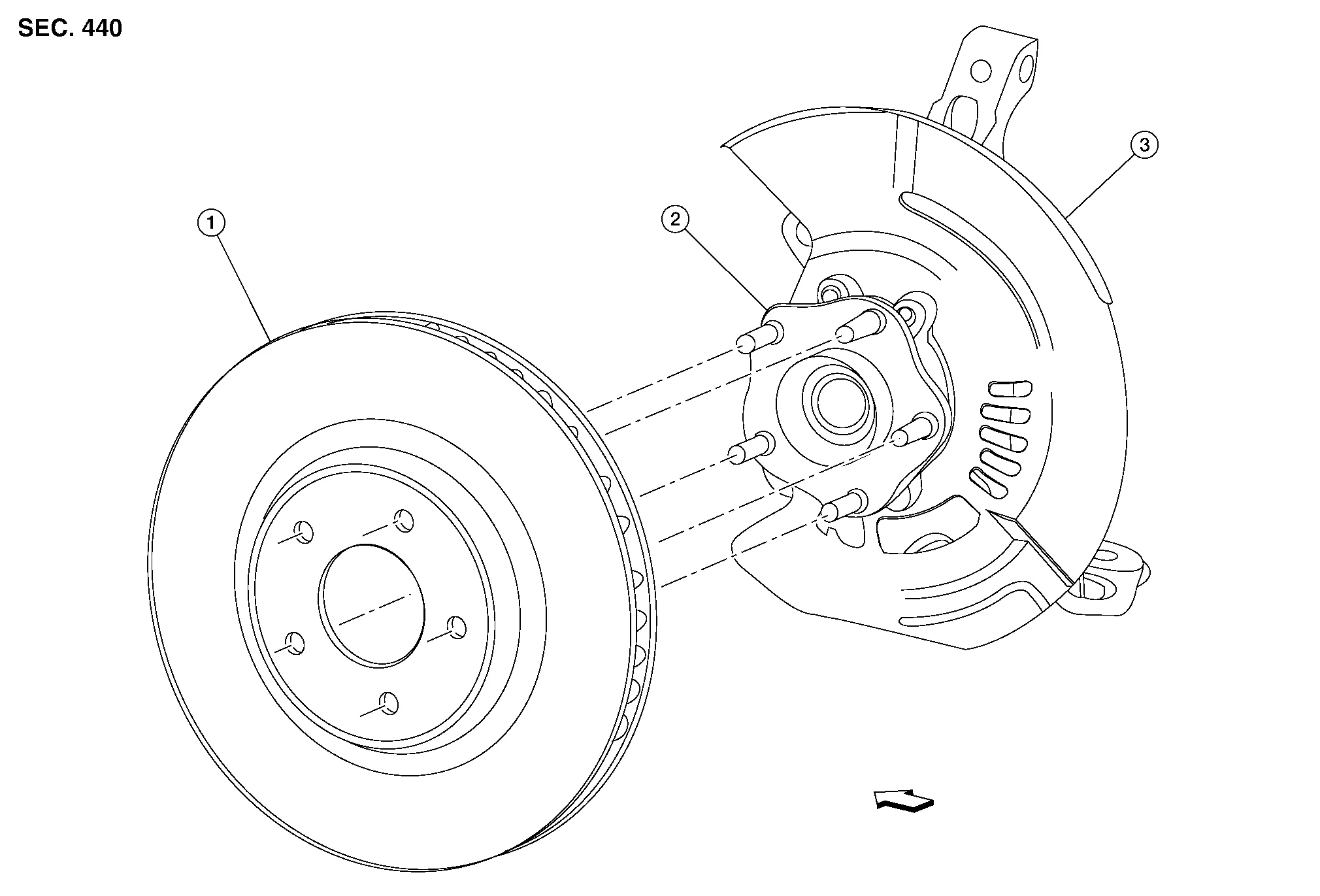

Exploded View

1. Front disc brake rotor 2. Front wheel hub and bearing assembly 3. Splash guard
Front
Removal and Installation

REMOVAL

Remove front wheels and tires using power tool. Refer to Removal and Installation.

Remove front brake caliper torque member bolts. Leaving brake hose attached, reposition brake caliper aside with wire. Refer to Exploded View.

Place alignment marks (A) on front disc brake rotor and wheel hub and bearing, then remove front disc brake rotor.

CAUTION:

Do not drop the disc brake rotor.

INSTALLATION

Installation is in the reverse order of removal.
