Nissan Murano: Structure and Operation / Fluid Cooler Fluid Warmer System

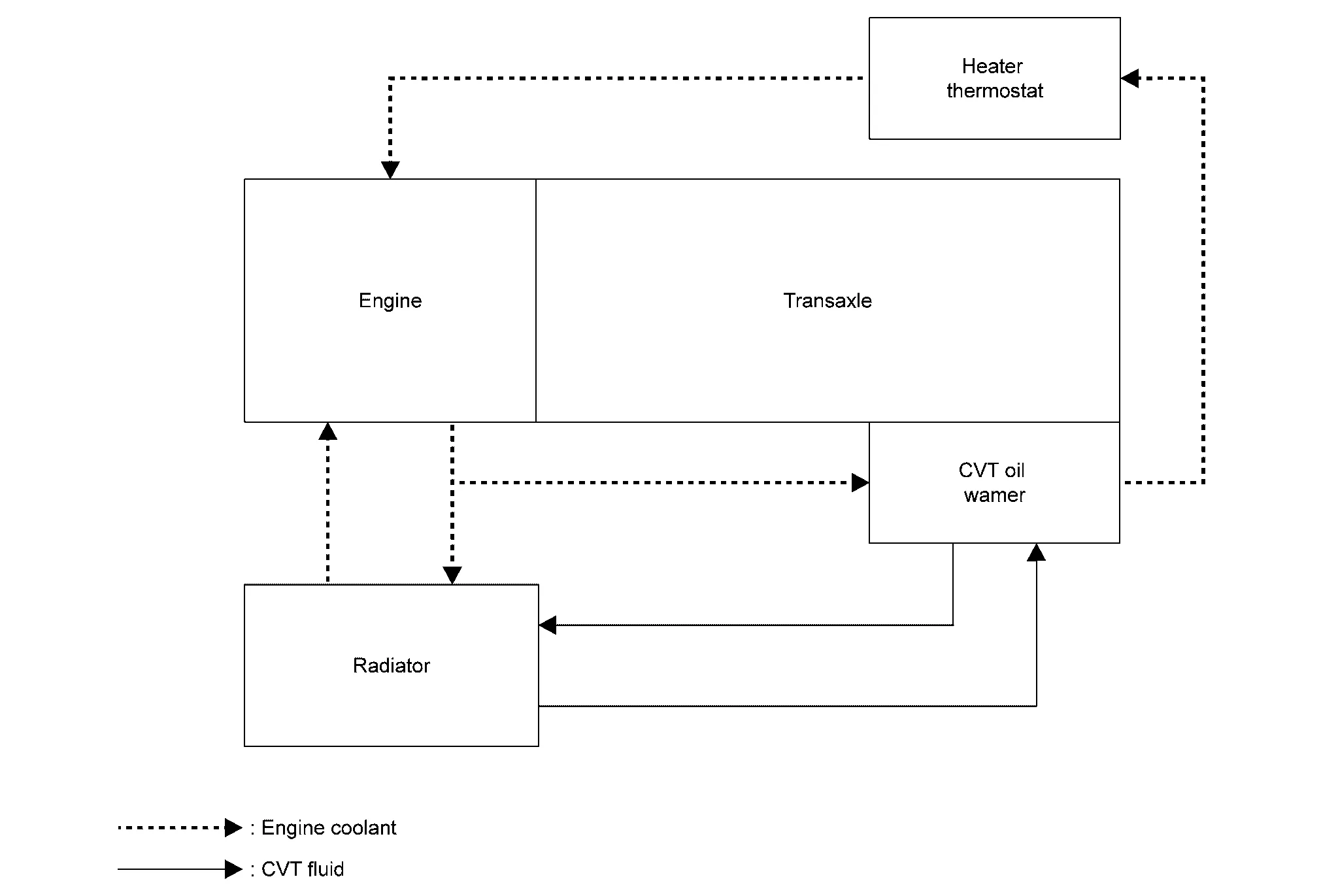

CVT FLUID COOLER SCHEMATIC
COMPONENT DESCRIPTION
CVT Oil Warmer
-

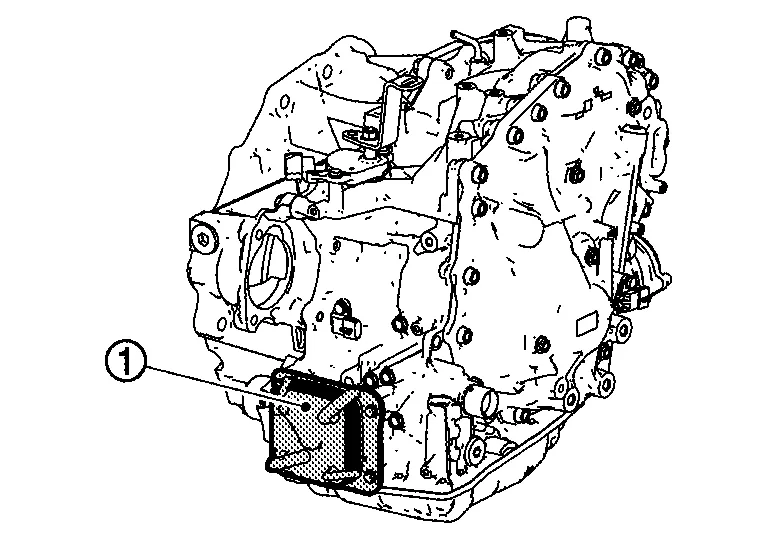

The CVT oil warmer (1) is installed on the front part of transaxle assembly.
-
When engine is started while engine and CVT are cold, engine coolant temperature rises more quickly than CVT fluid temperature. CVT oil warmer is provided with two circuits for CVT and engine coolant respectively so that warmed engine coolant warms CVT quickly. This helps shorten CVT warming up time, improving fuel economy.
-
A cooling effect is obtained when CVT fluid temperature is high.
Heater Thermostat
-
The heater thermostat (1) is installed on the front part of transaxle assembly.
-
The heater thermostat open and close with set temperature.
Transaxle
Cross-Sectional View
Converter housing
Oil pump
Planetary gear
Control valve
Oil pan
Chain belt
Planetary pulley
Secondary pulley
Side cover
Transaxle case
Differential case
Final gear
Reduction gear
Idler gear
Output gear
Drive sprocket
Torque converter
Driven sprocket
Oil pump chain
FWD models
AWD models
Transaxle Mechanism
TORQUE CONVERTER (WITH LOCK-UP FUNCTION)In the same way as a conventional A/T, the torque converter is a system that increases the engine torque and transmits the torque to the transaxle...
Shift Lock System
System Description
The shift selector lever cannot be shifted from the “P” position unless the brake pedal is depressed while the ignition switch is set to ON...
