System Description

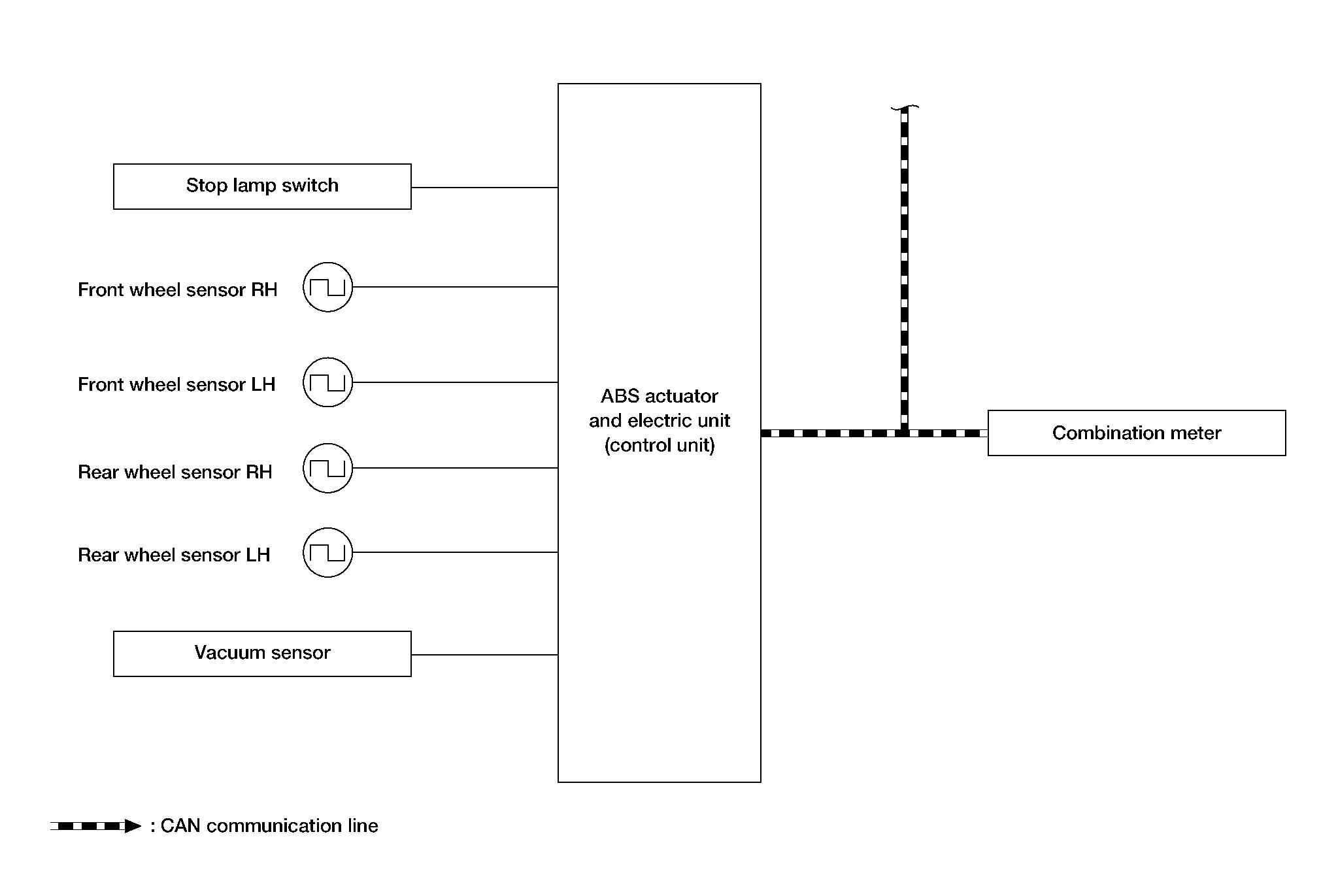

SYSTEM DIAGRAM

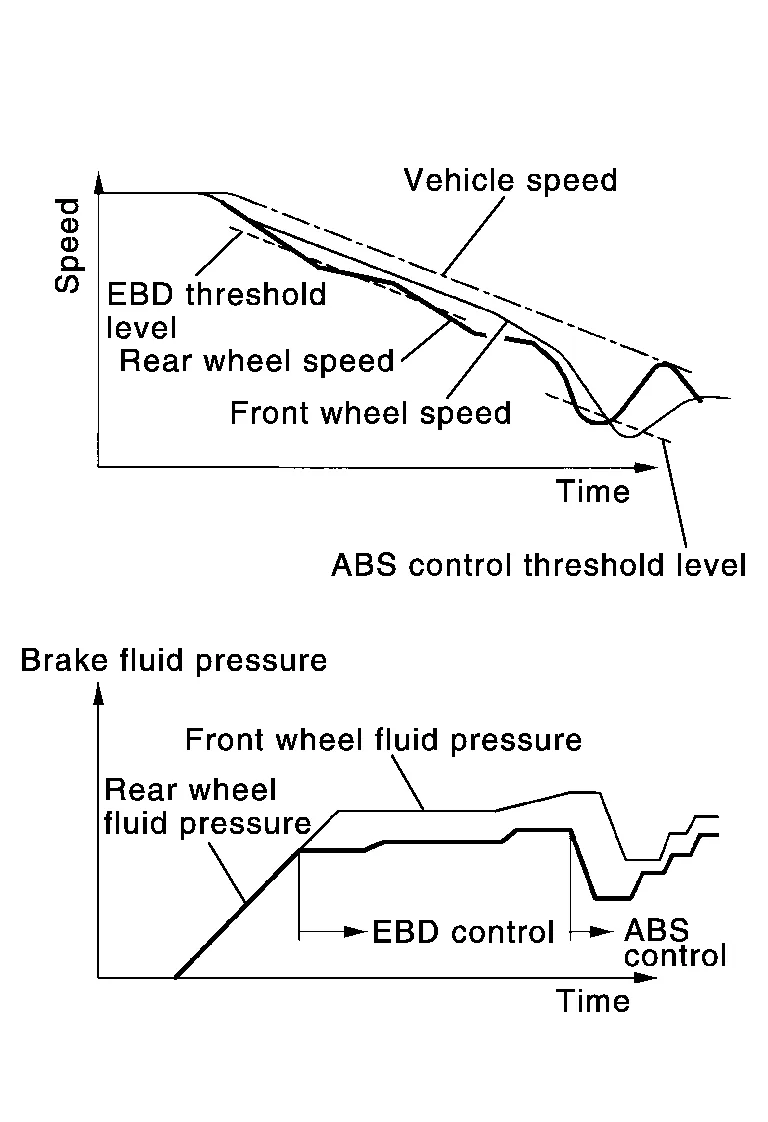

  • By preventing rear wheel slip increase through rear wheel brake force (brake fluid pressure) control that is electronically controlled when slight slip on front and rear wheels is detected during braking, stability during braking is improved.

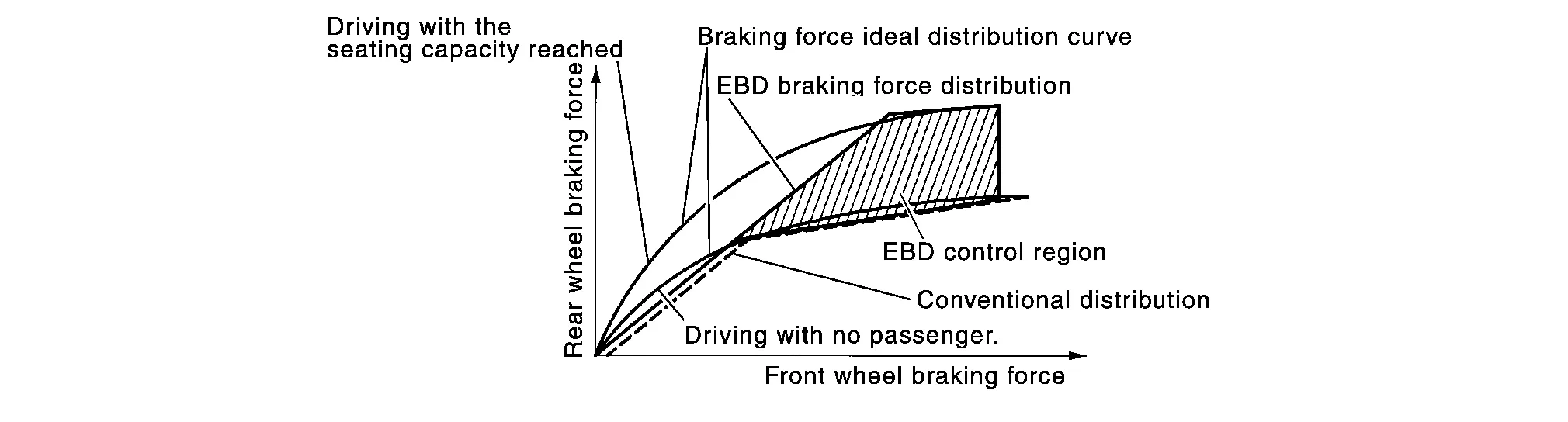

  • EBD function is expanded and developed from conventional ABS function and corrects rear wheel brake force to appropriate level by electronic control according to load weight (number of passengers).

  • During braking, control unit portion compares slight slip on front and rear wheels by wheel speed sensor signal, transmits drive signal to actuator portion when rear wheel slip exceeds front wheel slip for the specified value or more, and controls rear wheel brake force (brake fluid pressure) so that increase of rear wheel slip is prevented and slips on front wheel and rear wheel are nearly equalized. ABS control is applied when slip on each wheel increases and wheel speed is the threshold value of ABS control or less.

  • CONSULT can be used to diagnose the system diagnosis.

  • Fail-safe function is adopted. When a malfunction occurs in EBD function, the control is suspended for VDC function, TCS function, ABS function, EBD function, brake assist function and hill start assist function. The Nissan Murano vehicle status becomes the same as models without VDC function, TCS function, ABS function, EBD function, brake assist function and hill start assist function. Refer to Fail-Safe.

SIGNAL TRANSMISSION FUNCTION LIST

Major signal transmission between each unit via communication lines is shown in the following table:

Component Signal description
Combination meter

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:

  • VDC warning lamp signal

  • ABS warning lamp signal

  • Brake warning lamp signal

    Abs Function

    System Description SYSTEM DIAGRAM By preventing wheel lock through brake force (brake fluid pressure) control that is electronically controlled by detecting wheel speed during braking, stability during emergency braking is improved so that obstacles can be easily bypassed by steering operation...

    Brake Assist Function

    System Description SYSTEM DIAGRAM When the driver brakes hard in an emergency, the stopping distance is reduced by increasing brake fluid pressure. Fail-safe function is adopted...
