System Description

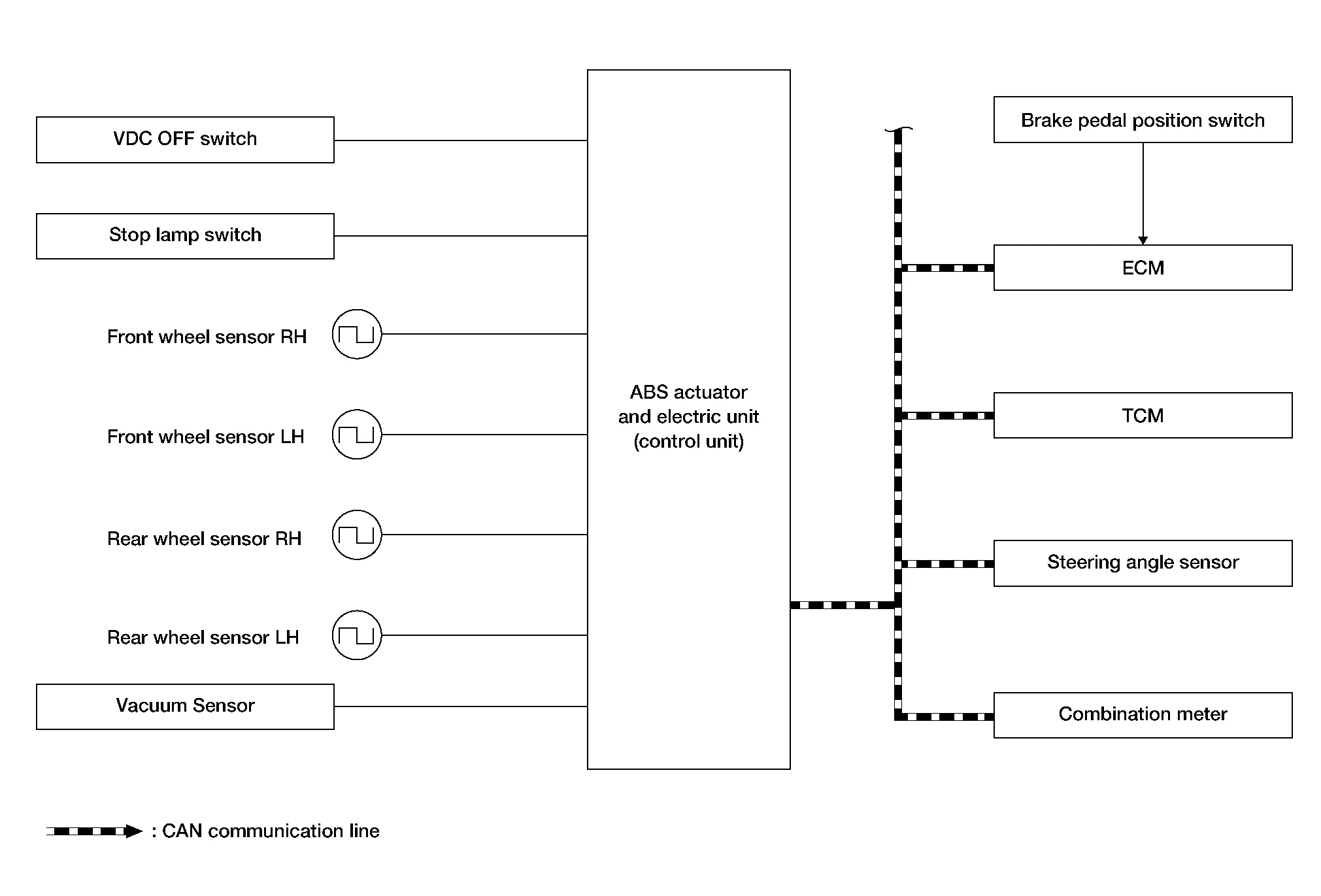

SYSTEM DIAGRAM

When the driver brakes hard in an emergency, the stopping distance is reduced by increasing brake fluid pressure.
Fail-safe function is adopted. When a malfunction occurs in brake assist function, the control is suspended for VDC function, TCS function, brake assist function and hill start assist function. The Nissan Murano vehicle status becomes the same as models without VDC function, TCS function, brake assist function and hill start assist function. However, ABS function and EBD function are operated normally. Refer to Fail-Safe.

SIGNAL TRANSMISSION FUNCTION LIST

Major signal transmission between each unit via communication lines is shown in the following table:

Component	Signal description
ECM	Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN communication: Accelerator pedal position signal Brake pedal position signal Engine speed signal Engine torque signal Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN communication: Engine torque request signal
TCM	Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN communication: Current gear position signal
Combination meter	Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication: Brake fluid level switch signal Parking brake switch signal Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication: VDC warning lamp signal VDC OFF indicator lamp signal
Steering angle sensor	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Steering angle sensor signal Steering angle sensor malfunction signal
