Nissan Murano: Rear Door Lock / Door Lock

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Door & Lock :: Removal and Installation / Rear Door Lock / Door Lock

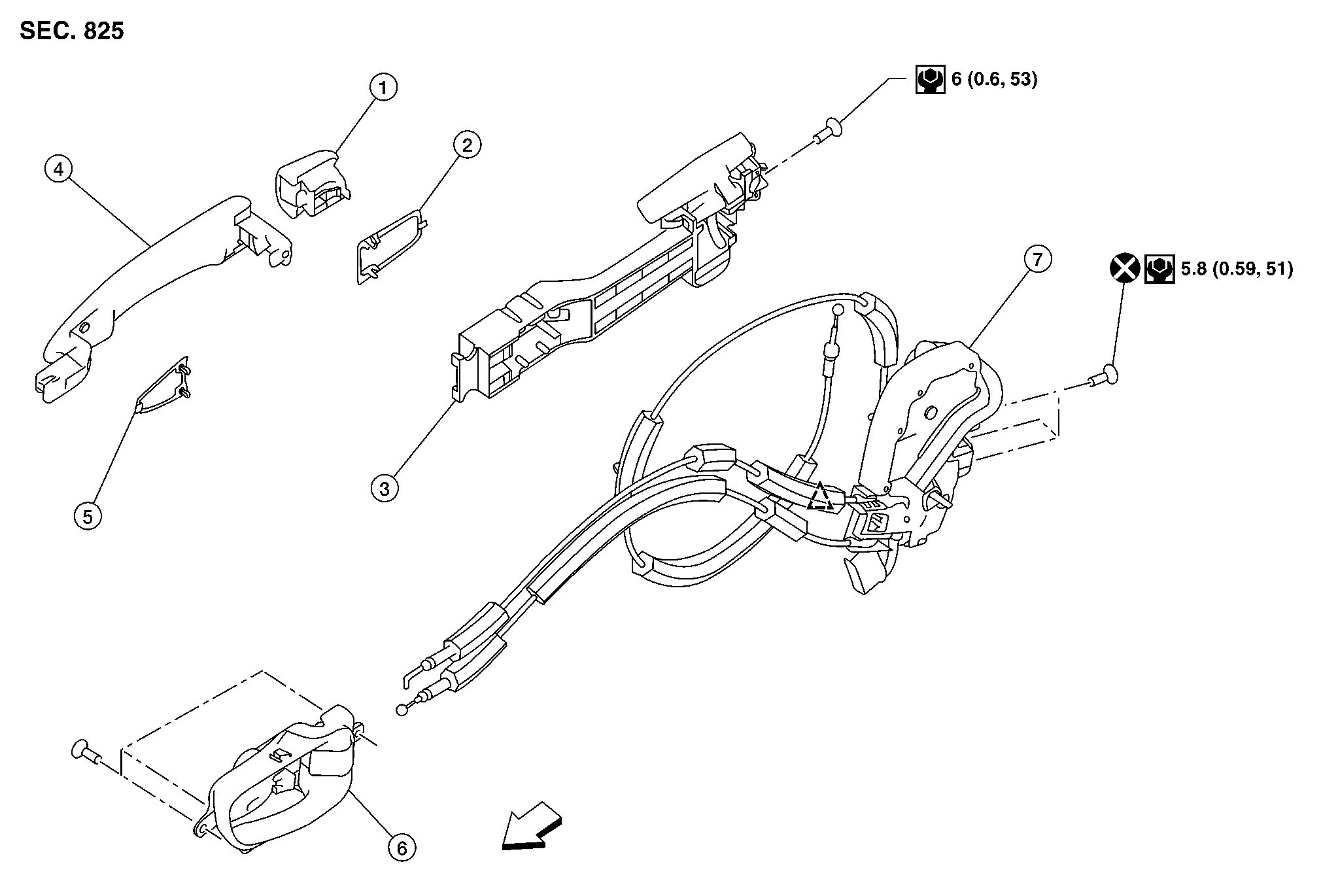

Exploded View

1.	Outside handle escutcheon	2.	Rear gasket	3.	Outside handle bracket
4.	Outside handle	5.	Front gasket	6.	Inside door handle
7.	Rear door lock		Front		Clip

Removal and Installation

REMOVAL

Remove the rear door outside handle. Refer to Removal and Installation.

Remove the rear door lock bolts.

Disconnect rear door lock cables from inside handle.

Disconnect the harness connector from the rear door lock and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse rear door lock bolts.

Tighten bolts to specification. Refer to Exploded View.

After installation, check that door lock cables are properly engaged to inside handle and outside handle.

After installation, check door open/close and lock/unlock operation.

Rear Door Lock

Inside Handle
