Nissan Murano: Rear Door / Door Assembly

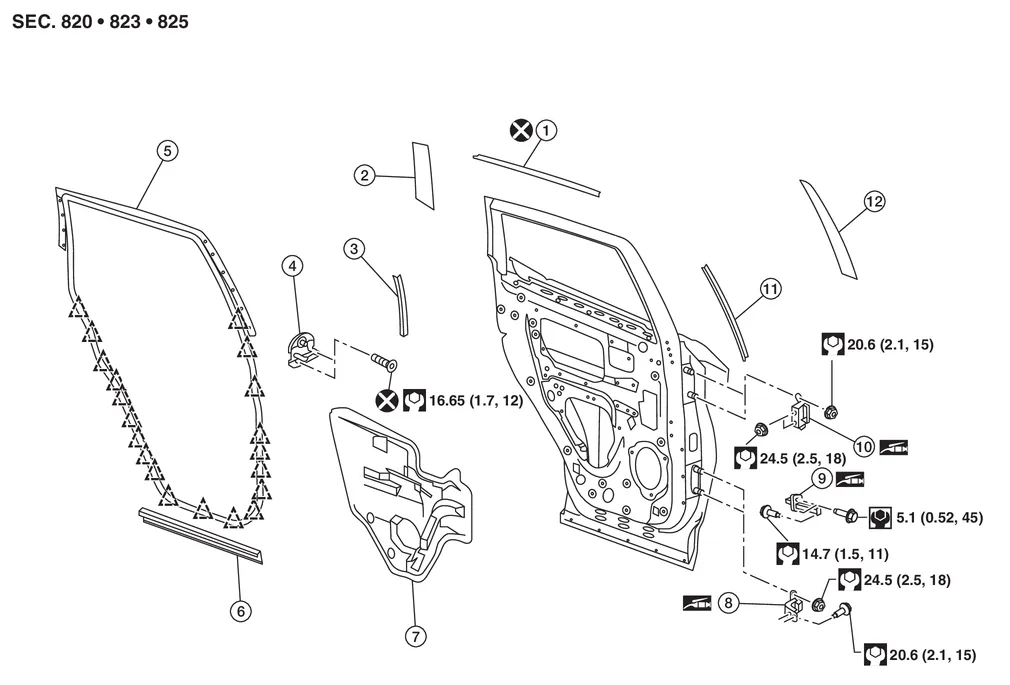

Exploded View

1.	Rear door sash	2.	Rear door outside rear tape	3.	Rear door sash rear tape
4.	Rear door striker	5.	Rear door weather strip	6.	Rear door seal
7.	Vapor barrier	8.	Rear door lower hinge	9.	Rear door check link
10.	Rear door upper hinge	11.	Rear door sash front tape	12.	Rear door outside front tape
	Clip

CAUTION:

• Use two people when removing or installing rear door due to its heavy weight.

• When removing and installing rear door assembly, support rear door using a suitable tool.

REMOVAL

Remove rear door finisher. Refer to Removal and Installation.

Remove rear door vapor barrier.

Disconnect the harness connectors from the rear door.

Remove harness grommet from rear door then pull out rear door harness from rear door.

Remove rear door check link bolt (body side).

Remove rear door hinge nuts (door side) and rear door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten nuts/bolts to specification. Refer to Exploded View.

• Apply anticorrosive agent where necessary.

• After installation, check rear door open/close and lock/unlock operation.

• After installation, perform rear door adjustment procedure. Refer to Adjustment.

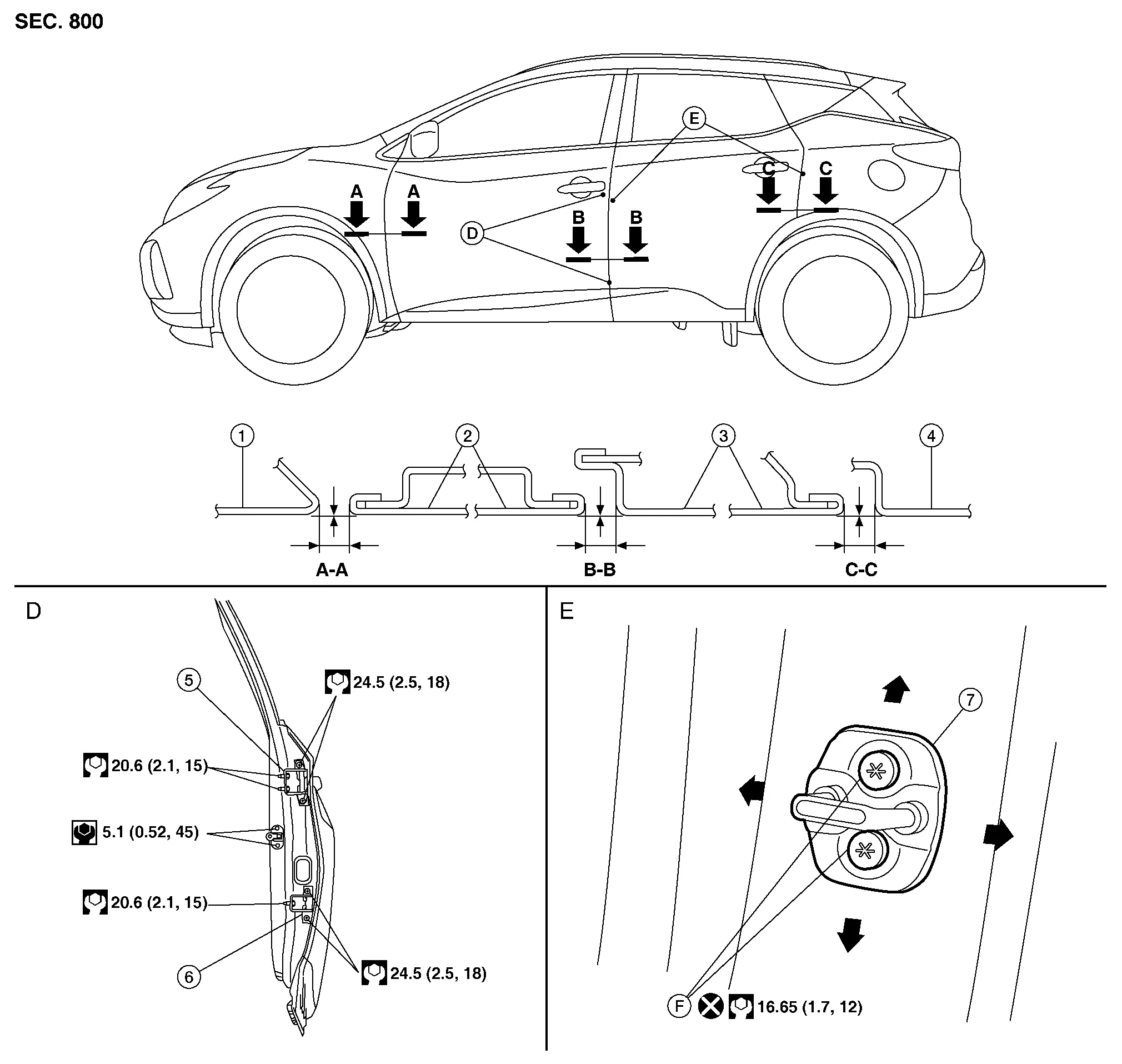

Check clearance and surface height between rear door and each part by visual inspection and tactile feel.

If clearance and surface height are out of specification, adjust them according to adjustment procedures.

Unit: mm (in)

Remove center pillar lower finisher. Refer to Removal and Installation.

Loosen rear door hinge nuts (door side).

Adjust surface height of rear door according to specifications provided.

Temporarily tighten rear door hinge nuts (door side).

Loosen rear door hinge nuts and bolts (body side).

Raise rear door at rear end to adjust clearance of rear door according to specifications provided.

After adjustment, tighten bolts and nuts to specified torque.

CAUTION:

• Check rear door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-purpose grease.

• After adjusting, apply touch-up paint (body color) to heads of rear door hinge bolts and nuts.

Install center pillar lower finisher. Refer to Removal and Installation.
