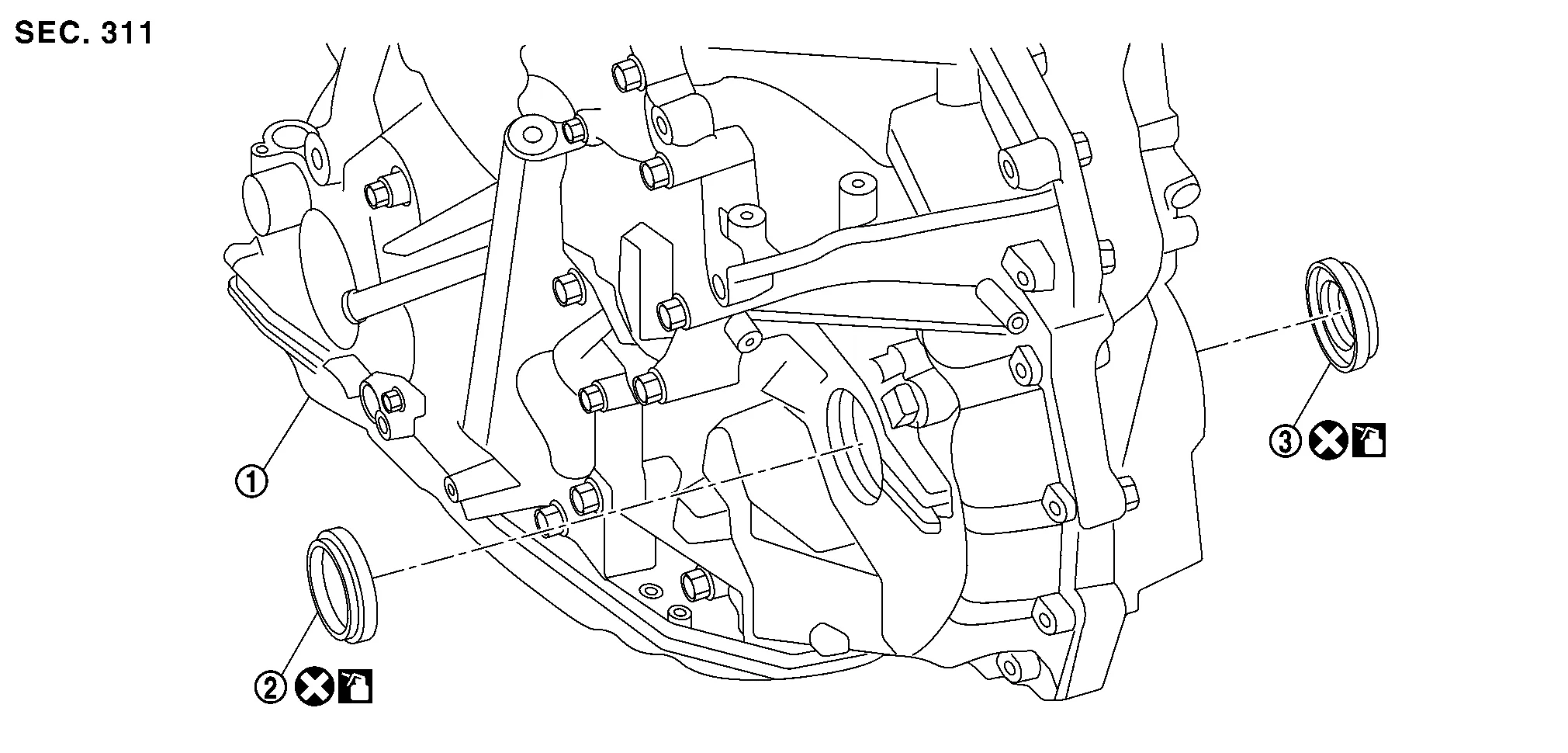

Exploded View

1.	Transaxle assembly	2.	Differential side oil seal (left side)	3.	Differential side oil seal (right side) (FWD models only)
	: Apply CVT fluid

Removal and Installation

REMOVAL

Remove front drive shaft. Refer to Removal and Installation (LH) (LH) or Removal and Installation (RH) (RH).

Remove differential side oil seal (1) using suitable Tool (A).

CAUTION:

Be careful not to scratch transaxle case and converter housing.

INSTALLATION

Note the following and install in the reverse order of removal.

CAUTION:

Never reuse differential side oil seal.

Apply CVT fluid to differential side oil seals.

When inserting the drive shaft, be sure to use protector on differential side oil seal. Refer to Removal and Installation (LH) (LH) or Removal and Installation (RH) (RH).

Install each differential side oil seal evenly using following Tools.

Tools to be used:

Location	Special Service Tools
Transaxle case side	Output seal installer (case side) [SST: KV31500800 (J-52283)] Universal driver handle [SST: ST35325000 (J-8092)]
Converter housing side	Output seal installer (torque converter side) [SST: KV31500900 (J-52284)] Universal driver handle [SST: ST35325000 (J-8092)]

Inspection and Adjustment

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to Inspection.

ADJUSTMENT AFTER INSTALLATION

Adjust CVT fluid level. Refer to Adjustment.
