Nissan Murano: Srs Air Bag Control System :: Basic Inspection / Diagnosis and Repair Work Flow

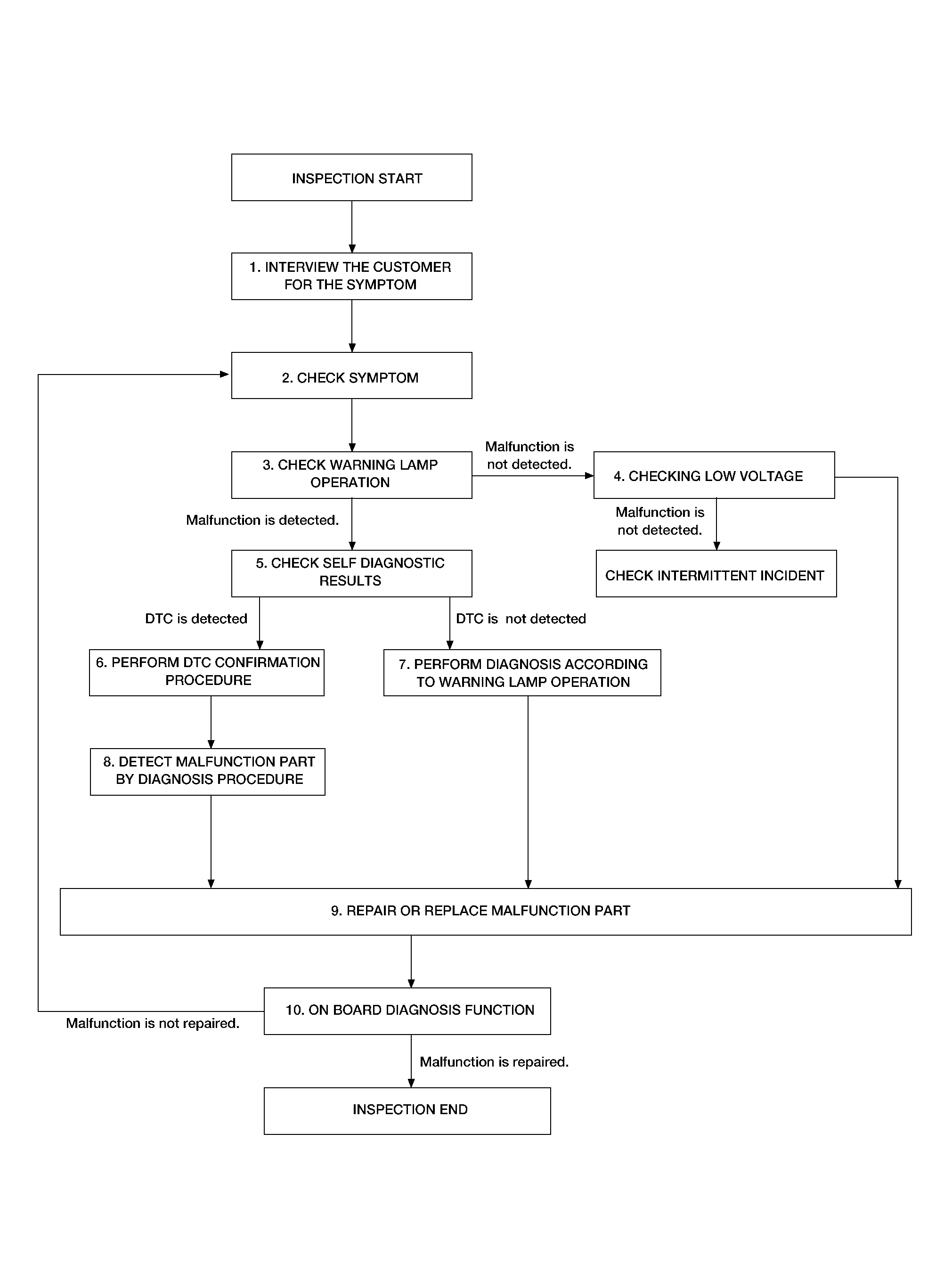

OVERALL SEQUENCE
DETAILED FLOW
INTERVIEW THE CUSTOMER FOR THE SYMPTOM
Interview the customer for the symptom (the condition and the environment when the incident/malfunction occurs).
>>
GO TO 2.
CHECK SYMPTOM
Check the symptom from the customer information.
>>
GO TO 3.
CHECK WARNING LAMP OPERATION
Check air bag warning lamp operation in the user mode.
Are any malfunctions detected?
YES>>GO TO 5.
NO>>GO TO 4.
CHECK LOW VOLTAGE
CONSULT
Check low voltage.
Are any malfunctions detected?
YES>>GO TO 9.
NO>>Check intermittent incident. Refer to Intermittent Incident.
CHECK SELF DIAGNOSTIC RESULT
CONSULT
Check “Self Diagnostic Result” or diagnosis mode.
If it is impossible to switch to diagnosis mode, follow the same procedure that DTC is not detected.
NOTE:
Perform the following procedure if DTC is detected:
-
Record DTC. (Print them out.)
-
Erase “Self Diagnostic Result”.
-
Study the relationship between the malfunction that DTC or air bag warning lamp indicates and the symptom that the customer describes.
-
Check related service bulletins for information.
Is DTC detected?
YES>>GO TO 6.
NO>>GO TO 7.
PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC CONFIRMATION PROCEDURE for the DTC.
>>
GO TO 8.
PERFORM DIAGNOSIS ACCORDING TO WARNING LAMP OPERATION
-
Check air bag warning lamp operation in the user mode.
-
Perform Diagnosis Procedure for the air bag warning lamp operation.
>>
GO TO 9.
DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the DTC.
>>
GO TO 9.
REPAIR OR REPLACE THE MALFUNCTION PART
Repair or replace the malfunctioning part.
>>
GO TO 10.
ON BOARD DIAGNOSIS FUNCTION
Check “Self Diagnostic Result” and air bag warning lamp operation in the user mode.
Is the malfunction repaired?
YES>>Inspection End.
NO>>GO TO 2.
