Nissan Murano: Inside Key Antenna / Console

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Door & Lock :: Removal and Installation / Inside Key Antenna / Console

Removal and Installation

REMOVAL

Remove center console rear finisher. Refer to Removal and Installation.

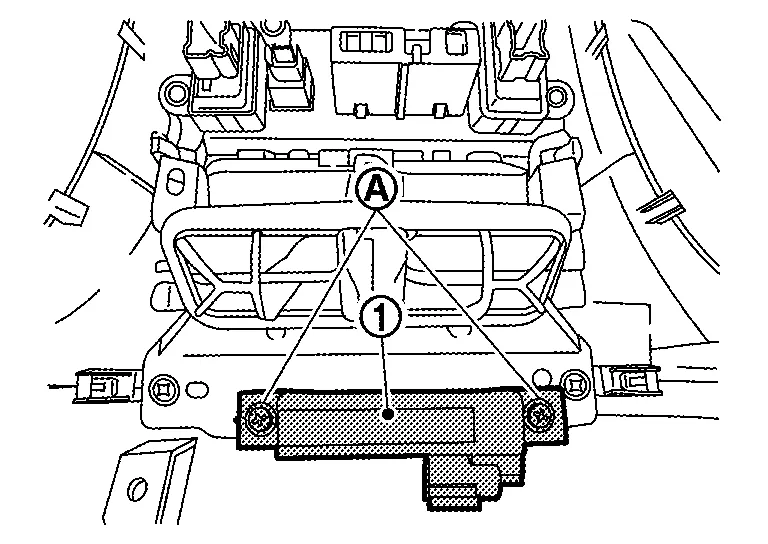

Remove screws (A), and then remove inside key antenna [console (1)].

INSTALLATION

Installation is in the reverse order of removal.
