Nissan Murano: Interior Lighting System :: System Description / Component Parts. Interior Room Lamp Control System

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Controls / Interior Lighting System :: System Description / Component Parts. Interior Room Lamp Control System

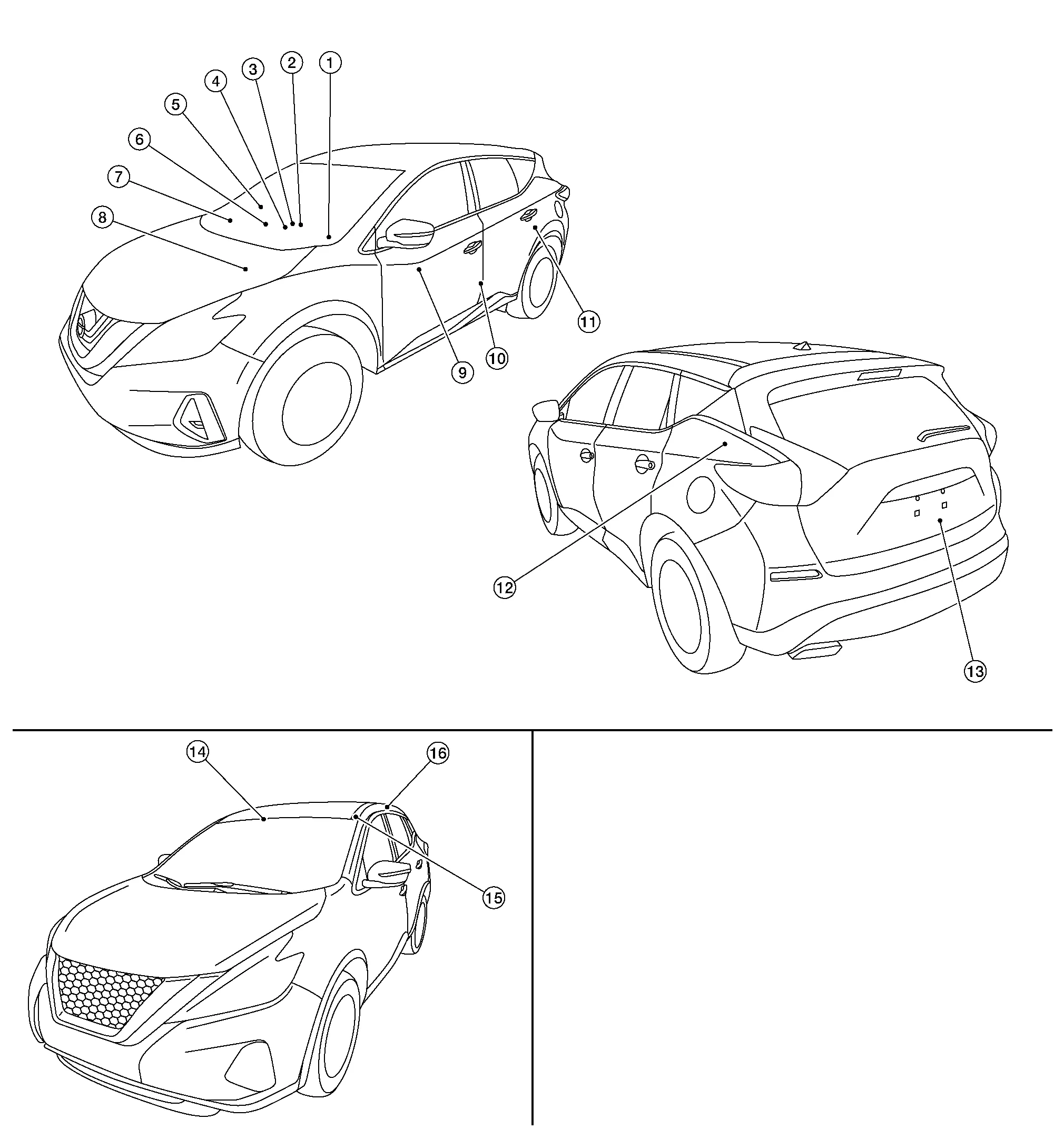

Component Parts Location

No.	Component	Function
1.	Meter control switch	Transmits the meter control switch signal to the combination meter. Refer to Meter Control Switch for detailed component location.
2.	BCM (Body Control Module)	Activates the interior room lamp timer depending on the Nissan Murano vehicle condition to turn the interior room lamps ON/OFF. Operates the interior room lamp battery saver depending on the Nissan Murano vehicle condition to turn interior room lamps OFF. Detects each switch condition by the combination switch reading function. Judges the illumination lamp ON/OFF status depending on the Nissan Murano vehicle condition. And then transmits request signal to the IPDM E/R and combination meter via CAN communication. Refer to System Description.
3.	Combination meter	Controls the meter illumination according to the request signal from the BCM via CAN communication. Refer to Combination Meter for detailed component location.
4.	Combination switch (lighting and turn signal switch)	Transmits the combination switch signal to the BCM. Refer to System Description.
5.	Power window and door lock/unlock switch RH	Transmits the door lock/unlock switch signal to the BCM via LIN communication. Refer to Power Window And Door Lock/Unlock Switch RH for detailed component location.
6.	Push-button ignition switch	Push-button ignition switch illumination is activated/deactivated by the BCM. Refer to Push-Button Ignition Switch for detailed component location.
7.	Remote keyless entry receiver	Transmits the lock/unlock signal to the BCM. Refer to Remote Keyless Entry Receiver for detailed component location.
8.	IPDM E/R (Intelligent Power Distribution Module Engine Room)	Controls the integrated relay according to the request signal from the BCM via CAN communication. Refer to System Description.
9.	Main power window and door lock/unlock switch	Transmits the door lock/unlock switch signal to the BCM via LIN communication. Refer to Main Power Window And Door Lock/Unlock Switch for detailed component location.
10.	Front door switch LH (RH similar)	Transmits the door switch signal to the BCM. Refer to Front Door Switch for detailed component location.
11.	Rear door switch LH (RH similar)	Transmits the door switch signal to the BCM. Refer to Rear Door Switch for detailed component location.
12.	Luggage room lamp	Refer to Bulb Specifications.
13.	Back door lock assembly (door ajar switch)	Transmits the door ajar switch signal to the BCM. Refer to Back Door Lock Assembly for detailed component location.
14.	Front room/map lamp assembly	Refer to Bulb Specifications.
15.	Vanity lamp LH (RH similar)	Refer to Bulb Specifications.
16.	Personal lamp 2nd row LH (RH similar)	Refer to Bulb Specifications.
